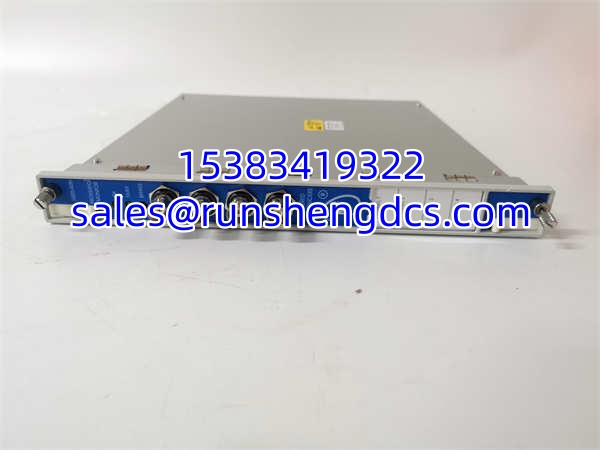

Bently Nevada 3500/40M | 4-Ch Proximitor Monitor, Surplus Stock

Description

Key Technical Specifications

Product Introduction

You pull a 3500/40M off the shelf, plug it into the rack, and expect it to just work. Then the rack throws a fault because you forgot that 176449-01 is only half the module — the rear I/O board (125680-01) is a separate piece that mates to the backplane. This kind of mistake costs downtime on a critical machine.

The 3500/40M is Bently Nevada’s 4-channel eddy current proximity monitor, sitting inside the 3500 machinery protection framework. It accepts inputs from Bently proximity probe systems (typically 3300 XL series), processes those signals into vibration, displacement, and position measurements, then compares each channel against user-programmable alert and danger setpoints. Channels are configured in pairs — Ch 1 and 2 handle one monitoring function, Ch 3 and 4 handle another (or the same). Supported functions include radial vibration, thrust position, differential expansion, eccentricity, and REBAM. The module stores its configuration in non-volatile memory and supports hot-swap replacement without powering down the rack.

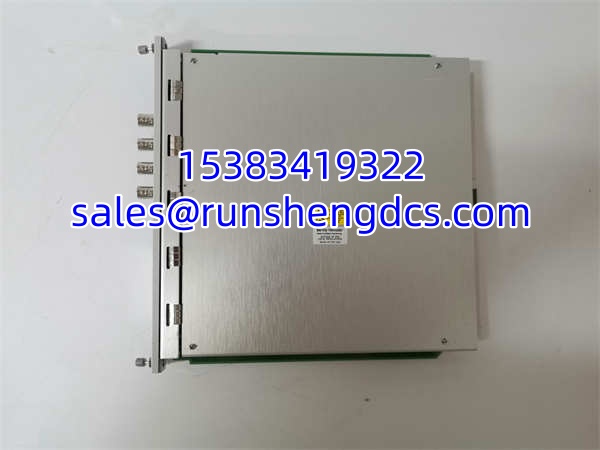

Bently 3500/40M 176449-01

QA/QC Transparency SOP

Here is how we verify a surplus or pulled 3500/40M before it ships:

1. Intake & Origin Verification — Confirm the front panel is stamped 176449-01 and the rear I/O board reads 125680-01. Check the Bently Nevada label for date code and serial number. Inspect both PCBs for corrosion, cracked solder joints near the coax connectors, or heat damage on voltage regulators.
2. Live Functional Testing — Install the module into a powered 3500/05 rack with a valid 3500/15 power supply and 3500/22M TDI module. Connect a laptop running 3500 Rack Configuration Software. Verify the module appears in the rack inventory, the OK LED is solid green, and TX/RX LED blinks during communication. Confirm no fault codes appear in the software.
3. Electrical Parameter Tests — Measure sensor supply voltage at each channel’s coax output — must read -24 VDC ± tolerance. Use a megger to check insulation resistance between sensor inputs and chassis ground. Verify continuity on all rear I/O terminal connections.
4. Firmware/Config Verification — Read the module firmware revision through the configuration software. Back up any existing configuration. Confirm the firmware version is compatible with the target rack’s TDI module revision. Mismatched firmware between the 3500/40M and the 3500/22M can cause communication timeouts.
5. Final QC & Anti-Static Packaging — Clear test configurations. Install connector protectors on all coax ports. Package in anti-static shielding bag with foam cushioning. Include a test report documenting LED status, sensor voltage readings, and firmware revision.

Field Engineer Gotchas

• 176449-01 Is Not the Complete Module — This is the single most common procurement mistake. 176449-01 is the front panel board. The rear I/O module (125680-01) is a separate part. If your supplier only ships 176449-01, you cannot install it. Always confirm you are receiving both boards as a matched set, or order the complete module by its system part number (e.g., 3500/40-01-00).
• I/O Module Suffix Mismatch — The rear I/O module suffix determines terminal type: -01 has internal terminals, -02 has external terminals, -03 has internal safety barriers with internal terminals, -04 has external terminals for TMR displacement I/O. Swapping an -01 for a -02 without rewiring the field cables will leave you with open circuits. Check your existing backplane wiring before ordering.
• SIL vs. Non-SIL Versions — The standard 3500/40-01-00 and the SIL-rated 3500/40_SIL-01-00 look identical on the outside. If your safety case requires SIL 2 compliance, a standard module will not satisfy the requirement even though it may function identically in basic monitoring. Verify the SIL marking on the module label.
• Probe Sensitivity Configuration — The module must be configured to match the sensitivity of the installed probe system (3.94 mV/μm vs. 7.87 mV/μm for 8mm vs. 11mm probes). If someone swaps in a replacement module without reconfiguring the sensitivity setting, your vibration readings will be off by a factor of two. This is a silent error — no alarms, just wrong data until the machine trips on a real event.
• Hot-Swap Does Not Mean “No Thought Required” — The 3500/40M supports hot-swap, but pulling a module under load can cause a brief loss of monitoring on those channels. On a machine running near alarm limits, that brief gap can be enough to miss a transient event. Coordinate with operations before pulling any monitor module from a live rack.

Bently 3500/40M 176449-01

Application Scenarios

• Steam Turbine Bearing Protection — Installed in the 3500 rack monitoring radial vibration at each journal bearing. The paired channel configuration lets one pair monitor bearing #1 X-Y vibration while the other pair handles bearing #2 X-Y, all from a single module slot.
• Centrifugal Compressor Thrust Monitoring — Channels configured for axial displacement measurement using 3300 XL 11mm probes. The differential expansion function tracks rotor growth relative to the casing during startup transients.
• Gas Turbine Eccentricity During Coastdown — After a gas turbine trip, the 3500/40M monitors shaft bow (eccentricity) during the coastdown period to ensure the rotor is not bending before the next start attempt.
• REBAM on Rolling Element Bearings — Configured for rolling element bearing acceleration measurement on gearboxes or pumps where traditional vibration probes are impractical.

Field Case (Anonymized): A refinery’s main air compressor tripped on high vibration at bearing #3. The 3500/40M showed sustained readings above the danger setpoint. Maintenance pulled the module for bench testing and found Channel 3’s coax buffer output was reading 0 VDC — the internal buffer amplifier had failed open. The probe and cable tested fine. The root cause was a power supply transient that had killed the buffer IC on that channel while leaving the alarm logic intact (the module was still comparing the last valid reading against setpoints). Replacing the 3500/40M restored full monitoring. The old module was scrapped — no point repairing a safety-critical board with a latent failure history.

FAQ

Is 176449-01 the complete 3500/40M module?
No. 176449-01 is the front panel board part number. The complete module also requires the rear I/O board (125680-01). If you are ordering a replacement, confirm with your supplier whether they are shipping the full assembly or just the front panel.

Can I mix a 176449-01 front panel with a different rear I/O board?
The front panel and rear I/O board are designed as a matched pair. Swapping rear boards between different I/O types (e.g., -01 internal terminals vs. -02 external terminals) changes the field wiring interface. Do not mix unless you have verified mechanical and electrical compatibility with Bently Nevada documentation.

What sensors are compatible with the 3500/40M?
The module is designed for Bently Nevada eddy current proximity probe systems — primarily the 3300 XL series (8mm, 11mm, and 5mm probes) with their matching proximitor drivers (e.g., 330180). Older 7200 or 9000 series probes may not be electrically compatible. Verify probe system specifications before connecting.

Does this module support hot-swap?
Yes. The 3500/40M can be inserted or removed from a powered 3500 rack without shutting down the system. Configuration is stored in non-volatile memory and reloads automatically. However, coordinate with operations — removing a live monitor creates a gap in machine protection.

What is the difference between 3500/40-01-00 and 3500/40_SIL-01-00?
The SIL variant carries TÜV certification for SIL 2 functional safety applications. The standard version performs the same monitoring functions but lacks the formal safety certification required for certain machine protection architectures. If your safety instrumented function (SIF) calls for SIL 2, you need the SIL-rated module.

My rack shows a communication fault after installing this module. What do I check?
First, verify the firmware revision on the 3500/40M matches what your 3500/22M TDI module expects. Firmware mismatches between monitor modules and the TDI are a known cause of communication failures. Second, confirm the module is fully seated in the backplane — a partially inserted module will power up (OK LED on) but fail to communicate.

What is the typical lead time for a replacement?
New units from authorized Baker Hughes / Bently Nevada channels can carry extended lead times depending on configuration. Surplus distributors may have stock shipping within days, but verify the condition (new sealed, surplus, or refurbished), exact part numbers on both front and rear boards, and firmware revision before committing to a purchase.
