Description
Key Technical Specifications
- Module Type: 3500/25 Enhanced Keyphasor Module
- Form Factor: Half-Height, Dual Channel
- Input Sensors: Proximitor (Eddy Current) or Magnetic Pickups
- Max Channels per System: 4 (Standard) / 8 (Paired Configuration)
- Input Signal Range: +0.8V to -21.0V (Non-Isolated I/O)
- Isolated Input Range: +5V to -11V (Isolated I/O)
- Power Consumption: 3.2 Watts (Typical)
- Sensor Power Output: -24 VDC, Max 40 mA per channel
- Buffered Outputs: 2x Front Coaxial, 2x Rear Euro-connector
- Max Buffered Output Impedance: 504 Ω
- Operating Temp: -30°C to +65°C (Non-barrier)
- Firmware Upgrade: Supports field-upgradeable firmware
Product Introduction
A turbine trips on high vibration, but the DCS lacks the phase data to tell if it’s unbalance, misalignment, or a rub. The 3500/25 is the critical timing bridge in your 3500 rack. Sitting in a half-height slot, it takes the raw analog waveform from an eddy current probe or magnetic pickup and converts it into a precise digital pulse. This pulse tells the monitoring modules exactly when the shaft’s Keyphasor mark passes the probe, enabling accurate 1X vector measurements.
This Enhanced Keyphasor module replaced the legacy PWA 125792-01, offering better signal processing while maintaining complete backward compatibility. Each module handles two channels, and a standard 3500 rack supports up to two of these modules for four total Keyphasor inputs. Honestly, if you’re seeing erratic phase angles or the module’s OK LED is flashing, check your sensor gap and signal amplitude first. The auto-threshold feature usually handles minor signal variations, but it can’t fix a completely degraded probe signal.
Troubleshooting Quick Reference
- OK LED Flashing / Red | Module Internal Fault | High (70%) | Check 3500 Config Software for module diagnostics | Reseat module; if fault persists, replace 3500/25
- No Keyphasor Pulse | Signal Below Threshold | High (60%) | Measure buffered output on front coax with oscilloscope | Verify sensor gap; check if signal exceeds 500mV p-p min
- Erratic Phase Angles | Noise / Ground Loop | Medium (50%) | Check shield grounding at sensor and I/O module | Ensure single-point ground; verify hysteresis settings in config
- Mag Pickup No Signal | Speed Too Low | Medium (40%) | Check shaft RPM | Passive magnetic pickups require >200 RPM (3.3 Hz) to generate signal
- TX/RX LED Off | Backplane Comm Loss | Low (20%) | Verify 3500/20 RIM module status | Reseat Keyphasor module; clean backplane edge fingers

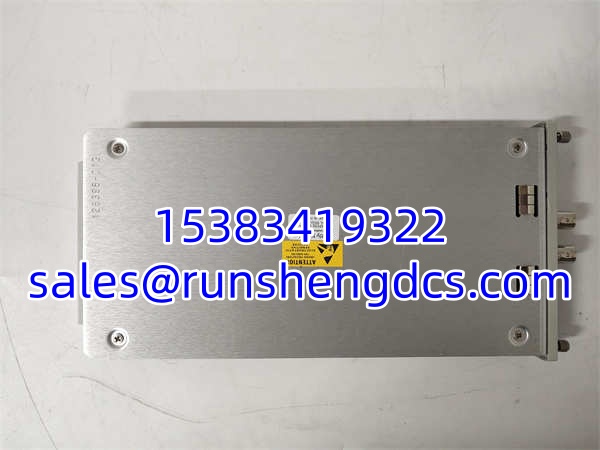

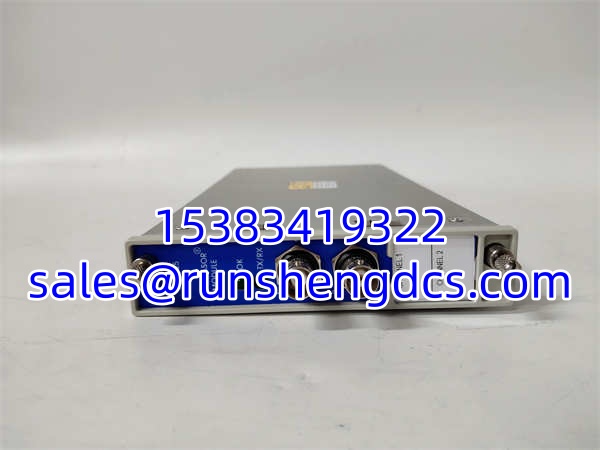

BENTLY 3500/25
Application Scenarios & Pain Points
- Steam Turbine Rotor Balancing: Requires precise 1X amplitude and phase. The enhanced signal processing of the 3500/25 filters out sub-synchronous noise, giving the balancing technician clean vector data.
- TMR (Triple Modular Redundancy) Systems: Safety-critical compressors need redundant speed/phase data. Two 3500/25 modules can be paired to provide primary and secondary Keyphasor signals to the voting logic.
- Low-Speed Magnetic Pickup Apps: Gearbox monitoring often uses passive mag pickups. The 3500/25 handles these natively, but remember the hard floor: below 200 RPM, the mag pickup simply won’t generate enough voltage to trigger the module.
Compatible Replacement Models
- ✅ Drop-in Replacement: 3500/25-01-01-00 (Exact match. Internal terminals, non-isolated. Upload existing config. Verify 149369-01 main board revision.)
- ⚠️ Hardware Variant: 3500/25-01-04-00 (Isolated I/O variant. Different input range. Requires config change and potential rewiring if using barrier terminals.)
- ❌ Hardware Incompatible: 3500/40M (Proximitor Vibration I/O. Completely different function. Does NOT provide Keyphasor timing pulses. Do not substitute.)
