Bently Nevada 3500/25 149369-01 | Enhanced Keyphasor Module, 2-Channel

Description

Key Technical Specifications

Product Introduction

A turbine trip investigation that stalls because the 1X amplitude and phase don’t line up usually traces back to one thing: a bad Keyphasor reference. The 3500/25 149369-01 sits in the Bently Nevada 3500 rack and converts proximity probe or magnetic pickup pulses into a clean digital Keyphasor signal. That single pulse per revolution (or multi-event) tells every monitor module exactly when the shaft mark passed the probe. Without it, vector measurements, phase readings, and filtered vibration data lose their timing anchor.

This is the enhanced replacement for the older 125792-01 Keyphasor module, with form-fit-function backward compatibility. Each half-height card handles two channels, and a 3500 rack can host two of them for up to four Keyphasor signals — or more in paired/TMR arrangements. It runs on roughly 3.2 W, provides buffered outputs for external analyzers, and operates from -30 to +65°C with the standard non-barrier I/O module. Bottom line — if your rack still has a 125792-01, the 149369-01 drops in, but you still need the correct rear I/O module.

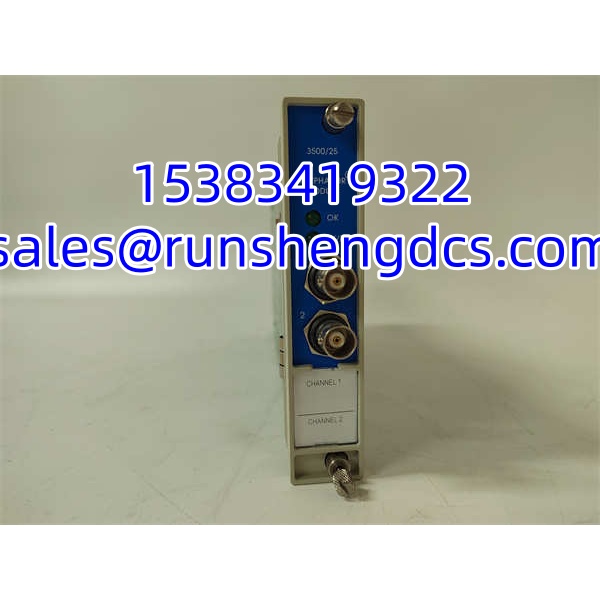

BENTLY 3500-25 149369-01

QA/QC Transparency SOP

1. Intake & Origin Verification — Confirm P/N 149369-01 on the module label, check for physical damage, corrosion, or prior rework. Verify the mating I/O module type (125800-01 internal terminal, isolated, or internal barrier) matches the order.
2. Live Functional Testing — Install in a verified 3500 rack with 3500/15 power and 3500/20 or 3500/22M frame interface. Apply a simulated proximity probe or magnetic pickup signal and confirm Keyphasor pulse generation, TX/RX communication with the rack, and OK LED status.
3. Electrical Parameter Tests — Measure -24 Vdc sensor supply per channel (max 40 mA), verify input impedance ≥21.8 kΩ, check buffered output impedance ≤504 ohms, and confirm insulation resistance on isolated I/O variants.
4. Firmware/Config Verification — Read module status via 3500 Rack Configuration Software over RS-232/RS-422. Confirm channel health, no internal faults, and that the module reports correctly to the frame interface.
5. Final QC & Anti-Static Packaging — Record test results, label the unit with P/N and I/O type, apply ESD bag with desiccant, and ship in rigid packaging. Surplus units are sold as-tested, not as-new OEM.

Field Engineer Gotchas

• Wrong rear I/O module kills the swap. The 149369-01 is the front module only. You still need the correct I/O module — 125800-01 for internal terminals, isolated version for galvanic separation, or internal barrier for hazardous areas. Mismatched I/O means the probe wiring won’t land where the config expects it.
• Isolated I/O adds phase shift. If you are doing precise phase diagnostics or balancing, the isolated Keyphasor I/O module introduces more phase shift than the non-isolated version. It works for speed, but don’t trust phase angles without verifying against a known reference.
• Passive magnetic pickups need speed. Below 200 rpm, a passive magnetic pickup may not generate enough voltage to trigger. Use an active sensor or verify the manual threshold setting if you are rolling slowly during commissioning.
• Half-height slot placement matters. Two 3500/25 modules share one full-height slot — one in the upper half, one in the lower. Forcing both into the same half or skipping the adapter bracket will cause seating and backplane contact issues.
• Shield grounding on Keyphasor cabling. Use twisted, shielded cable and ground the shield at one end only. Ground loops on the Keyphasor probe cable create false pulses that show up as erratic phase readings across every monitor in the rack.

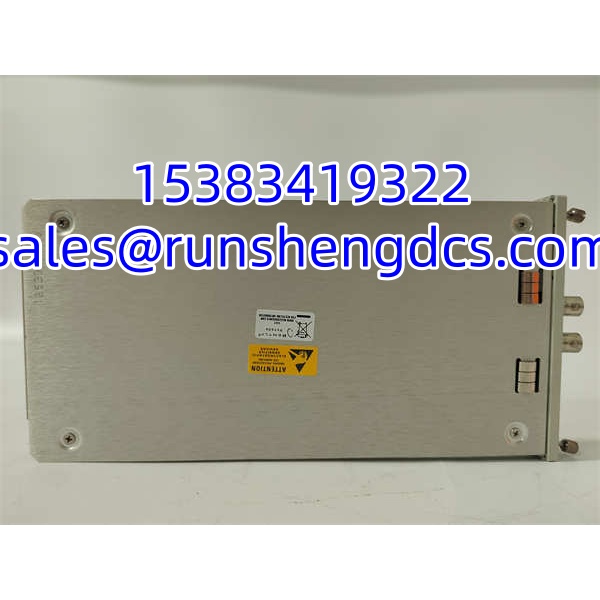

BENTLY 3500-25 149369-01

Application Scenarios

• Steam turbine TSI racks: Provides the phase reference for radial vibration, axial position, and differential expansion monitors. A lost Keyphasor signal disables 1X filtered vibration and phase-based diagnostics.
• Centrifugal compressor trains: Supports paired Keyphasor channels for TMR or redundant configurations where a single probe failure cannot take down the protection reference.
• Large motor/generator balancing: Supplies the once-per-turn pulse for polar plots, Bode plots, and trial-weight phase correlation during field balancing.
• Gearbox and fan monitoring: Enables order tracking and synchronous filtering when vibration spectra are masked by multiple running speeds.

FAQ

Does 149369-01 replace the old 125792-01 Keyphasor module?
Yes. The 149369-01 is the enhanced replacement and is form-fit-function compatible with the legacy 125792-01.

How many Keyphasor channels can one 3500 rack support?
Two channels per 3500/25 module, up to two modules per rack — four channels standard. Paired or TMR configurations can support more.

Can I use a proximity probe and a magnetic pickup at the same time?
Each module has two independent channels, so you can mix sensor types per channel as long as the I/O module and signal levels are compatible. Verify the input range for your I/O type.

What is the difference between -01 and -04 I/O modules?
-01 is the standard I/O module with internal terminals (non-isolated). -04 is the isolated I/O module. Isolated inputs change the voltage range and add phase shift, which matters for diagnostic accuracy.

Will this work in a 3500/40M or 3500/42M rack?
It works in any standard 3500 rack with a 3500/20 or 3500/22M frame interface module. The 3500/25 provides the Keyphasor reference to all monitor modules in the same rack via the backplane.

Is this module hot-swappable?
3500 monitor and Keyphasor modules are generally hot-swappable in a powered rack, but replacing a Keyphasor module will temporarily remove the phase reference for any monitors depending on it. Coordinate with operations before pulling it during unit run.

Is surplus stock reliable for this module?
It can be, if tested in a live 3500 rack with verified sensor simulation and backplane communication. The failure modes are usually input stage degradation or backplane connector wear, not firmware issues. Always request test data.
