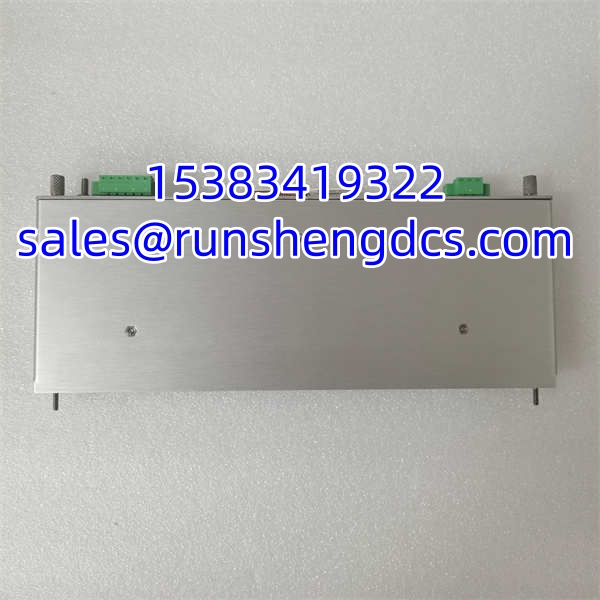

Bently Nevada 146031-01 | 3500/22 TDI I/O Module, 10/100Base-T

Description

Key Technical Specifications

Product Introduction

A 3500 rack with no link to System 1 is still tripping relays, but the engineers are blind. Trend data stops. Transient waveforms from a trip event vanish. The 146031-01 is the copper Ethernet interface that keeps that data flowing. It sits in Slot 1 of the 3500 rack and merges the functions of a Rack Interface Module with a transient data processor, pushing both steady-state readings and high-sample-rate waveforms up to System 1 over standard 10/100 Mbps Ethernet.

Why it still matters on legacy racks: the 146031-01 handles the copper Ethernet physical layer while the 3500/22M processor handles the logic. It runs from -30 °C to +65 °C, which covers most control rooms and turbine decks. The catch — and it’s a real one — is that the 146031-01 is the I/O sub-module, not the full 3500/22M processor. If your rack has a 138607-01 or 138607-02 TDI processor, the 146031-01 may be the Ethernet daughter card inside it. Verify your exact assembly before ordering. Bottom line: don’t buy the -01 if you actually need the full 3500/22M processor card.

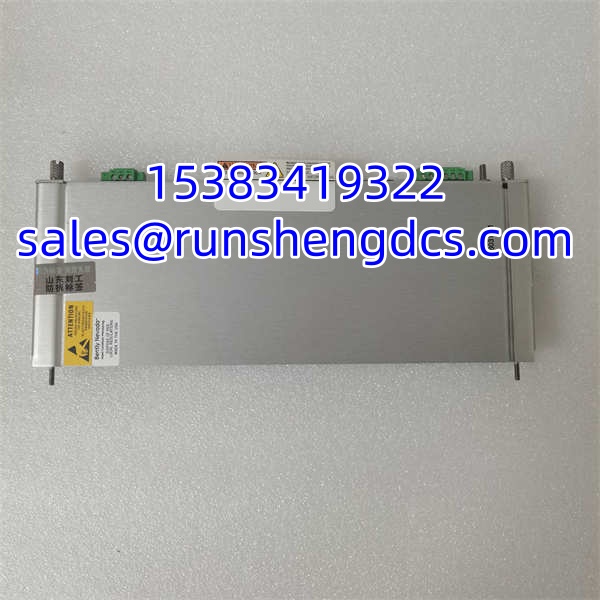

BENTLY 146031-01

QA/QC Transparency SOP

1. Intake & Origin Verification — Serial number and lot code logged against OEM shipping records. Visual inspection for burnt components, corroded RJ-45 magnetics, and bent backplane pins.
2. Live Functional Testing — Module seated in a powered 3500 rack with a known-good 3500/22M processor. Ethernet link established; System 1 communication verified with steady-state data streaming.
3. Electrical Parameter Tests — Backplane continuity check on all pins. Insulation resistance (megger) between Ethernet port and chassis ground. RJ-45 pinout verified against TIA-568B with a cable certifier.
4. Firmware/Config Verification — Processor firmware revision read via 3500 Configuration Software. Transient capture function validated with a channel enable key installed. Configuration backed up before shipment.
5. Final QC & Anti-Static Packaging — Module removed, RJ-45 port capped, sealed in ESD bag with desiccant. Test report and firmware revision included in the packing slip.

Field Engineer Gotchas

• 146031-01 vs. Full 3500/22M Processor — The 146031-01 is the copper Ethernet I/O sub-module, not the complete TDI processor. If your rack is missing the entire Slot 1 card, you likely need a 138607-01 (standard) or 138607-02 (TMR), not just the 146031-01. Ordering the wrong one means a second PO and a delayed turnaround.
• Firmware Mismatch — The 3500/22M processor and its I/O sub-modules must run compatible firmware. A swapped 146031-01 with mismatched firmware can cause link flapping or System 1 communication timeouts. Always read the firmware revision before and after the swap.
• Transient Data Requires Channel Enable Key — Steady-state data flows by default. If you’re not seeing waveform captures after a replacement, check whether the channel enable key is installed on the rack. Without it, the TDI only passes basic monitoring data.
• Copper vs. Fiber Confusion – The -01 is copper (10/100Base-TX). The -02 is fiber (100Base-FX). Plugging a Cat5e cable into a -02 won’t work — different physical media entirely. Verify the dash suffix on the nameplate before running cable.

BENTLY 146031-01

Application Scenarios

• Steam turbine trip investigation — After an overspeed trip, engineers need the transient waveform from the 3500 rack to determine whether it was a genuine mechanical event or an instrumentation fault. The 146031-01 pushes that high-sample-rate data to System 1 for post-mortem analysis.
• Centrifugal compressor protection on a refinery train — Continuous vibration monitoring across multiple bearings. The TDI links the 3500 rack to the plant’s System 1 server over the control network. If the Ethernet link dies, operators lose trending but the rack still trips locally.
• Generator bearing degradation monitoring — A power plant uses the 3500 system to track Babbitt temperature and shaft vibration. The 146031-01 ensures that slow-developing bearing wear shows up in System 1 trends before it becomes a forced outage.

FAQ

Q: Is the 146031-01 the same as the 3500/22M processor?
A: No. The 146031-01 is the copper Ethernet I/O sub-module. The full TDI processor is typically the 138607-01 (standard) or 138607-02 (TMR). The 146031-01 may be a replaceable component inside that assembly. Verify your exact hardware configuration before ordering.

Q: Can I use the 146031-01 with a fiber network?
A: No. The -01 is copper only (10/100Base-TX). For fiber, you need the 146031-02 (100Base-FX).

Q: Does this module affect machine protection tripping?
A: No. The TDI is not part of the critical protection path. If it fails, the 3500 rack continues to monitor and trip locally. You lose remote data visibility, not protection.

Q: What software does it communicate with?
A: Bently Nevada System 1 for condition monitoring and the 3500 System Configuration Software for rack setup.

Q: Can I hot-swap the 146031-01?
A: The 3500 rack supports online module replacement, but the TDI in Slot 1 is a special case. Replacing it will interrupt communication with System 1 until the module re-initializes. Plan a brief data gap. The rack’s local protection remains active.

Q: Is the 146031-01 still manufactured by Bently Nevada?
A: No. It is a legacy part. Available stock is surplus or refurbished. Lead times and condition vary by vendor — always request a test report.

Q: What’s the difference between 146031-01 and 146031-02?
A: Physical media. The -01 is 10/100Base-TX copper Ethernet. The -02 is 100Base-FX fiber Ethernet. They are not interchangeable without changing the network infrastructure.
