Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model Number | 133396-01 |
| Module Type | 3500/53 Tachometer / Overspeed Monitor |
| System Platform | 3500 Machinery Protection System |
| Primary Function | Speed measurement and overspeed protection |
| Mounting | 3500/05 19-inch rack |
| Alarm/Trip Outputs | Configurable via 3500 relay modules (e.g., 3500/32, 3500/33) |
| Communication | Via 3500/22M TDI or 3500/92 gateway |
| Typical Applications | Turbines, compressors, fans, pumps, gearboxes |
| Product Status | Legacy / surplus |
Product Introduction
In a 3500 machinery protection rack, the vibration modules get most of the attention, but the speed monitor is the one that prevents catastrophic overspeed events. The Bently Nevada 133396-01 is the 3500/53 tachometer/overspeed monitor module. It measures shaft speed from keyphasor or magnetic pickup signals and triggers alarms or trips when speed exceeds configured thresholds.
This module does not operate alone. It requires a 3500/05 rack, 3500/15 power supply, and proper configuration through the 3500/22M TDI or 3500/92 communication gateway. Trip outputs are typically routed through 3500/32 or 3500/33 relay modules. Because this is a protection module, substitution must be verified against the existing rack configuration, firmware compatibility, and relay mapping. Do not accept generic “3500 I/O module” descriptions without confirming the 3500/53 function.
QA/QC Transparency SOP
- Intake & Origin Verification — Confirm part number 133396-01 and module type 3500/53. Inspect the front-panel label, connector pins, and rack mounting hardware. Reject units with damaged connectors, corrosion, or mismatched labels.
- Visual & Mechanical Inspection — Check for bent backplane pins, cracked housings, and proper 3500 rack fitment. Verify the module matches the mechanical footprint of other 3500 monitor modules.
- Electrical Parameter Tests — Measure insulation resistance and backplane continuity. Check input terminals for shorts or open circuits. Do not install modules with suspected backplane damage.
- Live Functional Testing — Test on a compatible 3500 rack with a known keyphasor or speed signal source. Verify speed reading accuracy, alarm activation, and trip output behavior. Confirm the module is recognized by the 3500/22M TDI or configuration software.
- Final QC & Anti-Static Packaging — Label with part number, serial number, test date, and test results. Pack in ESD-safe materials with front-panel and connector protection. Include a test summary for traceability.
Field Engineer Gotchas
- Misidentified part number — Risk: some distributors list 133396-01 as a display, power supply, or generic I/O module. Solution: require confirmation that it is a 3500/53 speed/overspeed monitor.
- Wrong slot placement — Risk: installing the 3500/53 in a slot configured for a different monitor type. Solution: verify the rack configuration file and slot assignment before insertion.
- Relay mapping mismatch — Risk: the monitor detects overspeed but the trip does not reach the ETS or shutdown system. Solution: confirm that the 3500/32 or 3500/33 relay module is correctly mapped to the 3500/53 channel.
- Keyphasor signal integrity — Risk: poor keyphasor wiring causes false speed readings or missed trips. Solution: verify probe gap, cable shielding, and signal amplitude before commissioning.
- Firmware/configuration compatibility — Risk: the replacement module does not accept the existing configuration. Solution: confirm firmware version compatibility with the 3500/22M TDI and rack configuration software.

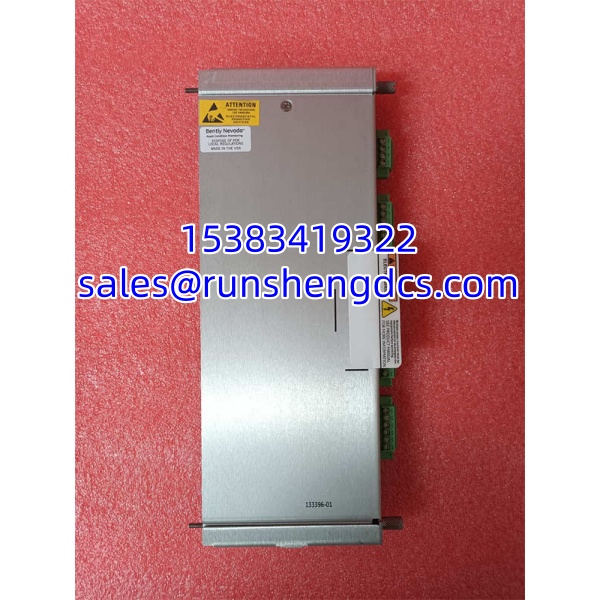

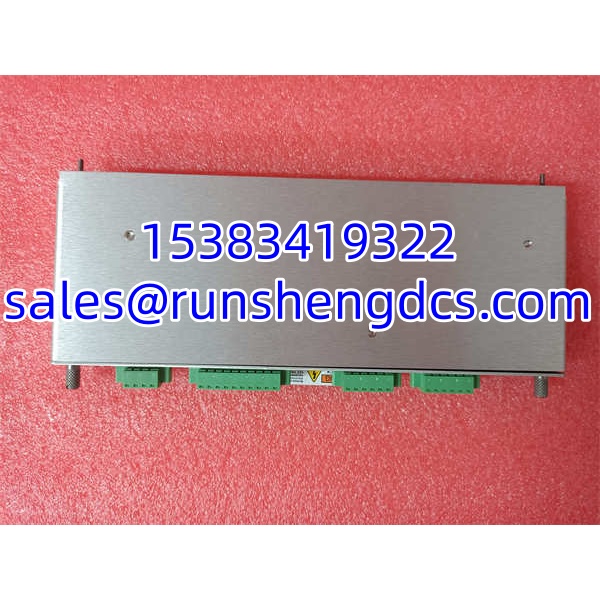

Bently Nevada 133396-01
Application Scenarios
- Steam turbine overspeed protection — The 3500/53 monitors shaft speed during startup, normal operation, and trip testing. If speed exceeds the trip setpoint, it triggers relay outputs to the emergency trip system.
- Centrifugal compressor protection — Compressors are sensitive to overspeed during surge or load rejection. The 3500/53 provides independent speed monitoring alongside vibration and displacement channels.
- Gas turbine startup monitoring — During crank and acceleration, accurate speed measurement is critical for sequence control. The 3500/53 feeds speed data to both protection relays and the plant DCS via the 3500/92 gateway.
- Legacy 3500 rack spare pool — Facilities running older 3500 systems keep a verified 133396-01 spare to reduce mean time to repair when a speed monitor fails.
FAQ
Is 133396-01 the same as 3500/53?
Yes. 133396-01 is the part number for the Bently Nevada 3500/53 tachometer/overspeed monitor module.
Can it be used for vibration monitoring?
No. The 3500/53 is a speed/overspeed module. Vibration monitoring uses 3500/40, 3500/42, or similar modules.
Does it provide trip outputs directly?
Trip outputs are typically routed through 3500/32 or 3500/33 relay modules. The 3500/53 provides the speed measurement and alarm/trip logic.
What signal does it accept?
It accepts keyphasor or magnetic pickup speed signals. Confirm the exact input type and voltage levels from the 3500/53 datasheet.
Is this module still in production?
It is commonly available as surplus or refurbished stock for legacy 3500 systems. Verify current Baker Hughes availability for new units.
What should I check before buying?
Confirm the part number 133396-01, module type 3500/53, physical condition, and whether the seller has tested speed measurement and trip functionality.
