Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Associated Monitor | 3500/42M (Displacement/Velocity/Acceleration) |
| System Platform | Bently Nevada 3500 Series |
| Channel Capacity | 4 Channels (when paired with monitor) |
| Sensor Compatibility | Proximitor / Seismic / Accelerometer |
| Output Signals | Buffered Transducer Outputs, 4-20mA Proportional |
| Compliance | API 670 Standard |
| Installation | Hot-swappable in powered framework |
| Wiring Interface | Internal Terminals |
| Operating Temp | -25°C to +55°C (Standard Industrial) |
| Functionality | Signal Buffering & Routing |
Product Introduction
Vibration monitoring is only as good as the signal path, and the Bently Nevada 128229-01 is the critical physical bridge between your expensive field sensors and the 3500/42M processing module. I’ve seen plants spend thousands on high-end accelerometers, only to have their data ruined by a corroded or poorly seated I/O interface board. This specific part is the internal terminal I/O module designed to buffer and route those delicate analog signals safely into the rack.
Field engineers rely on this exact board because it maintains signal integrity without introducing noise, supporting up to four channels of buffered transducer outputs. It’s built to be hot-swappable, meaning you can replace a fried board without shutting down the entire turbine protection system. Just be warned: the internal terminal blocks on these older boards can be fragile. If you over-torque the sensor wires during installation, you’ll strip the threads and ruin a perfectly good module.
Quality SOP & Tech Pitfalls (The Reality Check)
Before this 128229-01 leaves our bench, we don’t just eyeball it. We mount it on a 3500 test rack, inject a known vibration signal, and verify the buffered outputs match the input within spec using an oscilloscope. We check the internal terminal block for stripped threads and verify the board traces for micro-fractures. It gets sealed in fresh anti-static shielding with a printed test report showing the exact signal verification.
Here is where guys mess up: they buy a cheap aftermarket replacement that lacks the proper internal buffering, introducing ground loop noise into their DCS. I watched a tech spend three days chasing a “ghost vibration” fault on a compressor, only to realize the replacement I/O board was passing 60Hz mains hum directly to the monitor. Always verify the part number matches exactly. Also, watch out for ESD damage; these signal conditioning boards are incredibly sensitive. Touching the gold fingers without a wrist strap is a guaranteed way to kill it.
Installation & Configuration Guide
- Pre-Installation: ⚠️ VERIFY HOT-SWAP CAPABILITY. While the 3500 system supports hot-swapping, always check your specific system configuration first. Take a high-resolution photo of the existing wiring and jumper positions.
- Removal: Label every sensor wire with a Sharpie. Do not trust old tape. Loosen the internal terminal screws gently. Pull the module straight out to avoid bending the backplane pins.
- Installation: INSPECT TERMINAL BLOCK THREADS. This prevents 90% of installation failures. Slide the new 128229-01 into the slot until it seats fully. Reconnect wires according to your photo, tightening terminals to OEM torque spec only.
- Power-On & Testing: Check the 3500/42M monitor LEDs. They should illuminate solid green within seconds. Use the System 1 software or local display to verify that all four channels are reading valid sensor data without excessive noise.

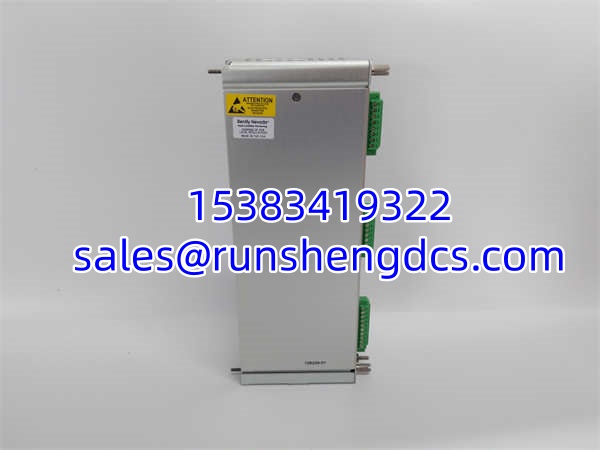

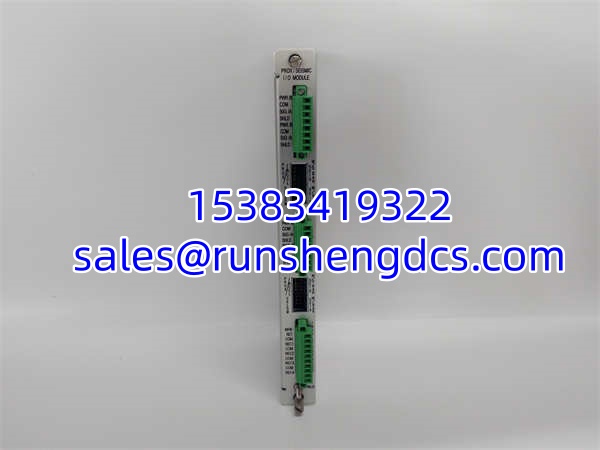

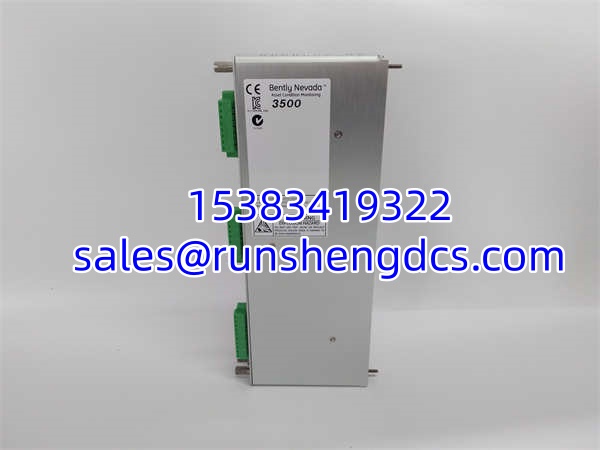

Bently Nevada 128229-01
Compatible Replacement Models
| Model | Compatibility Tier | Notes |
|---|---|---|
| 135489-01 | ⚠️ Software Compatible | Includes internal safety barrier. Verify if your hazardous area classification requires this upgrade. |
| 138708-01 | ⚠️ Software Compatible | Shaft vibration specific I/O. Check channel mapping before swapping. |
| 176449-02 | ❌ Hardware Mod Required | Different internal architecture. Do not use as direct drop-in without chassis modification. |
Frequently Asked Questions (FAQ)
Can I hot-swap this I/O module while the 3500 rack is powered?
Yes, the 3500 system is designed for hot-swapping this module. However, always verify your specific plant safety protocols first, as pulling it can cause a momentary loss of signal to the monitor.
Is this module brand new or refurbished?
We sell New Surplus. It is factory-sealed in original Bently Nevada packaging but may have been sitting in a warehouse for a few years. We bench-test every single unit before shipping to guarantee it meets OEM specs.
Why is my 3500/42M showing erratic vibration readings?
You likely have a loose wire at the 128229-01 terminal block or a damaged internal trace. Measure the sensor loop resistance with power off before installing a new board.
Does this board include an internal safety barrier?
No, the 128229-01 is the standard internal terminal version. If you require an internal safety barrier for hazardous areas, you need the 135489-01 variant. Check your OEM manual carefully.
What is the warranty on this obsolete part?
We provide a 1-year functional warranty. If it fails under normal operating conditions, we replace it. We don’t argue over “wear and tear” on industrial signal boards.
Can I use this for a 3500/40M Proximitor monitor?
No. This specific I/O module is physically and electrically mapped for the 3500/42M. The 3500/40M requires a different I/O interface. Stick to the exact part number.
How do I know if the board is completely dead?
If you have verified the sensor is good and the 3500/42M monitor is powered, but the channel shows a “Sensor Break” or flatlines at zero, the internal buffer circuit on this I/O board is likely fried.
