Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 125800-01 |
| Product Type | Keyphasor Input/Output Module |
| Series | Bently Nevada 3500 Series |
| Associated Module | 3500/25 Keyphasor Module |
| Terminal Type | Internal terminals |
| Primary Function | Buffered keyphasor signal I/O |
| Typical Use | Speed/phase reference for vibration and position monitoring |
| Availability | Surplus / refurbished / new old stock |
| OEM Documentation | Confirm against Bently Nevada 3500 manual |
| Drop-in Replacement | Not guaranteed; verify against 125800-02, 149369-01, or 3500/25 revision |
Product Introduction
The Bently Nevada 125800-01 is the keyphasor I/O interface associated with the 3500/25 keyphasor module in the Bently Nevada 3500 machinery protection system. It is not a standalone monitor by itself; it works as part of the 3500/25 assembly to accept keyphasor sensor signals and provide buffered outputs for speed, phase, and vibration measurement reference.
In the 3500 family, the 3500/25 keyphasor module records speed values from each keyphasor sensor and returns module/channel status to the 3500 rack. The 125800-01 variant is described as the keyphasor input/output version with internal terminals, while 125800-02 is listed as an insulated keyphasor input variant and 149369-01 as an improved keyphasor module. Because these part numbers sit in the same functional family, do not assume they are interchangeable without checking the system manual.
QA/QC Transparency SOP
- Intake & Origin Verification: Confirm Bently Nevada branding, part number 125800-01, and serial/revision data. Inspect connectors, terminal blocks, and PCB for corrosion or burn marks.
- Live Functional Testing: Install into a compatible 3500 rack with a 3500/25 keyphasor module. Apply a known keyphasor signal and verify buffered outputs and rack recognition.
- Electrical Parameter Tests: Check keyphasor input integrity, buffered output levels, terminal continuity, and insulation between channels.
- Firmware/Config Verification: Confirm the 3500/25 module configuration, slot assignment, and keyphasor channel mapping. Back up rack configuration before returning to service.
- Final QC & Anti-Static Packaging: Label with part number, test date, and pass/fail status. Pack in anti-static material with connector protection.
Field Engineer Gotchas
- 125800-01 is not a standalone monitor. It belongs to the 3500/25 keyphasor function. Installing it without the correct 3500/25 module and rack configuration will not restore keyphasor monitoring.
- Do not swap 125800-01 and 125800-02 blindly. The -02 version is listed as an insulated keyphasor input variant; terminal behavior and isolation may differ.
- 149369-01 is not automatically a drop-in replacement. It is described as an improved keyphasor module, but firmware, wiring, or rack compatibility may differ.
- Keyphasor wiring is critical. A reversed probe, wrong gap, or damaged extension cable can look like a module fault. Verify the sensor chain before condemning the card.
- Surplus condition varies. Many listings only show photos. Require a functional test report showing keyphasor signal detection and buffered output verification.

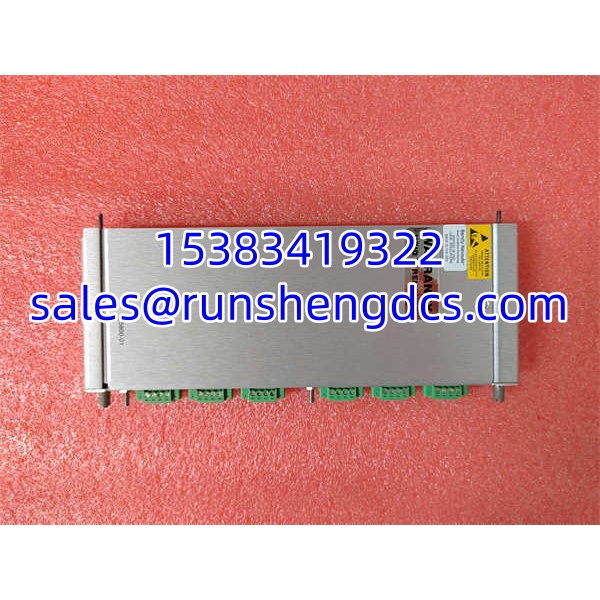

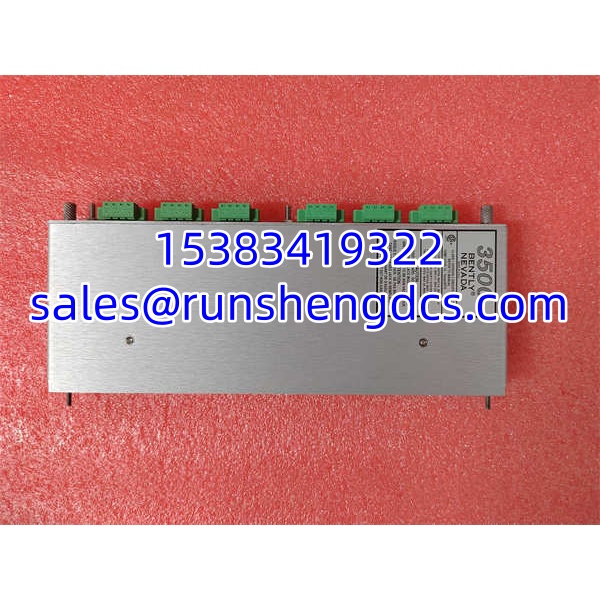

Bently Nevada 125800-01
Application Scenarios
- Steam turbine protection rack. Restores keyphasor reference for vibration and axial position monitoring in a 3500 machinery protection system.
- Compressor train monitoring. Provides phase-locked speed reference for orbit plots, notch filtering, and vibration diagnostics.
- Generator set maintenance. Replaces a failed keyphasor I/O interface where the original 125800-01 has developed intermittent signal loss.
- Brownfield 3500 rack refurbishment. Supports spare pool buildup for legacy Bently Nevada 3500 installations where OEM lead times are long.
FAQ
Is 125800-01 a standalone module?
No. It is the keyphasor I/O interface associated with the 3500/25 keyphasor module in the Bently Nevada 3500 system.
What is the difference between 125800-01 and 125800-02?
125800-01 is the keyphasor I/O version with internal terminals; 125800-02 is listed as an insulated keyphasor input variant. Do not substitute without checking the 3500 manual.
Can 149369-01 replace 125800-01?
Not automatically. 149369-01 is described as an improved keyphasor module, but compatibility must be confirmed against the rack configuration and OEM documentation.
What system does it fit?
Bently Nevada 3500 Series racks, specifically the 3500/25 keyphasor function.
Is this still available new?
Treat availability as surplus/refurbished unless confirmed by an authorized Bently Nevada distributor.
What should I check before buying?
Confirm the part number, revision, terminal type, associated 3500/25 module, and whether the supplier has functionally tested keyphasor signal detection.
