Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Product Line | 3500 Machinery Protection System |
| Module Type | Power Supply Module |
| Part Number | 127610-01 |
| AC Input Voltage | 85-264 VAC (Universal), 47-63 Hz |
| DC Input Voltage | 20-30 VDC (Low Voltage) |
| Max Current Draw | 4.5A @ LVAC / 2.3A @ LVDC |
| Form Factor | Half-Height (48.3mm W x 82.6mm H) |
| Mounting | 3500 Series 19-inch Frame (Leftmost Slot) |
| Hot-Swap | Supported (in redundant config) |
| Standards | API 670, IEC 61508 SIL 2, CE, UL 508 |
Product Introduction
When the 3500 rack loses power, you lose your turbine protection, vibration monitoring, and overspeed trip logic. The BENTLY 3500/15 127610-01 is the power foundation for the entire 3500 system, converting universal AC or low-voltage DC into the clean, regulated rails that keep your monitoring modules alive. It’s designed to sit in the leftmost slot of the frame, feeding the backplane with stable power.
We stock the BENTLY 3500/15 127610-01 because 3500 systems are the gold standard for API 670 compliance, and plants can’t afford 12-week lead times on power supplies. This module supports hot-swapping when configured in a redundant pair, meaning you can replace a failing supply without shutting down the turbine. It handles 85-264 VAC universally, so you don’t need to worry about tap settings. Bottom line — it’s the heartbeat of the rack, and redundancy is non-negotiable for critical assets.
QA/QC Transparency SOP
- Intake & Origin Verification: We trace the BENTLY 3500/15 127610-01 to its decommissioned site. Visual inspection checks for burnt components on the AC input stage, capacitor bulging, and corrosion on the backplane connector pins.
- Live Functional Testing: The module goes on a 3500 test frame. We verify the 5V and 24V backplane rails under full load and test the “Supply OK” LED logic. Redundancy sharing is verified by simulating a primary failure.
- Electrical Parameter Tests: Using a Fluke 115, we measure output ripple voltage and load regulation. Isolation resistance between AC input and DC output is megger-tested to ensure no ground faults.
- Firmware/Config Verification: We read the module ID and verify the part number matches 127610-01. Any internal diagnostic flags are logged and cleared.
- Final QC & Anti-Static Packaging: After passing, it gets a test sheet, anti-static bag, and desiccant. If the output ripple exceeds spec, it’s scrapped. No “as-is” sales on power supplies.
Field Engineer Gotchas
- Slot Position Violation: The BENTLY 3500/15 127610-01 must go in the leftmost power slot. Risk: System won’t boot or backplane damage. Fix: Never put a monitor module in the power slot. I’ve seen a tech shove a 3500/40 into the power slot and fry the backplane traces.
- Redundancy Mismatch: You can’t mix different power supply revisions in a redundant pair. Risk: Load sharing failure, one supply taking full load and overheating. Fix: Both supplies must have the exact same part number and revision. I once saw a plant run for months with one supply at 90% load because the other was a different rev and refused to share.
- AC Input Wiring: This is a universal input, but the terminal block is small. Risk: Loose connections causing arcing or intermittent power loss. Fix: Torque the AC input screws to spec. Don’t just finger-tighten. Vibration will loosen them over time.
- Hot-Swap Procedure: Hot-swapping is supported, but only in redundant config. Risk: Dropping the backplane voltage if you pull the only supply. Fix: Verify redundancy status LED is green before pulling. If you have a single supply, plan a shutdown.

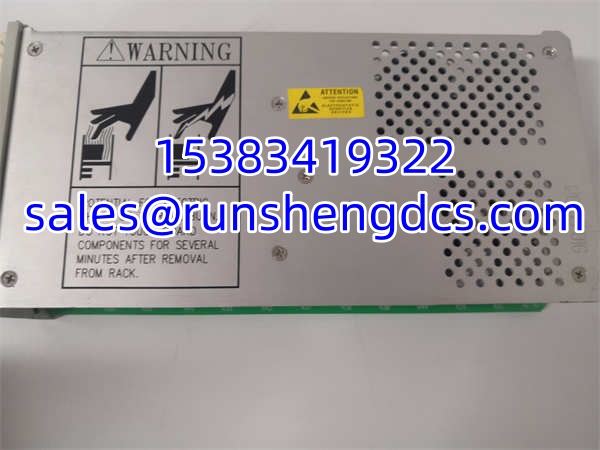

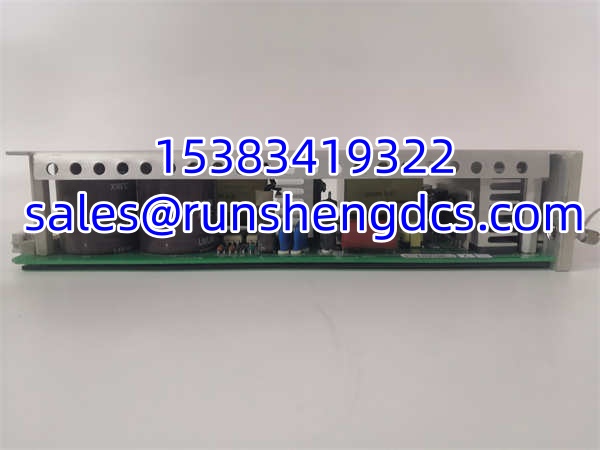

BENTLY 3500/15 127610-01
Application Scenarios
- Steam Turbine Protection: Powering the 3500 rack that monitors overspeed, vibration, and axial displacement on 500MW+ turbine generators.
- Gas Compressor Stations: Providing redundant power for pipeline compressor vibration monitoring in remote, unattended locations.
- Refinery Critical Pumps: Protecting high-value rotating equipment where API 670 compliance is mandatory for insurance.
- Case Study: A power plant had a 3500 rack that kept cycling the “Supply OK” LED. They replaced the CPU, then the RIM. Finally, they pulled the BENTLY 3500/15 127610-01 and found a failing AC input capacitor that was causing ripple under load. Replaced the supply, and the rack stabilized. Bottom line — always suspect the power supply first when you see intermittent faults.
FAQ
Is the 127610-01 compatible with older 3500 frames?
Yes. The BENTLY 3500/15 127610-01 fits all standard 3500/05 19-inch frames. Just verify the frame isn’t the older mini-frame (12-inch), which has different slot spacing.
Can I run this on 120VAC and 24VDC at the same time?
No. The BENTLY 3500/15 127610-01 is a universal input, but you select either AC or DC. It’s not a dual-input supply. Check the label for your specific configuration.
Why is my “Supply OK” LED blinking?
Check the backplane load. If you’ve exceeded the power budget, the supply will current-limit and blink. Also verify the redundant partner (if installed) isn’t faulted. A single failing supply can drag down the whole pair.
Does this support hot-swapping?
Yes, but only in a redundant configuration. The BENTLY 3500/15 127610-01 shares load with its partner. Pulling a single supply will crash the rack. Always verify redundancy status first.
What’s the max current draw?
At 85-264 VAC, the BENTLY 3500/15 127610-01 draws up to 4.5A. At 20-30 VDC, it draws up to 2.3A. Size your UPS or DC supply accordingly, including inrush current.
Is this obsolete?
The 3500 platform is legacy, but the 127610-01 is still widely supported in the aftermarket. Stock is finite. If you have a critical system, buy a spare now. Waiting for a failure is a gamble.
How do I know if it’s truly tested?
Ask for the load test report. If the seller can’t show you a backplane ripple measurement or a redundancy switchover test, walk away. Power supplies are safety-critical. “Tested” is a marketing word; data is engineering.
