Description
Key Technical Specifications
• Module Type: Half-height, Dual-Channel Keyphasor I/O
• Input Signal Type: Eddy Current (Proximity) or Magnetic Pickups
• Input Voltage Range: -0.8 V to -21.0 V (Non-insulated I/O)
• Input Impedance: < 21.8 kΩ
• Auto Threshold Trigger: Minimum 2V peak-to-peak signal
• Manual Threshold Trigger: Minimum 500mV peak-to-peak signal
• Minimum Frequency: 120 RPM (2 Hz) for auto threshold
• Power Consumption: 3.2 Watts (Normal operation)
• Operating Temperature: 0°C to +65°C (with internal terminals)
• Storage Temperature: -40°C to +85°C
• Humidity Tolerance: 95% (Non-condensing)
Product Introduction
A keyphasor signal is useless if the hardware can’t accurately catch the shaft marker pulse. The Bently 125800-01 acts as the dedicated rear I/O backplane for the 3500/25 Keyphasor module. It handles the raw analog signals from eddy current probes or magnetic pickups and routes them to the front processing card. Honestly, this board takes the electrical abuse so the expensive microprocessor on the front card doesn’t have to.
Why does this specific rear board matter? It features internal terminals, meaning your field wiring connects directly to the back of the module without needing external terminal blocks. It supports dual channels and handles the heavy lifting of signal conditioning for 1X vibration amplitude and phase measurements. Bottom line—when troubleshooting a dead keyphasor channel, don’t just blame the front card. A corroded terminal or burnt trace on this 125800-01 backplane will brick your timing reference just as fast.
Troubleshooting Quick Reference
• No Keyphasor Pulse / Dead Channel | Cause: Burnt trace or corroded terminal on backplane | Relevancy: 85% | Quick Check: Measure DC bias voltage at rear terminal | Fix: Inspect 125800-01 for physical damage; swap backplane
• Erratic RPM / False 1X Phase Shifts | Cause: Poor ground or loose I/O connection | Relevancy: 80% | Quick Check: Check torque on rear terminal screws | Fix: Reseat module; verify shield grounding at backplane
• Front Card Fails to Boot | Cause: Backplane 3.2W power draw shorted | Relevancy: 75% | Quick Check: Measure 5V/12V rails at rack backplane | Fix: Replace 125800-01; check for pinched wiring
• Signal Clipping / Saturation | Cause: Input voltage exceeding -21.0V limit | Relevancy: 70% | Quick Check: Measure AC/DC signal at rear terminal | Fix: Adjust prox probe gap; verify前置器 (proximitor) power
• Module Won’t Seat Fully | Cause: Bent pins on rear I/O connector | Relevancy: 65% | Quick Check: Visually inspect 125800-01 mating pins | Fix: Carefully straighten pins or replace rear board

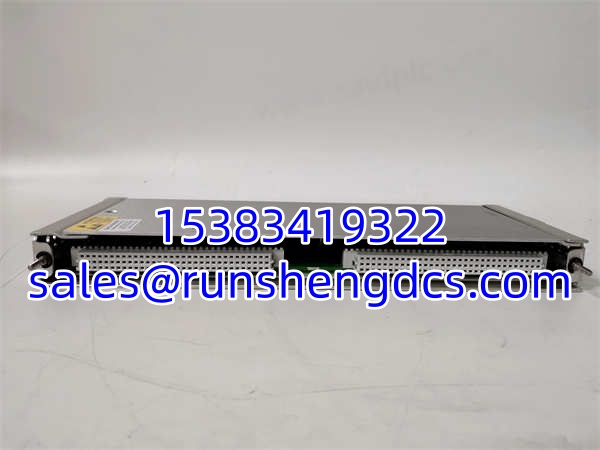

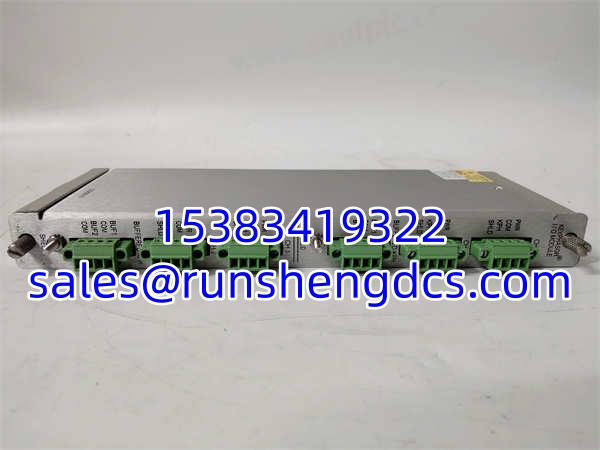

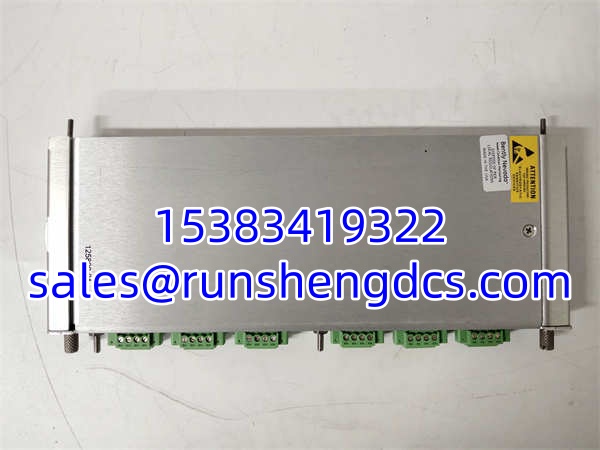

BENTLY 125800-01
Application Scenarios & Pain Points
• Steam Turbine Generators: High shaft voltages can arc across poorly grounded I/O boards. The internal terminal design on the 125800-01 requires meticulous shield routing to prevent EMI from corrupting the keyphasor timing pulse.
• Centrifugal Compressors: Oil mist and corrosive gases penetrate control panels. Over time, these gases eat the copper traces on the rear I/O board, causing intermittent open-circuit faults on the proximity probe inputs.
• Gas Pipeline Pump Stations: Extreme temperature swings cause thermal expansion. Repeated heating and cooling cycles can crack solder joints on the rear terminal block, leading to ghost vibration alarms during startup.
Compatible Replacement Models
• ✅ Drop-in Replacement: Bently 125800-01 (Exact Match). Same footprint, same internal terminal layout, same non-insulated I/O specs. Surplus pricing typically ranges 800 to 6,500 depending on vendor and warranty.
• ⚠️ Software Compatible: Bently 125800-02. Features insulated I/O. Same physical dimensions, but requires verifying system grounding and input voltage limits. Plan 2 hours for re-commissioning and loop checks.
• ❌ Hardware Incompatible: Older PWA 125792-01 Keyphasor Board. Do not attempt. This is an obsolete single-piece design that has been completely replaced by the 149369-01 front card + 125800-01 rear board split. Total rack modification required.
