Description
Key Technical Specifications

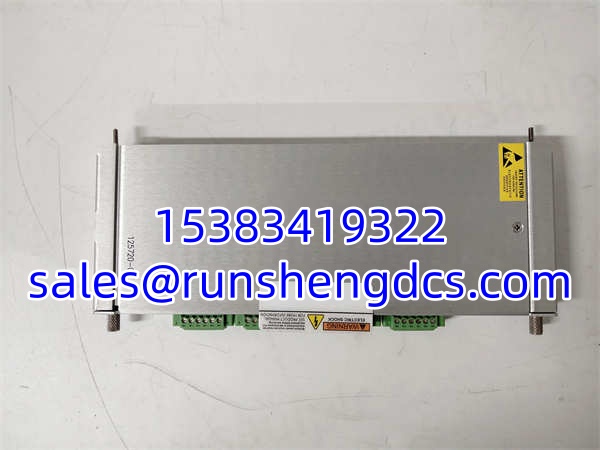

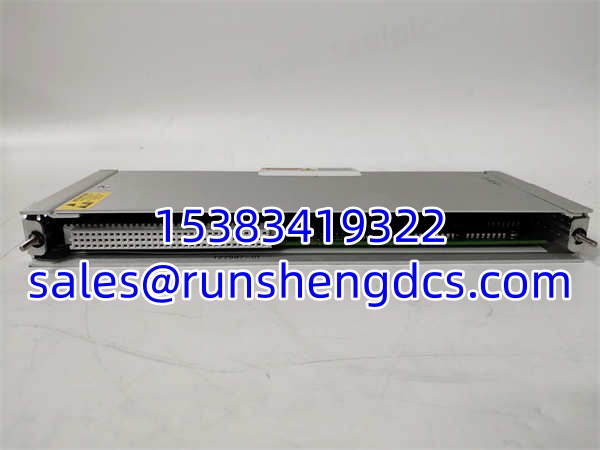

- Module Type: 3500/32M 4-Channel Relay Module
- Part Number: 125720-01
- Channel Count: 4 Independent Relay Outputs
- Function: Alarm, Danger, Trip, or Bypass Logic
- Mounting: 3500 Series Rack (Full Height)
- Compatibility: 3500/40M, 3500/42M, 3500/45, 3500/50, etc.
- Response Time: <30ms (Typical for Trip Relays)
- Isolation: Channel-to-Channel & Channel-to-Backplane
- LED Status: Alarm, Danger, Bypass, Power, Fault
- Configuration: 3500 Configuration Software / TDXnet
- Temp Range: -30°C to +65°C (Verify with OEM)
- Application: API 670 Compliant Machinery Protection
Product Introduction
Vibration monitors scream, but relays act. The 125720-01 is the muscle behind the 3500/32M designation. It takes the logic from your 3500/42M vibration card or 3500/45 position card and physically closes a contact to trip the turbine or alert the DCS. If this card fails, your machine protection is blind. No software workaround. No virtual relay. Just a silent, dangerous open circuit.
Why does this specific part number matter? It’s a 4-channel module. Some older or regional variants were 2-channel or 8-channel. The 125720-01 fits the standard 3500 rack slot and handles the “Trip” logic that actually shuts down the asset. Honest warning: These are aging. The internal relays have mechanical life limits. If you’ve had multiple trips in the last year, the coil might be weak even if the LED says “OK.” Test the contact resistance under load, not just continuity.
Troubleshooting Quick Reference
- Relay Won’t Close / No Trip: 80% chance it’s the logic configuration or a blown fuse on the backplane. Check the 3500 Config software: Is the relay mapped to the correct channel? Is “Bypass” active?
- LED On, But No Voltage at Terminal: Relay contact welded open or coil failed. Measure voltage at the terminal block, not the LED. If LED is green but terminal is dead, the relay is toast.
- Intermittent Trips: Loose backplane connection or ground loop. Reseat the module. Check the rack ground strap. Vibration from the turbine itself can loosen these cards over time.
- All LEDs Off: Backplane power failure. Check the 3500/15 Power Supply. Measure 24VDC at the backplane test points. If power is good, the module is dead.
- Configuration Won’t Download: TDXnet communication error. Verify the 3500/20 RIM or 3500/22 TDI is healthy. Check the rack address dip-switches.

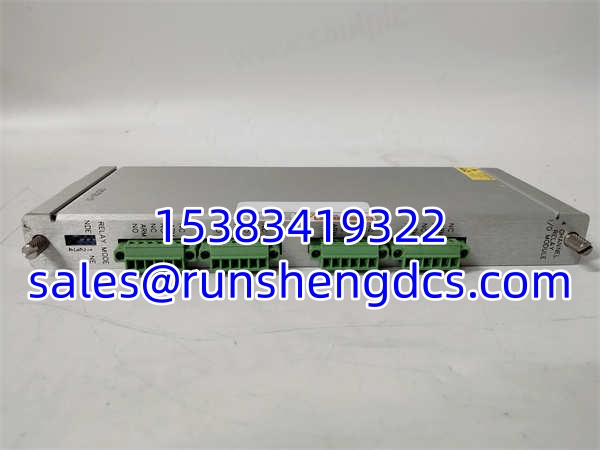

BENTLY 125720-01
Application Scenarios & Pain Points
- Steam Turbine Trip Logic: Driving the ESD solenoid. If the relay sticks, the turbine overspeeds. If it fails to close, the turbine won’t start. The 125720-01 is the single point of failure between “safe” and “catastrophic.”
- Centrifugal Compressor Vibration: High-frequency vibration can fatigue relay contacts. Standard relays might fail in 2 years; these are spec’d for 10+, but verify the trip count in the System 1 software.
- Legacy Refinery Pumps: Original 3500 racks from the 90s. Relay modules are failing faster than the monitors. Sourcing 125720-01 is a race against time.
Compatible Replacement Models
- ✅ Drop-in Replacement: 125720-01 (Exact match). 3500/32M is the functional name; 125720-01 is the ordering code. No config changes.
- ⚠️ Software Compatible: 3500/33M (16-Channel). Same rack, same software, but 4x the channels. Requires re-mapping in 3500 Config. More expensive, but future-proof. Budget 4 hours for engineering.
- ❌ Hardware Incompatible: 3300/16 Relay Module. Different form factor. Different backplane. Different voltage. Will not fit the 3500 rack. Do not buy this expecting a retrofit.
