Description
Key Technical Specifications
- Model Number: TB711F
- Order Code: 3BDH000365R0001
- Manufacturer: ABB
- Series/System: AC700F / Freelance 800F
- Module Type: CPU / Communication Terminal Base
- Compatible Modules: PM783F CPU, CI/CM PROFIBUS Modules
- Power Input: 24 VDC
- Communication: 1x Fieldbus Slot, Ethernet RJ45
- Serial Interfaces: COM 1, COM 2
- Dimensions: 95.5mm (W) x 135mm (H) x 30mm (D)
- Weight: 0.175 kg
Functional Role & Application Analysis
The ABB TB711F is the foundational mounting and connection point for the “brain” of an AC700F controller. You cannot install a PM783F CPU or a PROFIBUS communication module without it. This base provides the critical 24 VDC power, the Ethernet RJ45 port, the serial COM ports, and the fieldbus slot. It also handles the physical termination of the PROFIBUS network. A failed or corroded base can mimic a CPU failure, causing hours of wasted troubleshooting.
This terminal base is essential in these scenarios:
- CPU Replacement: Swapping out a failed PM783F processor requires a verified, functional TB711F base.
- PROFIBUS Integration: Installing a CI783 or CM783 communication module to connect the AC700F controller to a plant-wide fieldbus.
- Network Troubleshooting: Replacing a base with suspected internal damage causing intermittent Ethernet or serial communication failures.
- Legacy System Maintenance: Sourcing exact replacements for aging AC700F systems where the original bases have suffered from environmental corrosion or connector wear.
Our Quality Standard & Testing Process
A terminal base is not just a plastic connector. It contains power regulation and signal conditioning. A marginal base can cause random CPU resets or communication timeouts. We test every TB711F to verify its electrical integrity.
- Visual & Component Inspection: We inspect the RJ45, COM port, and fieldbus connectors for bent pins, corrosion, and physical damage. We check the PCB for cracked solder joints or thermal stress.
- Live System Test: The base is installed in an AC700F test rack with a known-good PM783F CPU and powered up for a continuous burn-in to verify stable 24 VDC delivery.
- Full-Function Diagnostics: We verify Ethernet link lights, test serial port handshakes on COM 1 and COM 2, and confirm fieldbus slot continuity. We check for proper PROFIBUS termination resistor function if applicable.
- Warranty Backing: Only bases that pass all electrical and communication diagnostics ship with our 12-month warranty. Any unit with questionable connectors is rejected.

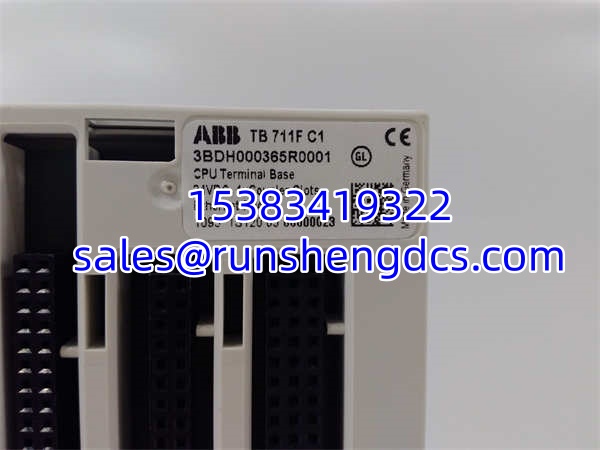

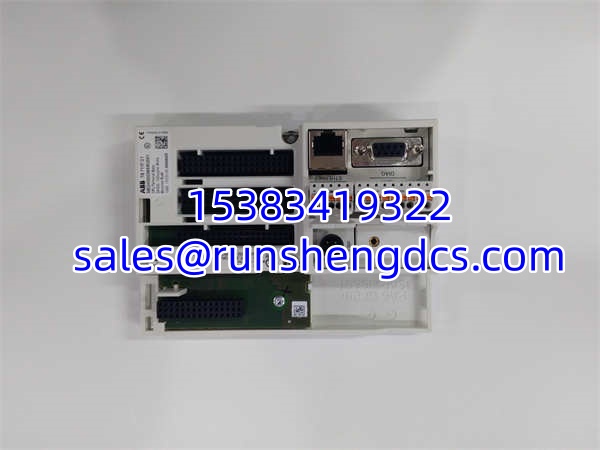

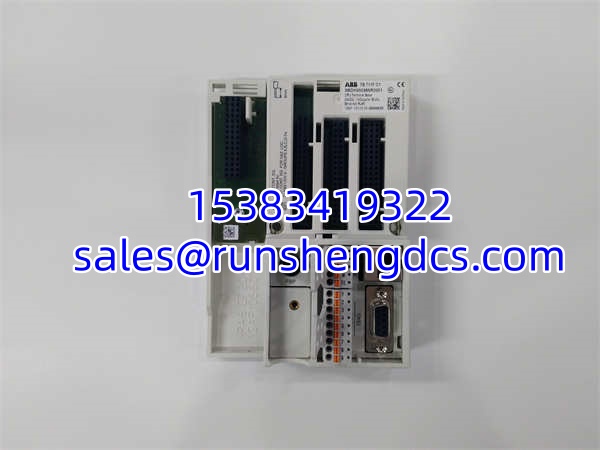

ABB TB711FC1 3BDH000365R0001
Compatibility & Migration Paths
The TB711F is specific to the AC700F platform. Do not confuse it with AC800F or other ABB bases. Verify these points before ordering:
- Module Compatibility: This base is designed for PM783F CPUs and CI/CM PROFIBUS modules. It is NOT compatible with PM8xxF or other AC800F processors.
- Order Code Verification: Confirm your required order code is 3BDH000365R0001. While TB711F is the model, the full order code ensures you get the correct revision and configuration.
- Physical Condition: Inspect your existing base’s connectors before ordering. If the RJ45 port is loose or the COM ports are corroded, replace the base during your CPU swap to prevent future issues.
- PROFIBUS Termination: If using for PROFIBUS, verify the base has the correct termination resistors installed or that you have external terminators. Incorrect termination is a common cause of fieldbus errors.
- Get Expert Help: Unsure if your existing CPU or communication module is compatible with this base? Contact our technical team with your module’s catalog number for a free compatibility check.
