Description
Key Technical Specifications
- Manufacturer: ABB
- Product Family: S800 I/O System — Communication Interface Units
- Model: SPIET800
- Function: Ethernet Communication Interface Unit (CIU) for S800 I/O
- Ethernet Interface: 10/100Base-TX, standard RJ45 connector
- Power Supply: 24V DC industrial power rail
- Mounting: 35mm DIN-rail or panel mount
- Diagnostics: LED indicators for power, link status, and data activity
- Field I/O: None — purpose-built for network communication only, no direct process I/O channels
- Network Topology: Supports star and ring layouts with managed industrial switches
- Target Systems: ABB Ability System 800xA, Symphony Plus
- Operating Temperature: -20°C to +60°C (typical industrial range)
- Protection Rating: IP20
Product Introduction
Your S800 I/O rack is sitting on the plant floor, fully wired with analog and digital modules, but it has no path to talk to the 800xA controller over Ethernet. The SPIET800 is the bridge that solves that problem — a compact communication interface unit that plugs into the S800 I/O bus and provides a standard 10/100Base-TX Ethernet port for controller-to-network data exchange. No field I/O. No analog inputs. Just clean Ethernet connectivity between your distributed I/O and the control network.
This module shows up in power generation, oil and gas, chemical processing, and water/wastewater plants where ABB’s S800 I/O system needs to integrate into an Ethernet-based control architecture. The 24V DC power draw is low enough that it does not stress your cabinet power budget, and the diagnostic LEDs let you confirm link and activity status without pulling up a laptop. Surplus distributors list it in the 600–700 range — though pricing fluctuates based on availability and supplier.
Troubleshooting Quick Reference
| Fault | Likely Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| No link LED lit | Ethernet cable fault, wrong cable type, or switch port down | High (80%) | Swap cable; check switch port status; verify 10/100 auto-negotiation | Replace cable; try a known-good switch port; confirm straight-through vs. crossover |
| Link LED on but no data activity | IP misconfiguration or controller not polling the CIU | High (75%) | Check activity LED during expected communication; verify IP/subnet in controller config | Confirm IP settings match network scheme; verify controller is configured to communicate with this CIU |
| Module not powering up | 24V DC supply absent or out of range | High (70%) | Measure voltage at module power terminals with multimeter | Verify 24V DC is present and within ±10% tolerance; check upstream fuse/breaker |
| Intermittent communication drops | EMI on Ethernet cable or loose RJ45 connector | Medium (60%) | Inspect cable routing near VFDs or high-current conductors; reseat RJ45 | Reroute cable away from noise sources; use shielded Ethernet with proper grounding |
| S800 I/O modules not responding through CIU | Backplane bus communication failure between CIU and I/O modules | Medium (55%) | Check if I/O modules show local fault LEDs; verify CIU is seated properly on the bus adapter | Reseat CIU; verify bus terminator is installed at end of I/O segment |

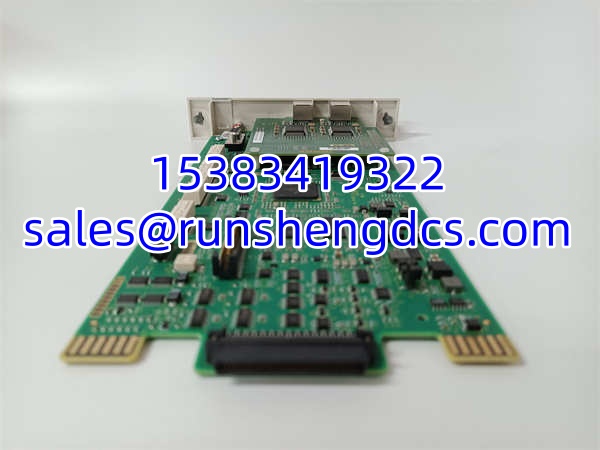

ABB SPIET800
Application Scenarios & Pain Points
- : Multiple I/O racks spread across the turbine hall need to report back to a central 800xA controller. The SPIET800 gives each rack an Ethernet uplink, but the pain point is IP address management — if your network team changes the subnet scheme during a plant IT upgrade, every CIU needs reconfiguration or you lose visibility into entire I/O segments.
- Oil and gas compressor station retrofit: An existing I/O system built on legacy fieldbus needs Ethernet connectivity added for a new HMI upgrade. The SPIET800 slots in without replacing the I/O modules, but the challenge is fitting the Ethernet cable routing through conduit runs originally designed for serial fieldbus cabling.
- Water treatment SCADA integration: A municipality adds ABB I/O to an existing SCADA system. The SPIET800 handles the Ethernet handoff, but the pain point is getting the managed switch configured correctly for the ring topology — one misconfigured port and the entire I/O segment drops off the network.
- Chemical batch processing with digital marshalling: on Ethernet allows any I/O module to be software-mapped to any controller on the network. The SPIET800 enables this flexibility, but the commissioning effort increases — your I/O configuration in 800xA must match the physical module placement exactly, or you end up reading the wrong process variable on the wrong faceplate.
