Description
Key Technical Specifications
- Model Number: SPHSS03
- Manufacturer: ABB / ASEA BROWN BOVERI
- Series: Bailey INFI 90 / Symphony DCS
- Module Type: Hydraulic Servo Submodule
- Core Function: Precision Motion and Pressure Regulation
- Dimensions: 297.18 mm x 175.26 mm x 35.56 mm
- Control Type: Programmable Closed-Loop Servo
- Integration: Direct Backplane Mounting
- Diagnostics: Built-in Hardware Fault Detection
- Application Focus: Heavy Duty Industrial Hydraulics
Functional Role & Application Analysis
The ABB SPHSS03 serves as the critical brain behind high-performance hydraulic systems within the Bailey DCS architecture. It directly addresses the demanding requirements of precise motion and pressure regulation in heavy industrial processes. This module takes analog setpoints from the main controller and translates them into accurate servo valve commands. It solves the problem of sluggish or unstable hydraulic actuation, ensuring that heavy machinery responds exactly when and how it should.
Typical use cases for this module include:
- Steel Rolling Mills: Controlling roll gap adjustments and hydraulic press forces with millimeter-level precision.
- Paper Manufacturing: Regulating nip pressure and web tension in high-speed paper machines.
- Power Generation: Managing turbine steam valve positioning for optimal load response.
- Plastics Injection Molding: Executing precise clamp movements and injection pressure profiles.
- Legacy System Maintenance: Replacing failed servo cards in aging Bailey INFI 90 systems where OEM support has ceased.
Our Quality Standard & Testing Process
Hydraulic servo modules operate under extreme stress. A marginal failure can cause catastrophic machine damage or severe safety incidents. We do not trust visual inspections alone. Every SPHSS03 we sell goes through a comprehensive validation process designed specifically for analog and servo control hardware.
- Visual & Component Inspection: Technicians perform a deep clean and microscopic examination. We check for thermal stress, cracked solder joints, and degraded electrolytic capacitors common in legacy boards.
- Live System Test: The module is installed in a live Bailey test rack. We verify backplane communication and continuous operation for a minimum of 24 hours under load.
- Servo Loop Diagnostics: We inject simulated feedback signals and verify the module’s ability to calculate error and drive servo valve outputs accurately across the full range.
- Analog Channel Verification: We validate all analog input and output channels for correct scaling, linearity, and zero-offset accuracy.
- Warranty Backing: Only modules passing every diagnostic step are approved for shipment and backed by our full 12-month warranty.

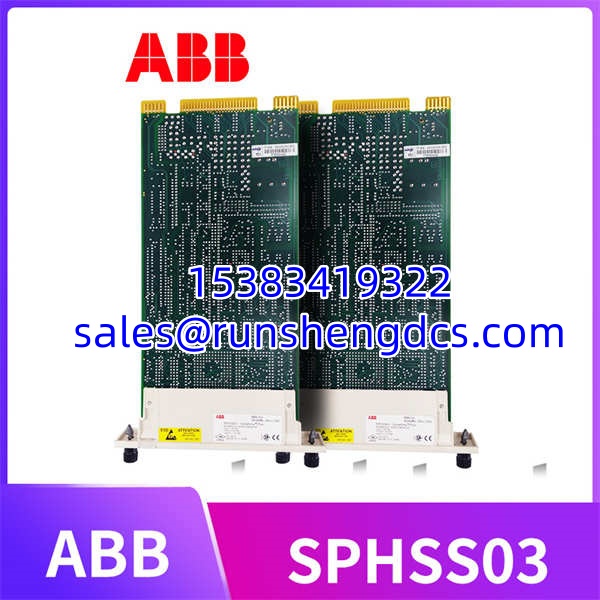

ABB SPHSS03
Compatibility & Migration Paths
Bailey INFI 90 hardware is highly sensitive to configuration and revision mismatches. Installing an incompatible servo module will prevent your hydraulic loops from closing. You must verify these exact parameters before ordering.
- Hardware Revisions: Check the exact revision code on your existing SPHSS03. Even minor revision changes can alter internal firmware or signal conditioning.
- Parent Module Compatibility: The SPHSS03 is a submodule. Verify it is designed to plug into your specific parent carrier module (e.g., IMHSS03).
- Servo Valve Type: Confirm your field servo valve matches the output type (current vs. voltage) supported by this specific SPHSS03 revision.
- Configuration Software: Ensure your Symphony/INFI 90 configuration tool supports the exact firmware version embedded in the replacement module.
- Get Expert Help: Legacy servo replacements are high-risk. Send us a photo of your current module, parent carrier, and valve specs. Our engineers will verify exact compatibility before you order.
