Description
Key Technical Specifications
- Product Family: ABB Pulse Encoder Interface Board
- Compatible Drives: ACS800, ACS550, DCS800 Series
- Encoder Power Output: +15V or +24V DC (selectable via jumper)
- Internal Power Supply: 5W maximum (without external supply)
- Installation Slot: SLOT 1 or SLOT 2 on RMIO Board
- Connector Type: 38-pin Automatic Signal and Power Connector
- Mounting Hardware: Plastic retaining clips + 2 M3x8mm screws
- Grounding: Screws provide I/O cable shield earthing and GND interconnect
- Alternative Mounting: AIMA-01 I/O Module Adapter (DIN rail mountable)
- Power Consumption: Dependent on motor speed, encoder PPR, and cable length
- Physical Dimensions: 3.7 x 2.5 x 1.95 inches (94 x 63.5 x 49.5 mm)
Product Introduction
When a drive loses encoder feedback, it loses its eyes. The ABB RTAC-01 is the critical bridge between the motor shaft and the ACS800/DCS800 drive’s control logic. Slotted directly into SLOT 1 or SLOT 2 on the RMIO board, this module translates raw digital pulses into precise speed and position data. Without it, your vector control loops collapse, and the drive defaults to open-loop operation or trips on a feedback loss fault.
Why keep this specific board in your spares inventory? Because encoder cables get chewed up, and the RTAC-01’s internal 5W power supply is often the first casualty of a shorted cable. The module features a jumper to select +15V or +24V for the encoder, giving you flexibility for different motor setups. It auto-connects via a 38-pin backplane connector, meaning a field swap takes minutes. Bottom line—if your drive is throwing encoder faults and the motor is fine, this is usually the culprit.
Troubleshooting Quick Reference
- Fault: Drive trips on “Encoder Feedback Loss” / Motor runs open-loop | Cause: 70% chance of broken cable or failed RTAC-01 | Relevancy: High | Quick Check: Measure encoder power at the module terminals (+15V or +24V) | Fix: If no voltage, check the 5W internal supply or jumper setting. If voltage is good, replace the encoder cable.
- Fault: Erratic speed control / Motor hunting | Cause: 60% chance of EMI on encoder signal or loose shield ground | Relevancy: Medium-High | Quick Check: Verify the two M3 screws are tight and grounding the shield | Fix: Reseat the module. Ensure the I/O cable shield is properly terminated. Check encoder PPR parameter.
- Fault: Module powers up but no signal passes | Cause: 50% chance of incorrect slot assignment or jumper misconfiguration | Relevancy: Medium | Quick Check: Verify module is in SLOT 1 or SLOT 2 on RMIO board | Fix: Confirm encoder voltage jumper matches the connected encoder spec (+15V vs +24V).
- Fault: RTAC-01 gets excessively hot | Cause: 80% chance of encoder cable short or excessive power draw | Relevancy: High | Quick Check: Disconnect encoder cable, measure resistance between power and signal pins | Fix: Internal 5W supply is overloaded. Replace cable first, then module if needed.
Application Scenarios & Pain Points
- High-Precision Winding and Web Tension Control: Position feedback accuracy is non-negotiable. The RTAC-01’s clean pulse processing ensures the ACS800 maintains exact motor positioning, preventing web breaks or tension spikes.
- Harsh Industrial Environments: VFDs generate massive EMI. The module’s grounding screws and shield interconnect are critical for rejecting noise. Without proper grounding, encoder signals become garbage.
- Legacy Drive Retrofits: Many DCS800 and ACS550 systems are still running in aging plants. Finding replacement encoder boards is getting harder. Keeping RTAC-01 spares prevents weeks of downtime waiting for obsolete parts.
- Real-World Case: A steel mill had a recurring encoder fault on an ACS800 driving a roll table. They replaced three modules in six months. The actual root cause was a 40-meter encoder cable running parallel to a 400V motor cable without proper shielding. The induced noise was frying the module’s input stage. Fixing the cable routing eliminated the failures. Always check installation practices before blaming the module.

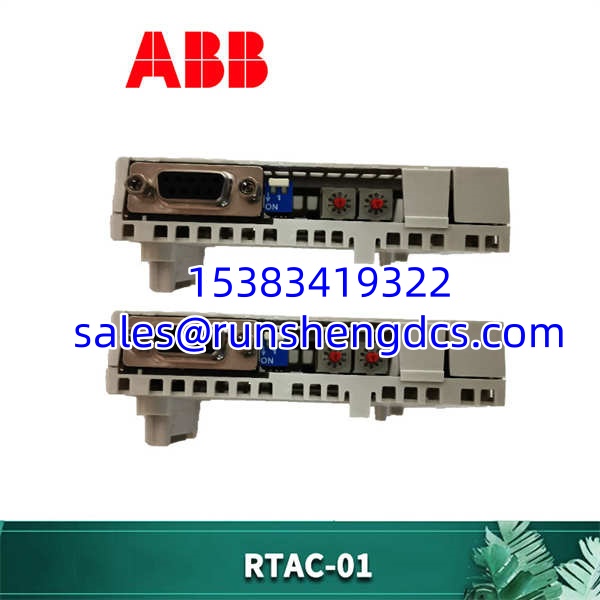

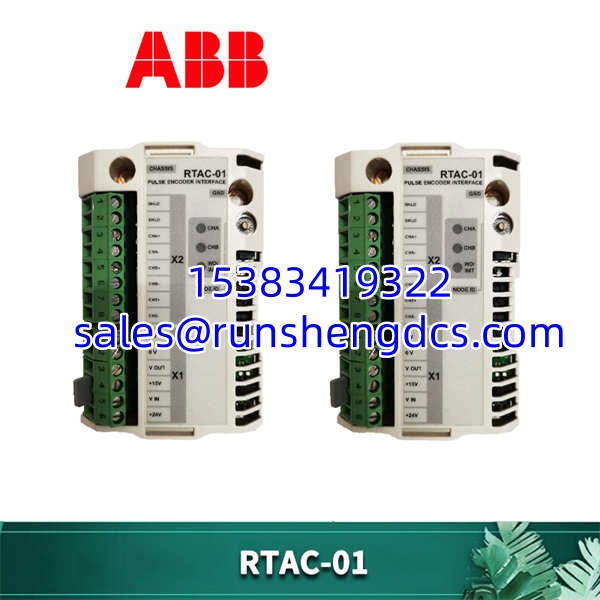

ABB-RTAC-01
Compatible Replacement Models
- ✅ Drop-in Replacement: (Exact Match). Direct mechanical and electrical swap. No parameter changes required. Labor: 15 minutes for physical swap and encoder verification.
- ⚠️ Software Compatible: RTAC-03 (3ABD68654947). This is the TTL (+5V) variant of the pulse encoder interface. WARNING: Only compatible if your encoder uses TTL signals. The is +15V/+24V. Verify encoder output type before substituting. Labor: 30 minutes for fitment and parameter verification.
- ❌ Hardware Incompatible: FEN-11 / FEN-21 / FEN-31. These are newer ACS880/DCS880 series encoder interface modules with different backplane connectors and form factors. They will NOT physically fit in an ACS800 RMIO board. Do not attempt to use these as replacements.
