ABB REF601 CE446BB1NH | Relion 605 Feeder Protection Relay, Surplus

Description

Key Technical Specifications

Product Introduction

The REF601 CE446BB1NH is a digital feeder protection and control relay from ABB’s Relion 605 series. It is designed for primary and secondary distribution networks, providing protection, measurement, and breaker control for cable feeders, overhead lines, and transformer feeders in grounded, resistance-grounded, or ungrounded systems.

This is not a PLC, not a DCS controller, and not a general-purpose automation module. It is a protection IED. Its logic is oriented toward fault detection, trip coordination, reclosing, and feeder measurement — not process sequencing. In the field, REF601 units commonly appear in MV switchgear, industrial substations, and utility distribution panels. Replacement risk centers on mismatched communication settings, CT ratio, trip logic, and auto-reclose configuration. Bottom line — treat it as a protection-class device that requires setting verification, communication protocol confirmation, and trip logic review before energizing.

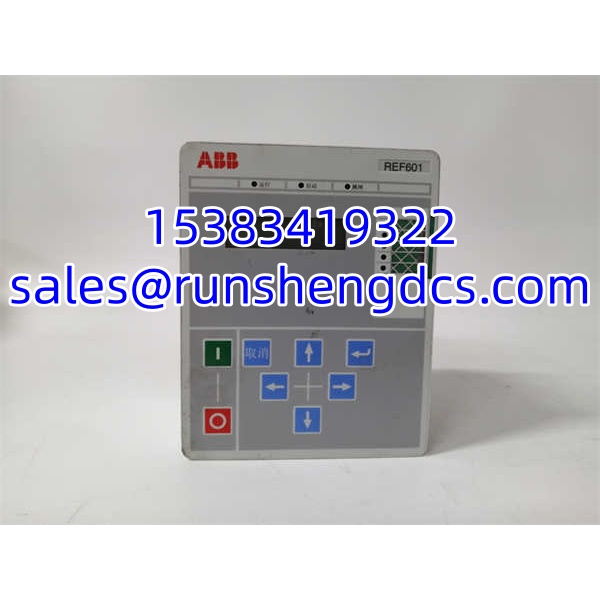

ABB REF601 CE446BB1NH

QA/QC Transparency SOP

1. Intake & Origin Verification
   Confirm model REF601 CE446BB1NH, ABB labeling, serial number, firmware version, and auxiliary supply rating. Cross-check against photos of the installed switchgear and wiring diagram.
2. Visual & Mechanical Inspection

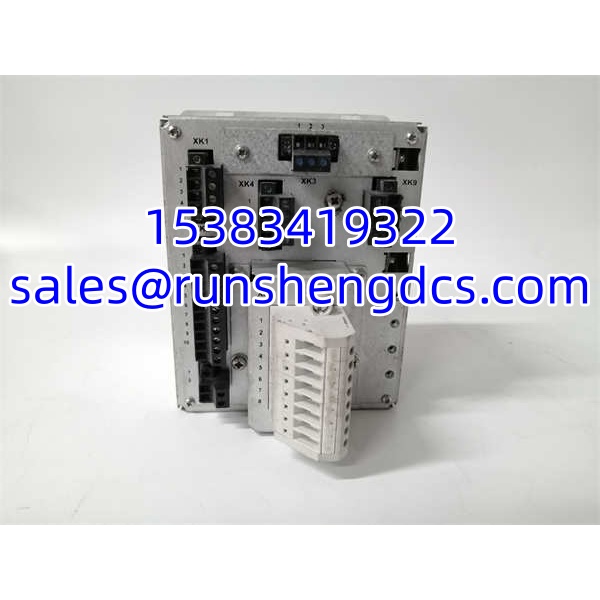

   Check the front HMI, terminal block, connector pins, and mounting latches. Verify no signs of overheating, corrosion, or terminal damage.
3. Power-Up & Self-Test
   Apply rated auxiliary supply and verify normal start-up, display operation, and internal self-diagnostics. Record any fault or warning messages.
4. I/O & Communication Verification
   Verify binary input/output response, trip output operation, and communication interface availability. Confirm Modbus RTU or IEC 60870-5-103 settings match the host SCADA or gateway configuration.
5. Setting & Trip Logic Review
   Archive existing protection settings, CT/VT ratios, trip curves, and auto-reclose parameters. Do not assume factory defaults match the installed scheme.
6. Final QC & Packaging
   Document all observations, photograph nameplate and terminals, then pack in anti-static shielding with moisture protection. Surplus units ship with clear condition notes.

Field Engineer Gotchas

• It is a protection relay, not a PLC.
  Risk: Trying to download ladder logic or treat it as an automation controller.
  Fix: REF601 runs protection and control functions, not IEC 61131-3 programs.
  War story: A technician assumed the REF601 could be programmed like a PLC after a trip event. The real issue was a changed CT ratio and reclose setting, not missing logic.
• CE446BB1NH is a variant code.
  Risk: Assuming all units are identical.
  Fix: Verify the exact I/O, communication module, CT/VT interface, and firmware on the nameplate.
  Blunt take: Two relays with different suffix codes may not be drop-in replacements.
• Communication protocol must match.
  Risk: Connecting Modbus RTU to an IEC 60870-5-103 network, or vice versa.
  Fix: Confirm the active protocol, baud rate, address, and wiring before integration.
  Field note: Half of “IED not talking to SCADA” issues are protocol or addressing mismatches.
• Trip logic and reclose settings are critical.
  Risk: Installing a relay with unknown protection settings.
  Fix: Download and archive settings before removal. Restore verified settings or re-commission according to the protection study.
  Simple rule: Never energize a replacement feeder relay without confirming trip and reclose parameters.
• CT/VT ratio mismatch.
  Risk: Incorrect current or voltage measurement causing false trips or missed faults.
  Fix: Verify CT/VT primary and secondary ratings in the relay settings.
• Auxiliary supply range.
  Risk: Applying the wrong control voltage.
  Fix: Confirm the installed unit’s auxiliary supply rating. The family supports a wide AC/DC range, but the exact nameplate rating must be checked.

ABB REF601 CE446BB1NH

Application Scenarios

• Medium-voltage switchgear requiring replacement of a feeder protection relay in an industrial substation.
• Utility distribution feeders where Modbus RTU or IEC 60870-5-103 integration is required.
• Transformer feeder protection where inrush monitoring and overcurrent coordination are needed.
• Retrofit projects maintaining existing Relion 605 architecture without migrating to a newer IED platform.

FAQ

• Is CE446BB1NH a PLC or DCS module?
  No. It is a feeder protection and control relay from the ABB Relion 605 series.
• What protection functions does it provide?
  Overcurrent, earth fault, phase discontinuity, overload protection, and inrush monitoring, plus breaker control and auto-reclose.
• What communication protocols does it support?
  Modbus RTU and IEC 60870-5-103 via RS-485.
• Can any replace CE446BB1NH?
  Not automatically. The variant code affects I/O, communication, and configuration. Verify the nameplate and installed settings.
• Is it still in production?
  The Relion 605 series is a legacy product family. Availability depends on surplus stock and project spares.
• Is surplus stock safe to use?
  It can be, if the nameplate, firmware, communication option, protection settings, and I/O configuration are verified. Do not install untested surplus in a live protection scheme.
• What is the lead time?
  Availability varies with surplus inventory. Confirm variant code, firmware, and setting records before committing to a maintenance window.
