Description
Key Technical Specifications
- Product Model: REF542plus SACE750090R0002
- Manufacturer: ABB
- Application: Medium Voltage Feeder, Transformer, Motor Protection
- Communication Protocols: IEC 61850, IEC 60870-5-103, Modbus
- Protection Functions: Up to 24 programmable functions via software

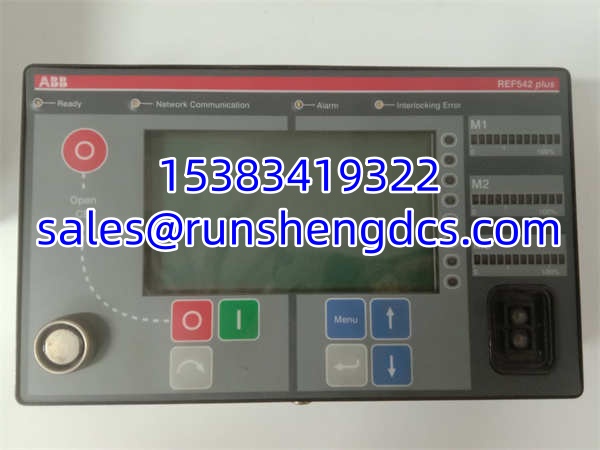

- HMI Design: Split architecture (Separate Host & Display Panel)
- Mounting: Semi-flush on LV door; Host in LV compartment
- Dimensions (Host): 185 x 244.8 x 261.5 mm (Standard)
- Panel Cutout: 206 x 121 mm
- Connectors: Harting DIN 41612 (I/O), Weidmüller (Power), D-Sub (Comms)
- Self-Diagnostics: Continuous internal hardware monitoring
Product Introduction
Medium voltage switchgear reliability hinges on the bay controller. The ABB REF542plus SACE750090R0002 integrates protection, control, and measurement into a single digital package, eliminating the need for separate relays and meters. It’s the brain inside your feeder panel, handling everything from overcurrent trips to SCADA communication. If this unit fails, your feeder is blind and unprotected.
This specific SKU supports IEC 61850, making it viable for modern substation automation upgrades without ripping out the primary switchgear. The split HMI design is a field-saver—you can mount the display on the door while the host sits in the compartment, saving valuable panel space. Bottom line—it’s a workhorse, but since it’s been inactive since 2020, verify your firmware version against the latest MEU release notes before installing.
Troubleshooting Quick Reference
| Fault Symptom | Probable Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| Blank HMI Display | HMI Power Loss | 90% | Measure 24V DC at HMI connector | Check separate HMI power fuse |
| Comm Loss (SCADA) | Protocol Mismatch | 85% | Verify IEC61850 SCL file | Reload config; check IP/Gateway |
| False Trip Event | CT Saturation / Noise | 75% | Check CT burden & wiring | Verify CT polarity & burden rating |
| “Hardware Fault” LED | Internal Board Failure | 80% | Power cycle; check logs | Replace ABB REF542plus SACE750090R0002 |
| Intermittent I/O | Loose Harting Connector | 70% | Reseat X20-X41 connectors | Clean pins; check crimp quality |
Application Scenarios & Pain Points
- Industrial Power Distribution: High harmonic loads from VFDs can cause false zero-sequence trips. The ABB REF542plus SACE750090R0002 has programmable filtering, but if your THD exceeds 5%, you’ll need to adjust the harmonic restraint settings. Don’t just blame the relay.
- Substation Retrofit: Upgrading from legacy REF542? The ABB REF542plus SACE750090R0002 is the recommended replacement. An engineer at a German utility swapped 40 units in one outage using the MEU kit—wiring harnesses were reused with only minor adapter tweaks. Saved 3 days of downtime.
- Motor Protection Centers: Frequent starts cause thermal accumulation errors. The ABB REF542plus SACE750090R0002 thermal model is accurate, but only if you input the correct motor thermal capacity and cooling time constants. Garbage in, garbage out.
- Remote Telemetry Sites: Communication dropouts are common. The supports store-and-forward, but if your RS485 bus is too long or unshielded, no amount of buffering will save you. Keep bus length under 1200m at 9600 baud.

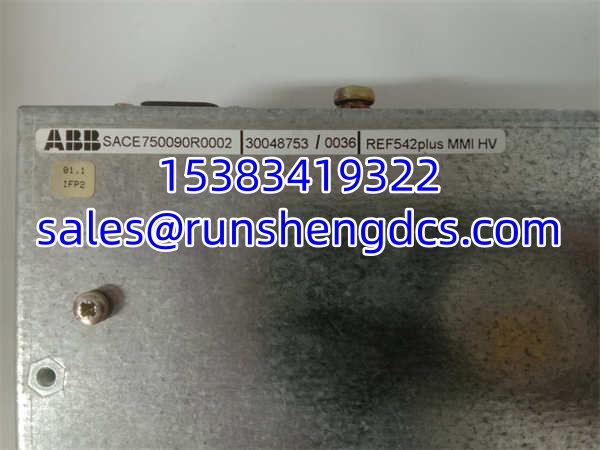

ABB SACE750090R0002 REF542plus
Compatible Replacement Models
- ✅ Drop-in Replacement: REF542plus (Latest Firmware). Same base. Use the Maintenance Exchange Unit (MEU) service to get a pre-configured unit with your existing settings migrated. Zero wiring changes.
- ⚠️ Software Compatible: REF615. Same IEC 61850 stack, similar logic. WARNING: Requires panel cutout modification (slightly larger). Wiring harness needs adapter. Budget 4-6 hours per panel for mechanical and electrical adaptation.
- ❌ Hardware Incompatible: REF610. DO NOT INSTALL. Different I/O connector layout and bus architecture. The Harting connectors will not mate. Requires complete rewiring.
