Description
Key Technical Specifications
- Manufacturer: ABB
- Module Type: Human-Machine Interface (HMI)
- Display Technology: 5.7-inch Monochrome LCD (Blue)
- Mounting Style: Door-mounted or adjacent standalone installation
- Connection Type: Shielded twisted pair cable to main unit
- Power Supply: Independent power source (separate from main unit)
- Protection Rating: IP51 (Front Panel)
- Operating Temperature: -25°C to +70°C
- Language Support: Graphical interface with Chinese and English support
- Local Control: Physical buttons for breaker open/close operations
- Dimensions: 23 mm x 100 mm x 120 mm (approximate panel footprint)
- Weight: ~0.4 kg
Product Introduction
You’re standing in front of a metal-clad switchgear lineup, and the operator needs to manually trip a feeder breaker while the main relay is buried in the back of the cabinet. That is exactly what the ABB REF542plus 1VCR007346-G0012 HMI panel solves. It is the physical face of the relay, mounted directly on the switchgear door. It translates complex digital protection data into a readable graphical format and provides tactile pushbuttons for local switching operations.
Why does this specific display matter during a fault? Because when a feeder trips, you don’t want to open the high-voltage cabinet door just to read an event log. This 5.7-inch blue LCD operates independently from the main relay unit, connected only by a shielded twisted pair. It draws its own power, meaning a main unit failure won’t necessarily kill your local visibility. Bottom line—it gives field operators safe, localized visibility and control without exposing them to the primary bus.

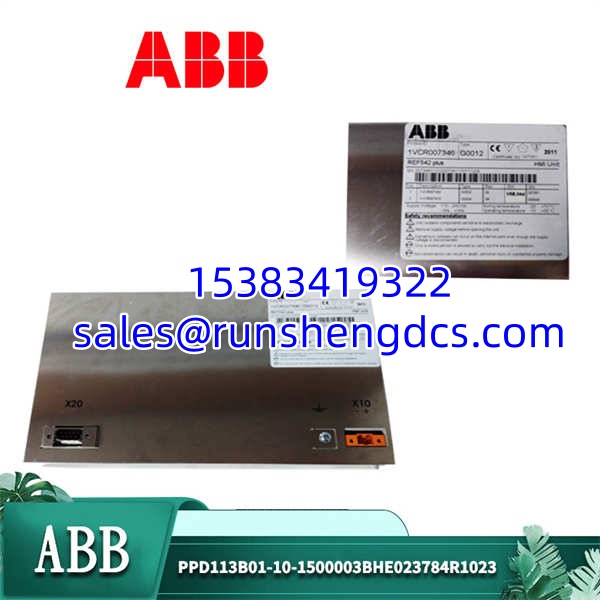

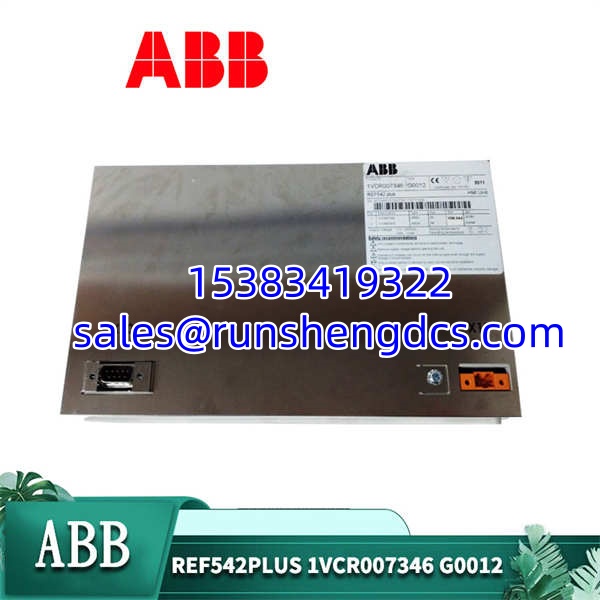

ABB-REF542plus-1VCR007346-G0012
Troubleshooting Quick Reference
- Display is Completely Blank: No power to the HMI. Measure voltage at the HMI’s independent power terminals. 80% chance it’s a blown fuse or a tripped local 24V DC supply.
- Screen Shows Data but Buttons Don’t Work: Keypad membrane failure or local control is inhibited. Check if the relay is in “Remote Only” mode via the DCS. If local control is enabled, the membrane might be delaminating.
- Garbled Characters or Horizontal Lines: LCD degradation or ribbon cable issue. Reseat the shielded twisted pair connection at the back of the panel. If the lines persist, the LCD backlight or driver board is failing.
- “Comm Fail” to Main Unit: Display is powered but can’t talk to the relay. Verify continuity on the shielded twisted pair. Ensure the shield is grounded at only one end to prevent ground loops.
- Blank Screen After Power Loss: HMI boot failure. Cycle the independent HMI power supply. If it doesn’t reboot, the internal flash memory might be corrupted.
Application Scenarios & Pain Points
- Medium Voltage Switchgear: Indoor substations where operators need to verify breaker status, spring charge state, and fault currents directly at the cubicle door without opening the high-voltage compartment.
- Motor Control Centers (MCCs): Industrial plants where local operators need to manually reset motor protection relays after a thermal overload, using the physical buttons on the HMI panel.
- Harsh Industrial Environments: Steel mills or mining facilities where ambient temperatures reach +60°C. The -25°C to +70°C rating ensures the LCD doesn’t fail during summer heatwaves.

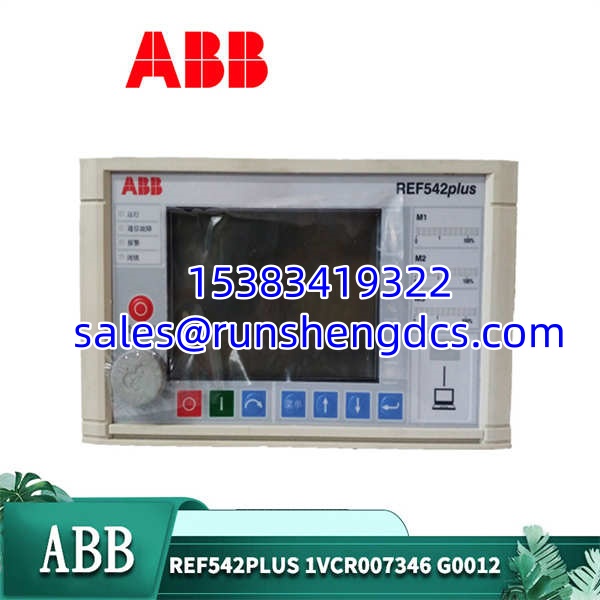

ABB-REF542plus-1VCR007346-G0012
Compatible Replacement Models
- ✅ Drop-in Replacement: REF542plus HMI Panel (Generic). The 1VCR007346-G0012 is a specific manufacturing batch of the standard REF542plus HMI. Any standard REF542plus display panel will mechanically and electrically drop in. No software changes needed.
- ✅ Drop-in Replacement: REF542plus LCD Screen (1VCR007346 variants). Different suffixes (e.g., -G0015, -G0018) typically denote minor revisions or regional language packs. The physical footprint and pinout remain identical.
- ⚠️ Software Compatible (Hardware Upgrade): REF615 HMI Panel. If you are upgrading the entire relay to a REF615, the REF615 HMI uses a similar door-mounting cutout but requires a completely new configuration file. Labor time: ~4 hours including full relay reprogramming.
- ❌ Hardware Incompatible: REF542plus Main Unit (1VCF752000). This is the relay processing unit itself. Do not attempt to substitute. The main unit contains the CPU and I/O; it does not have a display screen or local control buttons.
