Description
Key Technical Specifications
- Part Number: PPC902AE101
- Material Number: 3BHE010751R0101
- Module Type: Processor / Controller Board
- Manufacturer: ABB
- Power Supply: Supplied via system backplane (DC) — no external power connection required
- Installation: Rack-mounted plug-in board; secured with card guides/retainers in ABB cabinet
- Signal I/O: No direct field I/O — CPU handles control strategy and system communications only
- Communication: Backplane system bus; front service/maintenance access (revision-dependent)
- Operating Temperature: 0–55°C (when installed in a compliant ABB cabinet)
- Physical Dimensions: 155 mm depth × 70 mm height × 125 mm width
- Net Weight: 0.6 kg
- HS Code: 8537.10 (Programmable controllers and related control units)
Product Introduction
You’re staring at a dead ABB drive cabinet at 2 AM, the line is down, and the processor board just stopped talking to the backplane. That’s the PPC902AE101‘s job — sitting at the heart of ABB DCS nodes or drive control cabinets, running the control logic, managing system bus communications, and coordinating with dedicated I/O modules that handle the actual field signals. It doesn’t touch field wiring directly. Think of it as the brain that tells the muscle modules what to do.
This board shows up across metals and rolling mills (coordinated drives and line control), pulp and paper (machine direction control), oil and gas (compressor and utility skids), power generation (balance-of-plant subsystems), and chemical processing. Surplus pricing from China-based distributors ranges roughly US1,580–6,580 per unit depending on condition and supplier — though some listings show lower prices around US541–565 with higher MOQs. Lead times typically run 2–5 business days from Xiamen or Shenzhen stock.
Troubleshooting Quick Reference
| Fault | Likely Cause | Probability | Quick Check | Fix |
|---|---|---|---|---|
| Board shows no power/status LED | Backplane power rail failure or board not fully seated | ~55% | Measure DC voltage at backplane connector pins | Reseat board firmly; check backplane fuses and power supply output |
| System fails to boot / no program execution | Processor board failure or corrupted firmware | ~50% | Check for diagnostic LED patterns on board front edge | Replace board; reload program from backup |
| Communication loss with I/O modules | Backplane bus fault or board bus interface degraded | ~45% | Verify I/O modules show status LEDs; check backplane connectors | Reseat all modules; inspect backplane contacts for corrosion |
| Intermittent control errors under load | Thermal degradation or marginal solder joints | ~35% | Monitor board temperature; check if errors correlate with ambient heat | Improve cabinet ventilation; replace board if errors persist |
| Control logic runs but outputs don’t respond | CPU running but I/O bus communication broken | ~30% | Check individual I/O module status; verify field wiring | Isolate whether fault is CPU-side or I/O-side; replace accordingly |

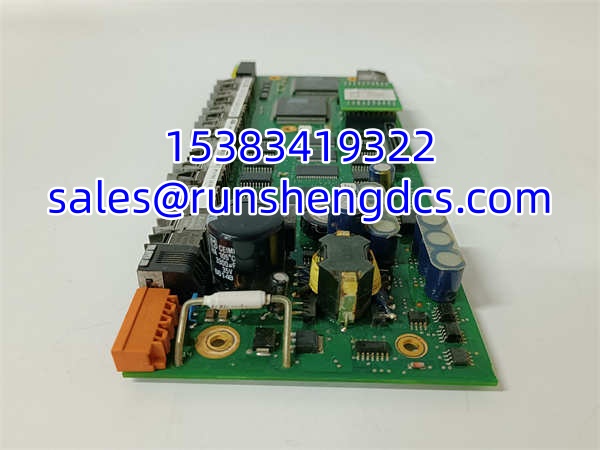

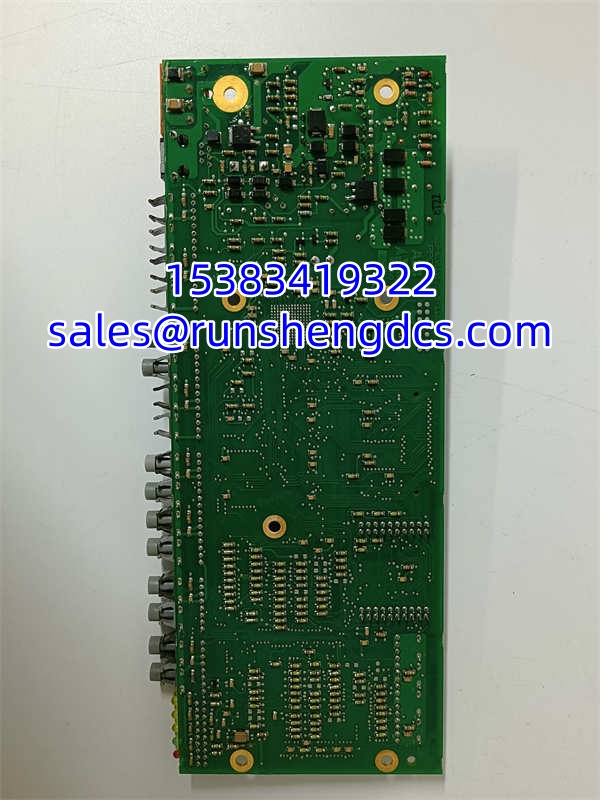

ABB PPC902AE101 3BHE010751R0101
Application Scenarios & Pain Points
- Rolling mill drive cabinet failure: A steel mill’s coordinated drive system loses its PPC902 processor mid-shift. The entire line stops. Pain point — the board is legacy, and the mill must source from surplus while verifying that the replacement’s revision matches the existing backplane configuration and firmware version.
- Power plant balance-of-plant control: A utility’s BOP subsystem relies on the PPC902 to manage auxiliary systems. The board develops intermittent communication drops with I/O modules. Pain point — the fault mimics individual I/O module failures, so the team wastes hours swapping I/O cards before tracing the root cause back to the processor board’s bus interface.
- Pulp and paper machine control retrofit: A paper machine’s direction control system needs a replacement PPC902 after a catastrophic board failure. Pain point — surplus units come with unknown history. There’s no guarantee the board hasn’t been repaired with non-OEM components or subjected to thermal stress that shortened its remaining life.
