ABB PM865K01 3BSE031151R1 | AC 800M High Integrity CPU Controller

Description

Key Technical Specifications

Product Introduction

The ABB PM865K01 3BSE031151R1 is a High Integrity CPU controller within the ABB AC 800M family. It serves as the central processing unit for System 800xA and AC 800M automation systems, executing control logic, managing I/O scanning, handling fieldbus communication, and coordinating redundancy. Unlike a simple I/O card or communication adapter, the PM865K01 is the controller itself; it holds the application program, manages task scheduling, and maintains process state.

PM865K01 is distinguished by its High Integrity capability. When paired with SM81x modules and SIL-certified software, it can support safety-related control schemes up to SIL3. The module provides dual Ethernet ports for control network connectivity, dual RS-232C ports for configuration and diagnostics, and a CompactFlash slot for application storage. Because surplus listings sometimes conflate PM865K01 with PM865K02, PM866, or standard PM864 variants, always verify the exact order number 3BSE031151R1 and the installed firmware before integration.

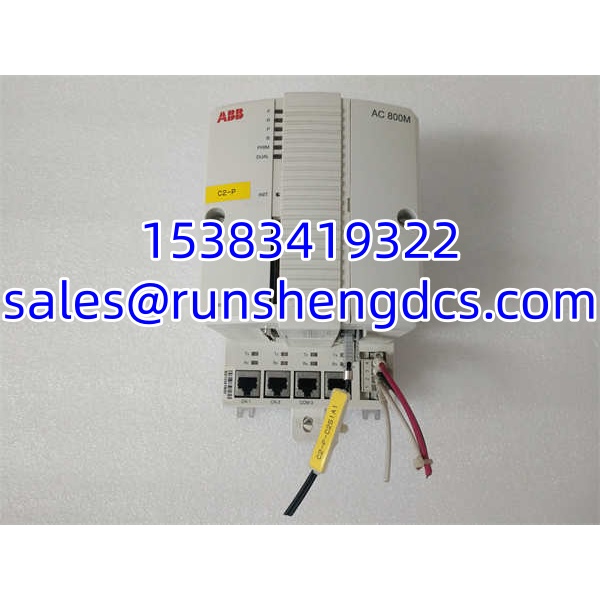

ABB PM865K01 3BSE031151R1

QA/QC Transparency SOP

1. Identity Verification — Confirm model PM865K01 and order number 3BSE031151R1 on the physical nameplate. Check serial number, firmware label, Ethernet/serial port condition, and CompactFlash slot integrity.
2. Power-Up Diagnostics — Apply correct 24 V DC supply per system specification. Verify LED status indicators, boot sequence, and absence of fault codes.
3. Communication Validation — Test both Ethernet ports for link establishment and IP configuration. Verify RS-232C ports respond to configuration tools.
4. Redundancy Check — If deployed in a redundant pair, verify synchronization status, switchover readiness, and redundancy cable integrity (TK851/TB852 type).
5. Application Integrity — Read CompactFlash content, verify application checksum, and confirm firmware compatibility with the target Control Builder M version.
6. Final QC & Packaging — Record test results, firmware version, and condition grade. Pack in ESD-safe and moisture-protected packaging with a test summary sheet.

Field Engineer Gotchas

• — K01 is the non-redundant High Integrity CPU; K02 is the redundant High Integrity variant. Substituting one for the other without updating the hardware configuration will cause redundancy faults.
• PM865 vs PM866 Confusion — PM866 is a later High Integrity controller in the same family. They are not drop-in replacements without verifying firmware, memory mapping, and Control Builder M compatibility.
• SIL3 Is Not Automatic — The is SIL3-capable, but only when configured with SM81x modules, certified software, and validated safety logic. A standard process application does not inherit SIL3 certification by default.
• Firmware/Control Builder M Compatibility — AC 800M controllers require matching firmware and Control Builder M versions. A mismatch can prevent download, cause online change failures, or trigger unexpected restarts.
• CompactFlash Corruption Risk — Power interruption during application download can corrupt CompactFlash content. Always verify application integrity after download and maintain a backup archive.
• Ethernet Port Role Misconfiguration — Both Ethernet ports can serve the control network, but incorrect IP assignment or switch configuration can break redundancy heartbeats or operator station connectivity.

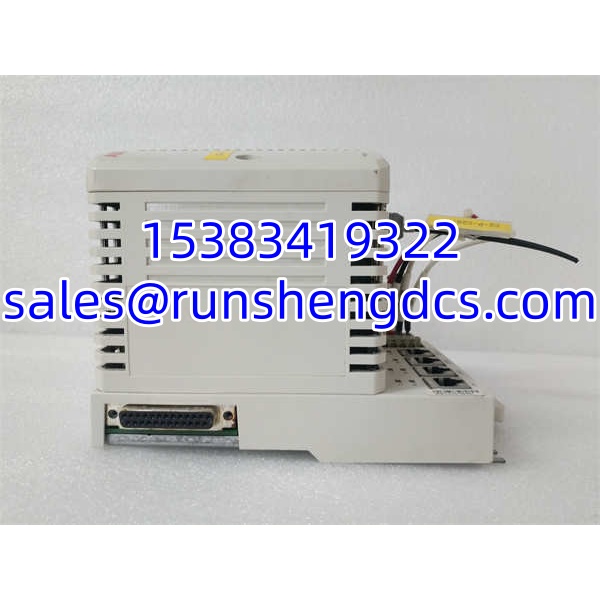

ABB PM865K01 3BSE031151R1

Application Scenarios

• Process DCS migration — Replaces legacy DCS controllers in chemical, petrochemical, or power applications where System 800xA is the target platform.
• Safety-related process loops — Deployed in High Integrity configurations for burner management, emergency shutdown, or critical interlock systems requiring SIL3 capability.
• Redundant process control — Used in redundant CPU pairs for continuous processes where unplanned downtime carries high production risk.
• Infrastructure and energy automation — Supports control tasks in power generation, water treatment, and utility systems where ABB System 800xA is already installed.

FAQ

It is an ABB AC 800M High Integrity CPU controller used in System 800xA automation systems for process control and safety-related applications.

supports redundancy, but it is the non-redundant CPU variant. PM865K02 is the redundant High Integrity variant. A redundant system requires two matched CPUs and proper configuration.

Yes, but only when configured with SM81x modules, SIL-certified software, and validated safety logic. The controller alone is -capable, not automatically -certified.

What communication interfaces does it have?
Two RJ45 Ethernet ports for control network connectivity and two RS-232C serial ports for configuration and diagnostics.

What software is required?
ABB Control Builder M is used for hardware configuration, logic programming, and application download. The firmware version must be compatible with the installed Control Builder M release.

Not without verification. PM866 is a different High Integrity controller variant. Firmware, memory mapping, and Control Builder M compatibility must be confirmed before substitution.

What should I check before buying a surplus unit?
Confirm the exact order number 3BSE031151R1, firmware version, CompactFlash condition, Ethernet/serial port integrity, and whether it has been tested in a live AC 800M rack. Request a test report showing communication, application load, and redundancy status if applicable.
