Description
Key Technical Specifications
- Processor Type: PowerPC architecture
- Clock Speed: Up to 1.1 GHz
- Working Memory: 1024 MB (1 GB) DDR2 SDRAM
- User Memory: 512 MB Flash storage
- Performance Level: High Performance (HP)
- Fastest Task Cycle: 1 ms
- Ethernet Ports: 2x RJ45 (CN1, CN2)
- Serial Ports: 2x RJ45 (COM3 RS-232C, COM4 Isolated Config)
- Redundancy: Supports CPU, CEX bus, and communication redundancy
- Protection Class: IP20
- Compatible Systems: System 800xA, Compact, Freelance
- Backplane Expansion: Supports CI854, CI867, CI871 modules
Product Introduction
You drop this board into an AC 800M rack when standard controllers choke. It handles heavy lifting in oil, gas, and chemical plants where dropping a scan cycle means lost product. Built on a 1.1 GHz PowerPC chip with 1 GB of DDR2 RAM, it processes complex logic fast. Honestly, it’s the workhorse for high-end DCS setups.
Why spec it? Downtime hurts. This module supports full CPU redundancy. If the primary board dies, the backup takes over without dropping the process. MTBF ratings are solid, and it runs hot environments without flinching. You get dual Ethernet ports and serial connections built right into the baseplate. Less wiring, fewer failure points.
Troubleshooting Quick Reference
- Fault: CPU LED shows Red/Flashing | Cause: Firmware mismatch or corrupt load | Relevancy: High (90%) | Quick Check: Connect via COM4, check Control Builder M status | Fix: Reload valid firmware or replace module
- Fault: Network Comm Loss | Cause: Bad cable or port failure | Relevancy: Medium (70%) | Quick Check: Ping CN1/CN2, swap CAT5e/6 cable | Fix: Reseat connector, test alternate port
- Fault: System Won’t Boot | Cause: Insufficient 24V DC power | Relevancy: High (85%) | Quick Check: Measure TB terminals for 24V DC under load | Fix: Check power supply capacity, replace PSU
- Fault: Intermittent Errors | Cause: Thermal throttling or dust | Relevancy: Low (40%) | Quick Check: Check cabinet fan, inspect air filters | Fix: Clean chassis, improve airflow

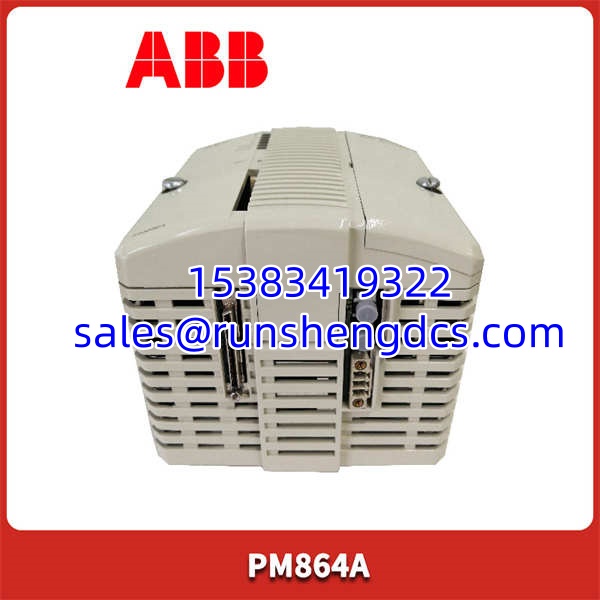

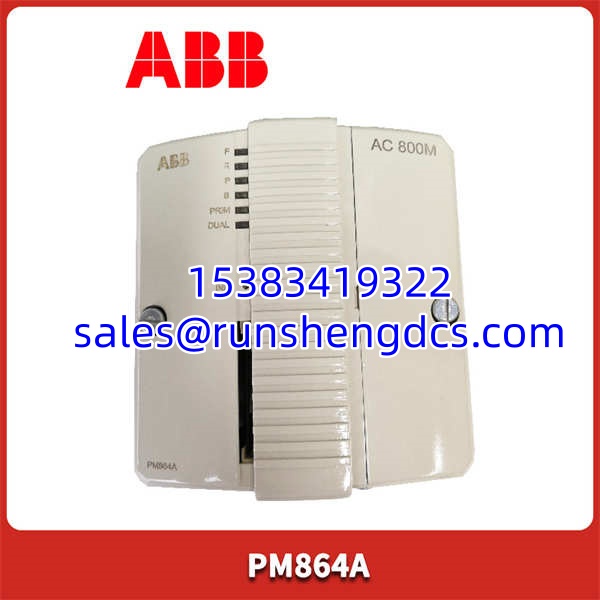

ABB PM864A
Application Scenarios & Pain Points
- Refining: High ambient heat and electrical noise from VFDs fry standard boards. PM864A handles the thermal load and EMI without dropping scans.
- Water Treatment: Remote pump stations need reliable failover. Redundant CPU setup ensures continuous flow during storms when grid power fluctuates.
- Pharma: Strict batch recording requires zero data loss. Fast 1 ms cycle times capture every valve state for compliance.
Compatible Replacement Models
- ✅ Drop-in Replacement: PM864 (Non-A revision). Identical footprint. Verify firmware version matches your existing rack before swapping.
- ⚠️ Software Compatible: PM865K01. Higher performance tier. Requires Control Builder M recompile and potential hardware config updates. Budget extra labor time.
- ❌ Hardware Incompatible: PM85x series. Different backplane bus. Do not attempt to force fit. Requires entire rack replacement.
