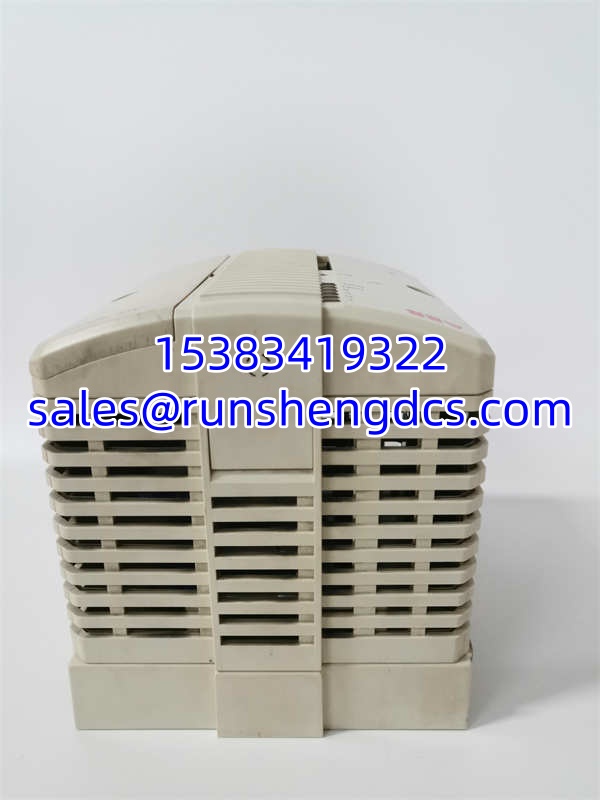

ABB PM861K01 3BSE018105R1 | AC800M CPU Module, In Stock

Description

Key Technical Specifications

Product Introduction

When a DCS controller fails, the panic is real. The ABB PM861K01 is the workhorse CPU for the AC 800M family, handling the logic that keeps turbines spinning and valves modulating. It’s not some cloud-connected AI; it’s a ruggedized processor that takes 24/7 abuse in hot, dusty cabinets and keeps doing its job. The “K01” suffix indicates a kit, meaning it comes with the base plate, terminators, and battery—everything you need to avoid a 3 AM trip to the warehouse.

We specify the 3BSE018105R1 because it’s a complete, ready-to-install package. The critical spec here is the hot standby redundancy support; if the primary CPU dies, the backup takes over before the process I/O even registers a glitch. Bottom line: it consolidates what used to take three mid-range CPUs into one highly available unit. Just don’t forget to install the memory backup battery; without it, you lose your configuration on power loss.

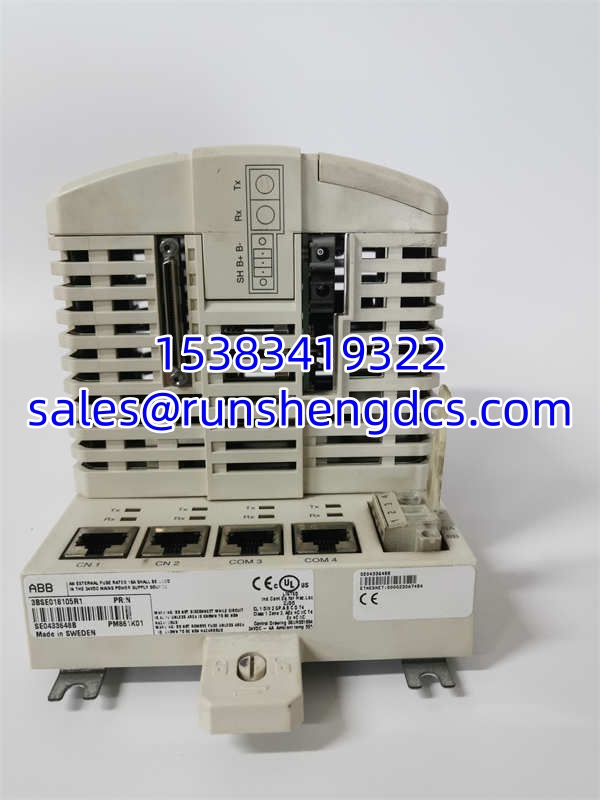

ABB 3BSE018105R1

QA/QC Transparency SOP

We don’t trust “tested” stickers on CPUs. Every PM861K01 3BSE018105R1 goes through a five-step validation process before it ships:

1. Intake & Origin Verification: We trace the 3BSE018105R1 batch code against ABB production records to rule out counterfeit clones. Visual inspection checks for cracked solder joints on the RJ45 ports and CEX-bus connectors.
2. Live Functional Testing: The unit is mounted on a live AC 800M test rack. We run a 24-hour burn-in with a heavy control program to verify thermal stability and RAM integrity. Redundancy switchover is manually triggered and timed.
3. Electrical Parameter Tests: Using a Fluke 115, we verify 24VDC input tolerance and check isolation resistance on the COM4 port. We also verify the CompactFlash slot reads/writes without errors.
4. Firmware/Config Verification: We read the internal firmware version and compare it against the requested revision. If the previous user left custom network settings, we perform a factory reset.
5. Final QC & Anti-Static Packaging: Unit is cleaned with contact-safe solvent, sealed in an ESD bag with desiccant, and shipped with a test certificate showing the actual measured switchover time and firmware version.

Field Engineer Gotchas

• CEX-Bus Termination: The PM861K01 uses a Communication Extension (CEX) bus for I/O modules. If you don’t terminate the bus correctly using the TB850/TB852 terminators included in the kit, you’ll get intermittent I/O faults. War Story: Saw a tech spend three days chasing a “ghost” I/O failure, only to find the last module in the cluster was missing its terminator. Always check the physical termination.
• Redundancy Switchover Time: The spec says <10ms, but that assumes perfect network conditions. If your Ethernet cables are run next to VFDs without proper shielding, the switchover can exceed the tolerance of fast-acting drives. Solution: Use shielded Cat5e/Cat6 and ground the shields properly. Don’t daisy-chain through unshielded patch panels.
• Memory Backup Battery: The kit includes a 4943013-6 battery. If you don’t install it, the CPU will lose its configuration on power loss. Warning: I’ve seen systems refuse to boot because someone forgot the battery. Always install the battery before applying power.
• CompactFlash Compatibility: The 3BSE018105R1 is picky about CF cards. Modern high-capacity cards (>2GB) often fail. Check: Stick to industrial-grade cards under 2GB. Always have a known-good spare.

ABB 3BSE018105R1

Application Scenarios

• Oil & Gas Refineries: Complex distillation columns require tight temperature and pressure control with zero downtime. The PM861K01’s hot standby architecture ensures that a single CPU failure doesn’t trigger a plant-wide shutdown.
• Power Generation Turbines: Steam and gas turbines need high-speed logic for overspeed protection and load control. The processor handles the fast scan times required for turbine protection while managing the slower balance-of-plant I/O.
• Water Treatment Plants: Remote pump stations often have dirty power. The 3BSE018105R1 acts as a line conditioner, filtering out sags and spikes that would otherwise reset the PLC.

FAQ

Can I hot-swap this CPU while the system is running?
Yes, but only if you have a redundant pair. The supports hot-swap of the backup unit. Never pull the primary CPU while the system is in redundant mode; you’ll force a switchover, and if the backup has any issues, you’re down. Always verify the backup is healthy first.

Is 3BSE018105R1 compatible with older AC 800M modules?
Generally, yes. The is backward compatible with most S800 I/O and older CEX-bus modules. However, verify the firmware version. If your system is on V5.0 and the new unit is V7.0, check the release notes for deprecated features. Always do a “Download Hardware Config” after swapping.

What is the maximum scan time?
It depends on the program size. With a 100k instruction program, expect ~10ms. With a 1M instruction program, expect ~50-80ms. The is designed for deterministic execution, but don’t expect sub-millisecond response for massive programs. Size your CPU based on actual instruction count, not just I/O count.

Why is my redundancy LED flashing red?
The backup CPU is out of sync. This usually means the application or firmware on the backup doesn’t match the primary. Fix: Force a synchronization from the primary. If it fails, check the Ethernet link between the two CPUs. Bad cabling is the #1 cause of redundancy sync failures.

Can I use standard Ethernet cables for the control network?
No. Use industrial-grade shielded Cat5e or Cat6. The ’s dual Ethernet ports are sensitive to EMI. Unshielded cables in a noisy environment will cause packet loss and trigger false redundancy switchovers. Ground the shields at both ends.

Do I need a CompactFlash card for operation?
Yes. The boots from the CF card. It stores the firmware, application, and configuration. Without it, the CPU is a brick. Always keep a formatted, loaded spare CF card on hand. Label it with the firmware version and application date.

What is the MTBF?
ABB typically rates the at >100,000 hours MTBF. The most common failure point isn’t the CPU itself; it’s the CompactFlash card or the Ethernet port. Inspect the physical connectors during your annual shutdown and replace CF cards every 5 years as a preventive measure.
