ABB PFEA112-65 3BSE030369R0065 | IP65 Tension Electronics, 2 Load Cells, PROFIBUS-DP

Description

Key Technical Specifications

Product Introduction

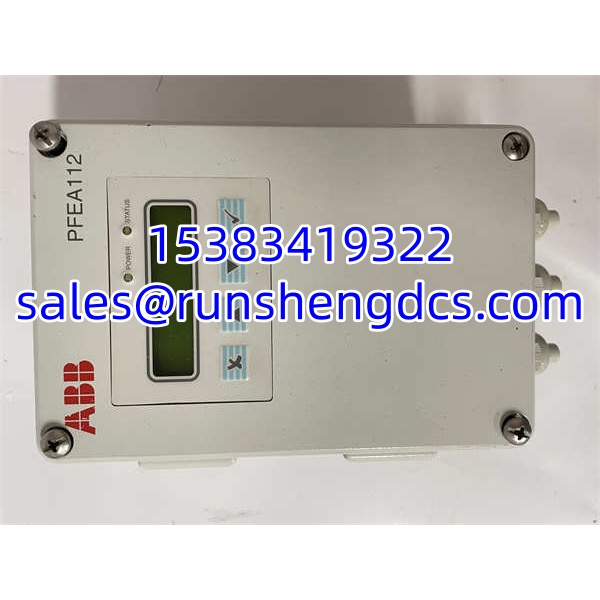

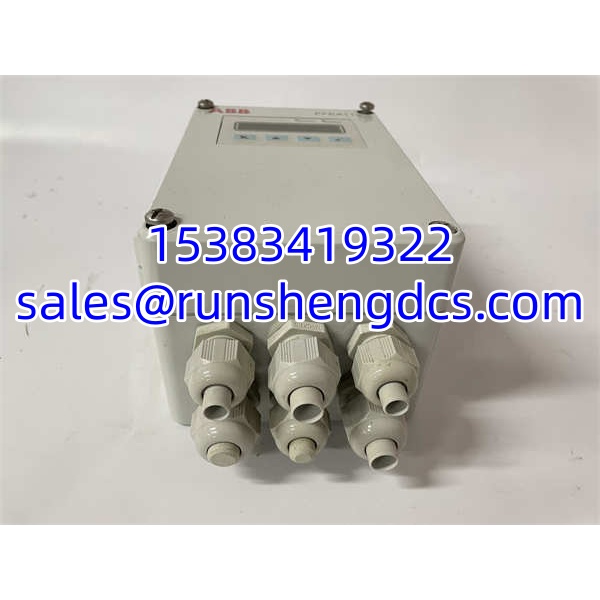

The ABB PFEA112-65 3BSE030369R0065 is an IP65 tension electronics unit from the ABB PFEA11x family. It is designed to interface two ABB load cells and convert their piezomagnetic signals into stable, scaled tension values. The unit provides local display, configuration keys, analog outputs, and PROFIBUS-DP communication, making it suitable for integration into PLC/DCS systems where web tension must be measured reliably under dusty, humid, or washdown-prone conditions.

This is not a general-purpose PLC CPU, servo drive, or motion controller. It is a dedicated tension measurement and conditioning module. The PFEA112-65 is commonly used with ABB PFCL, PFTL, and PFRL load cells in paper machines, film lines, coating systems, metal processing lines, and winding/unwinding stations. Because surplus listings sometimes mix PFEA111, , PFEA113, and different voltage variants, always verify the exact order number 3BSE030369R0065 and the nameplate supply voltage before commissioning.

ABB PFEA112-65 3BSE030369R0065

QA/QC Transparency SOP

1. Intake & Identity Verification — Confirm model -65 and order number 3BSE030369R0065. Check nameplate supply voltage, serial number, enclosure condition, terminal block, and cable glands. Reject units with cracked IP65 housing, damaged connectors, or missing labels.
2. Power-Up Test — Apply the correct supply voltage per nameplate. Verify display initialization, LED status, and absence of fault codes.
3. Load Cell Interface Test — Connect a known ABB load cell or simulator. Verify excitation output, signal stability, noise level, and polarity response under applied load.
4. Analog Output Verification — Use a precision multimeter to check the -5 to +11 V and 0 to 21 mA outputs. Confirm scaling, zero offset, span, and filtering behavior match configuration.
5. PROFIBUS-DP Communication Test — Assign a valid node address and verify communication with a PLC master. Confirm that tension values, status words, and diagnostics are readable.
6. Final QC & Packaging — Record test results, configuration parameters, and condition grade. Pack in anti-static and moisture-protected packaging with terminal covers and a test summary sheet.

Field Engineer Gotchas

• — PFEA111 has no PROFIBUS-DP; supports 2 load cells with PROFIBUS-DP; PFEA113 supports 4 load cells with more I/O. Do not substitute without verifying communication and channel requirements.
• Order Number Confusion — Listings may show 3BSE030369R0065, 3BSE030369R65, or 3BSE050091R65. Treat 3BSE030369R0065 as the primary identifier for this request, but confirm against the physical nameplate before installation.
• Supply Voltage Variant — The IP65 -65 may be supplied as 24 V DC or 100–240 V AC. Applying the wrong supply can damage the unit. Always read the nameplate first.
• Load Cell Nominal Load Must Match — If the nominal load parameter does not match the load cell nameplate, tension readings will be systematically wrong even if the unit appears healthy.
• Wrap Angle Gain Errors — Incorrect wrap angle or wrap gain settings cause persistent measurement偏差. Verify roller geometry and load cell orientation before final tuning.
• PROFIBUS Address and Termination — Duplicate node addresses or missing termination resistors can cause intermittent communication faults that look like sensor failures.

ABB PFEA112-65 3BSE030369R0065

Application Scenarios

• Paper and board machines — Measures web tension on dryer sections, rewinders, and slitters to prevent wrinkles, breaks, or uneven winding.
• Film and foil converting — Provides stable tension feedback for coating, laminating, printing, and slitting lines where thin materials are sensitive to tension variation.
• Metal strip processing — Used on tension measurement rolls in pickling, annealing, and slitting lines where load cells experience high mechanical loads.
• Textile and nonwoven winding — Maintains consistent tension during winding and unwinding to avoid edge damage, telescoping, or elongation.

FAQ

It is an ABB tension electronics unit with protection, used to measure web tension from two load cells and provide analog and PROFIBUS-DP outputs.

No. -20 is typically the IP20 DIN-rail version, is the enclosed version. Electrical functions are similar, but mechanical installation and environmental suitability differ.

Can it connect to four load cells?
No. supports two load cells. If four load cells are required, PFEA113 is the appropriate variant.

Does it support EtherNet/IP or PROFINET?
provides PROFIBUS-DP as standard. PROFINET and EtherNet/IP are associated with other variants such as PFEA122. Verify the exact model before assuming fieldbus compatibility.

What supply voltage does it use?
family supports 24 V DC (18–36 V) or 100–240 V AC, 47–63 Hz. Confirm the actual unit nameplate before wiring.

Which load cells are compatible?
It is designed for ABB PFCL, PFTL, and PFRL load cells. Compatibility depends on sensor type, wiring, and nominal load configuration.

Can it be used as a standalone tension controller?
It can measure tension, display values, and provide analog outputs. Whether it performs closed-loop control depends on system architecture. In many installations, the PLC or drive executes the final tension control loop using the measurement signal.
