Description
Key Technical Specifications
| Parameter | Detail |
|---|---|
| Part Designation | KUC711AE |
| Material Number | 3BHB004661R0001 |
| Manufacturer | ABB |
| Function | Excitation controller / AVR controller |
| Application | Synchronous generator excitation control |
| Associated System | ABB UNITROL excitation family |
| Related Revision | KUC711AE101 — 3BHB004661R0101 |
| Platform | ABB excitation control — not an AC800M PLC CPU |
| Availability | Surplus / refurbished / new-old-stock |
| Documentation | Limited public datasheet; verify against UNITROL panel nameplate |
Product Introduction

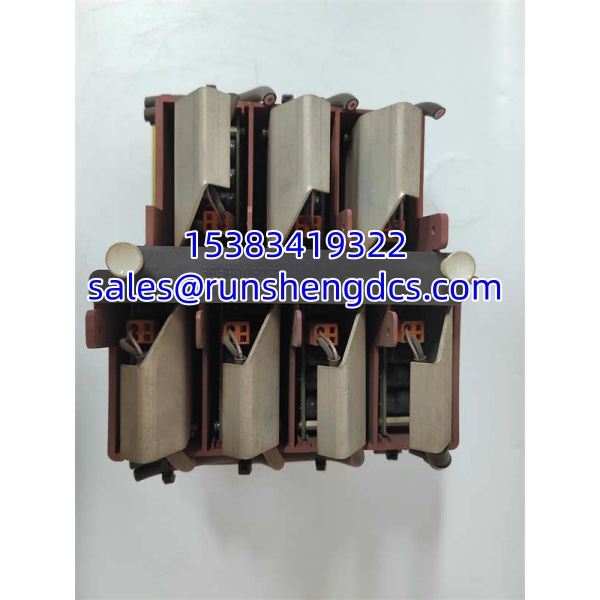

An excitation controller label that looks similar to a PLC CPU can send procurement down the wrong path. The ABB KUC711AE, material number 3BHB004661R0001, is an excitation controller used in ABB synchronous generator excitation systems, most commonly associated with the UNITROL family. Its role is to regulate generator terminal voltage by controlling the excitation current to the rotor field, supporting voltage regulation, reactive power control, power factor control, and generator protection functions.
The suffix and material number are critical here. KUC711AE01 corresponds to 3BHB004661R0001, while KUC711AE101 corresponds to 3BHB004661R0101. These revisions may differ in firmware, I/O mapping, or communication configuration. Because this module operates inside the excitation cabinet of a running generator, incorrect substitution can affect voltage regulation, AVR redundancy, or protection coordination. Replacement should always be verified against the existing panel nameplate, the UNITROL system type, and the OEM parts list.
QA/QC Transparency SOP
- Intake & Label Verification — Confirm the module is labeled KUC711AE with material number 3BHB004661R0001. Record the full suffix (e.g., AE01 vs AE101). Reject units with missing labels, cracked housings, burned connectors, or evidence of prior rework.
- System Context Verification — Confirm the module came from an ABB UNITROL or equivalent excitation cabinet. Do not assume compatibility with AC800M PLC racks, S800 I/O, or drive gate units.
- Visual & Connector Inspection — Inspect excitation field terminals, communication ports, ribbon cables, and power connectors for corrosion, heat damage, or mechanical stress.
- Functional Testing — Where test equipment is available, verify power-up, firmware load, communication with the excitation power stage, and AVR parameter readback. Do not energize the module on a live generator without OEM-approved procedures.
- Final QC & Packaging — Photograph labels, connectors, and revision markings. Pack in anti-static packaging with terminal protection. Include a test record showing material number, suffix, and compatible excitation system.
Field Engineer Gotchas
- Not a PLC CPU. Despite some surplus listings describing KUC711AE as an AC800M CPU or digital input module, its confirmed role is excitation/AVR control for synchronous generators.
- Suffix and material number must match. 3BHB004661R0001 (KUC711AE01) and 3BHB004661R0101 (KUC711AE101) are different revisions. Do not substitute without OEM confirmation.
- Not a rack power supply. Some listings describe KUC711AE as a rack power module with Ethernet ports; that description is not confirmed for this excitation controller.
- Excitation cabinets are safety-critical. A wrong controller can affect generator voltage regulation, reactive power output, and protection behavior. Always verify against the panel nameplate and OEM documentation.
- Firmware/configuration matters. A replacement module may require loading the correct AVR parameters, redundancy settings, and generator-specific configuration.
ABB KUC711AE 3BHB004661R0001
Application Scenarios
- UNITROL excitation controller replacement. A generator AVR controller faults and the module must be replaced with the correct material number.
- Excitation cabinet refurbishment. An aging excitation panel is overhauled; the controller is verified or replaced as part of the upgrade.
- Spare provisioning for critical generators. Power plants and industrial facilities running ABB excitation systems stock verified modules to reduce outage time.
- AVR troubleshooting. Generator voltage instability or AVR communication faults prompt inspection of the controller, its firmware, and its interface to the excitation power stage.
FAQ
It is an ABB excitation controller / AVR controller for synchronous generator excitation systems, associated with the UNITROL family.
Is it a PLC CPU module?
No. Although some surplus listings describe it as an AC800M CPU or digital input module, its confirmed application is excitation control.
What is the difference between R0001 and R0101?
3BHB004661R0001 corresponds to KUC711AE01; 3BHB004661R0101 corresponds to KUC711AE101. They are different revisions and should not be substituted without OEM confirmation.
What system does it belong to?
ABB UNITROL or related synchronous generator excitation systems.
Can I substitute another ABB controller?
Only if the material number, suffix, firmware, and excitation system configuration all match. Excitation controllers are not universally interchangeable.
What should I verify before buying?
Confirm the full label photo, material number (3BHB004661R0001), suffix (AE01 vs AE101), the UNITROL panel type, and whether the unit has been tested or requires configuration loading.
