Description
Key Technical Specifications
| Parameter | Detail |
|---|---|
| Model Number | IDPG 940128102 |
| Manufacturer | ABB |
| Module Type | 16-channel isolated digital input module |
| Input Channels | 16, individually isolated |
| Input Voltage | 24 VDC ±20% |
| Input Logic | Positive logic (high-level active) |
| Isolation Strength | 2500 VAC (channel-to-system side) |
| Response Time | Millisecond-level (verify with OEM datasheet) |
| Static Power Consumption | ≤ 5 mA |
| Dynamic Power Consumption | ≤ 0.5 A |
| Operating Temperature | -40 °C to +85 °C |
| Storage Temperature | -55 °C to +125 °C |
| Humidity | 5% to 95%, non-condensing |
| Mounting | DIN rail |
| Protection Rating | IP20 |
| Weight | Approx. 0.29 kg |
| Compatible Systems | ABB AC31, PROCONTIC, S800 I/O (verify fit) |
Product Introduction
Replacing a failed DI module during a live process upset is not the time to discover that the spare has the wrong isolation rating or logic polarity. The IDPG 940128102 is a 16-channel, 24 VDC isolated digital input module used in ABB industrial control systems to acquire discrete field signals — limit switches, pushbuttons, relay contacts, proximity switches, and valve position feedback.
Its practical value sits in the isolation and environmental margin. With 2500 VAC channel-to-system isolation and a -40 °C to +85 °C operating range, it handles noisy switchgear rooms, outdoor cabinets, and high-interference process areas better than a bare 24 VDC card. Sixteen channels per module also keeps panel density reasonable. Bottom line — if the label, revision, and installed rack match, it is a straightforward discrete-input replacement.
QA/QC Transparency SOP
- Intake & Origin Verification — Confirm IDPG 940128102 labeling, revision code, serial number, connector condition, and DIN-rail latch integrity. Flag units with mismatched labels, burnt terminals, or bent backplane pins.
- Live Functional Testing — Install in a compatible ABB test rack. Stimulate each of the 16 channels with a 24 VDC source and verify correct logic recognition, LED indication, and PLC/DCS tag response.
- Electrical Parameter Tests — Measure channel-to-system isolation resistance, terminal continuity, and module power draw using a calibrated multimeter and insulation tester. Check for abnormal current draw that could indicate board-level faults.
- Firmware/Config Verification — Read module identification and system recognition status where accessible. Back up configuration data before returning the module to service.
- Final QC & Anti-Static Packaging — Seal in ESD bags with a test tag showing model, revision, channel pass/fail results, test date, and technician ID.
Field Engineer Gotchas
- Logic polarity assumption — The module uses positive logic (high-level active). If the existing wiring expects negative logic, a “1” state may read inverted. Solution: verify the installed logic convention before swapping.
- System compatibility mismatch — Listings claim compatibility with AC31, PROCONTIC, and S800 I/O, but these are not automatically interchangeable. Solution: match the installed rack type, slot assignment, and software driver before procurement.
- Isolation rating confusion — The 2500 VAC isolation is channel-to-system, not necessarily channel-to-channel. Solution: do not assume full channel-to-channel isolation unless confirmed in the OEM datasheet.
- Power draw under load — Dynamic consumption can reach 0.5 A when multiple channels are active. Solution: verify the backplane or 24 VDC supply can handle the loaded current.
- ESD and live terminals — These modules see field wiring directly. Probing live terminals without a documented procedure risks false trips. Solution: follow site SIS/PLC maintenance protocols.

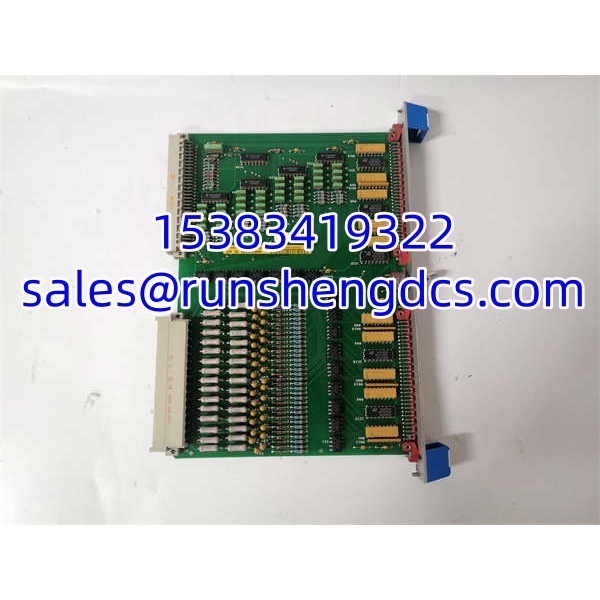

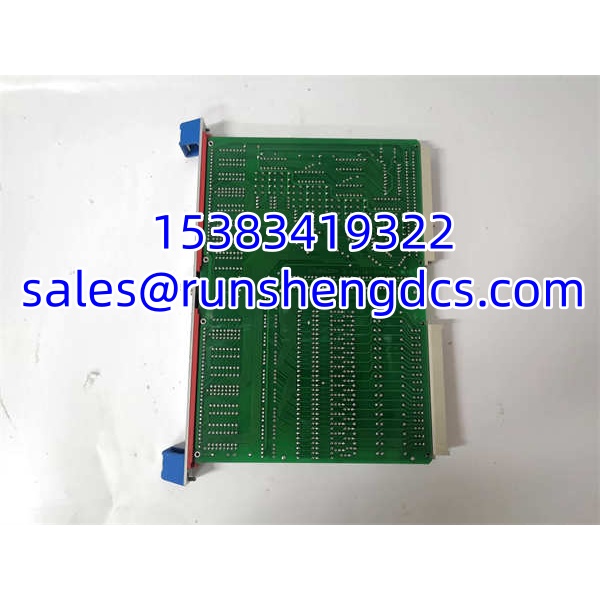

ABB IDPG 940128102
Application Scenarios
- Power switchgear status monitoring — Reading breaker position, disconnect switch, and earth-switch auxiliary contacts in medium-voltage panels where isolation from control-side electronics matters.
- Chemical plant valve position feedback — Acquiring open/closed limit-switch signals from motor-operated valves in corrosive or high-interference areas.
- Steel mill equipment monitoring — Capturing limit-switch and pushbutton signals near rolling mills, where electrical noise and temperature swings are routine.
- Water/wastewater pump station control — Monitoring pump run status, float switches, and gate-valve position in outdoor or humid cabinets.
FAQ
Is IDPG 940128102 an input or output module?
Input. It is a 16-channel digital input module for 24 VDC discrete signals, not a digital output card.
Can I use it with ABB AC31 or S800 I/O?
Third-party listings claim compatibility with AC31, PROCONTIC, and S800 I/O, but these systems are not automatically interchangeable. Confirm the installed rack type, slot assignment, and software driver before substitution.
Does it support NAMUR sensors?
It is specified for 24 VDC positive-logic digital inputs. NAMUR compatibility is not confirmed in published specs. Verify with the OEM datasheet before using it with NAMUR proximity switches.
What isolation does it provide?
Published specifications list 2500 VAC channel-to-system isolation. Confirm whether channel-to-channel isolation is also rated at this level.
Can I hot-swap this module?
Do not assume hot-swap capability. Confirm the installed ABB system configuration and OEM maintenance procedure before removing or inserting the module under power.
Is this an OEM-new part?
Availability varies. Many units circulate as surplus or tested-refurbished stock. Specify condition during procurement.
