Description
Key Technical Specifications
- Protocol Standard: IEEE 802.3 Ethernet / IEEE 802.1 compatible
- Physical Layer: 10BASE-T (Twisted Pair)
- Connector Type: RJ45 Shielded
- Data Rate: 10 Mbps
- System Bus: DigiNetS
- Power Consumption: 1.5 W
- Operating Voltage: 5V DC (±3%)
- Weight: Max 170g (with battery)
- Battery Backup: 3.6V replaceable (for RAM retention)
- Battery Life: ~1.5 years
- Hot Swap: Supported
- LED Indicators: State (Green/Orange/Red), Batt.low

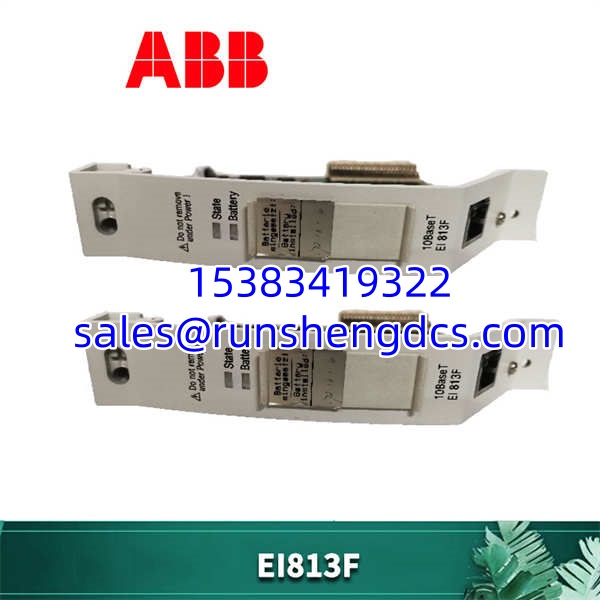

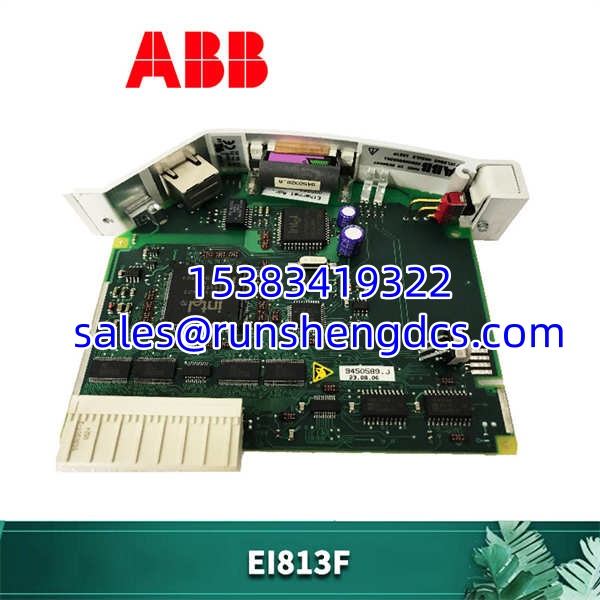

ABB-EI813F
Product Introduction
Your AC800F controller needs a reliable highway to talk to the rest of the plant, and the EI813F is that on-ramp. It plugs directly into the Freelance 2000 rack to provide standard 10BASE-T Ethernet for the DigiNetS system bus. No proprietary cabling, no special transceivers—just standard shielded twisted pair to your industrial switch.
Why keep this specific card in your spares kit? Legacy support and simplicity. It handles the system bus traffic with minimal CPU load (direct memory access), leaving your controller free to run logic. The 3.6V backup battery keeps your configuration and buffer data alive during power cycles. Bottom line—it’s a simple, proven workhorse for older DigiNetS networks that just needs to keep running.
Troubleshooting Quick Reference
- Fault: State LED is Red | Cause: Module not recognized or internal fault | Relevancy: High (90%) | Quick Check: Reseat module, check backplane pins | Fix: Power cycle rack, replace module if fault persists
- Fault: State LED is Orange (Solid) | Cause: Module identified but not configured | Relevancy: High (85%) | Quick Check: Open Control Builder, check hardware config | Fix: Download correct hardware configuration to controller
- Fault: Batt.low LED is Orange | Cause: Backup battery voltage low or missing | Relevancy: Medium (70%) | Quick Check: Measure battery voltage at terminals | Fix: Replace 3.6V battery immediately to prevent config loss
- Fault: Intermittent Comm Loss | Cause: Bad RJ45 contact or EMI on cable | Relevancy: Medium (60%) | Quick Check: Swap patch cable, check shield grounding | Fix: Re-terminate shield, verify cable category

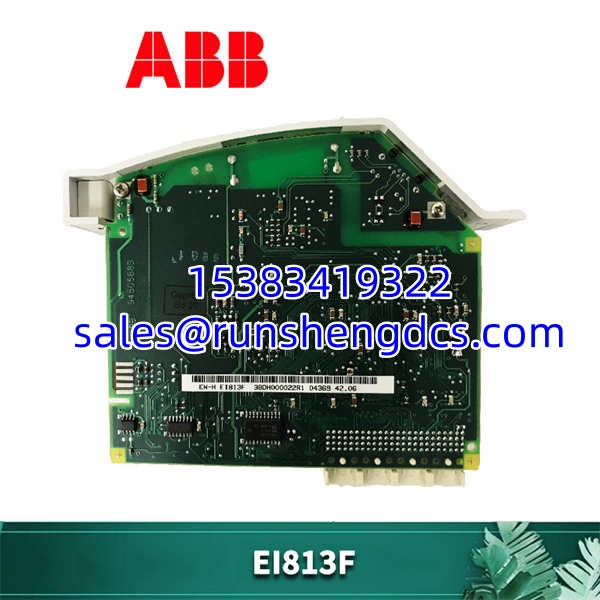

ABB-EI813F
Application Scenarios & Pain Points
- Legacy DCS Upgrades: Older Freelance 2000 systems still running critical processes. The EI813F keeps the original DigiNetS bus alive without forcing a full network migration.
- Small Remote Stations: Compact AC800F racks at pump stations need simple Ethernet connectivity. 10BASE-T is plenty for I/O data and avoids the cost of gigabit infrastructure.
- Redundant Controller Pairs: Primary and backup controllers need synchronized system bus comms. This module supports redundant controller operation for high availability.
Compatible Replacement Models
- ✅ Drop-in Replacement: Exact match for EI813F. Verify your AC800F controller firmware supports the specific hardware revision. Check the 3.6V battery before installation.
- ⚠️ Software Compatible: EI803F (10BASE-2 coax version). Same DigiNetS protocol, but completely different physical layer. Requires new cabling and terminators. Not recommended unless coax is already installed.
- ❌ Hardware Incompatible: EI811F or EI812F. Different physical layer standards (AUI or 10BASE-2). Will not work with standard 10BASE-T cabling. Do not substitute.
