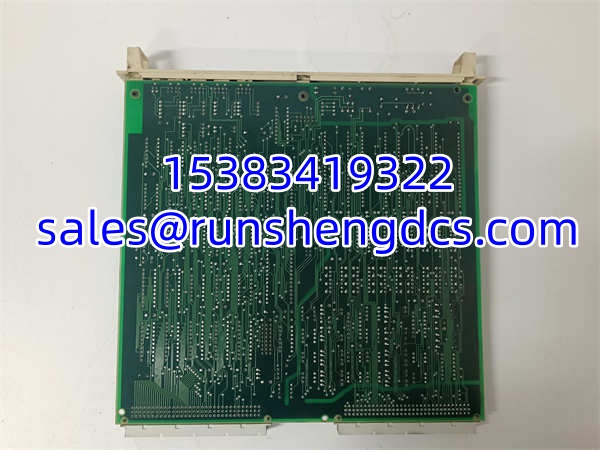

ABB DSCA114 57510001-AA | MasterPiece Communication Module

Description

Key Technical Specifications

Product Introduction

In ABB’s legacy DCS and MasterPiece control ecosystems, communication between the controller and field-level devices is the backbone of the entire automation architecture. The ABB DSCA114 (order code 57510001-AA) is an asynchronous communication board designed to bridge that gap — handling data exchange between ABB controllers (such as AC 800M and S800 I/O platforms) and peripheral devices over industrial fieldbus protocols like PROFIBUS DP and Modbus RTU.

Beyond pure communication, the DSCA114 integrates digital I/O capability with 16 input and 16 output channels, making it a hybrid module that handles both signal acquisition and protocol-level data transfer. The optical isolation between channels protects sensitive controller electronics from field-side electrical noise and ground potential differences — a critical design feature in power plants and chemical facilities where ground loops are a constant threat.

The module’s configurable input filtering (0.2–32ms) allows field engineers to tune noise rejection to match the specific characteristics of their signal environment, while the fast transistor output response (≤1ms) supports high-speed switching applications. Status LEDs provide real-time diagnostic feedback, reducing troubleshooting time during fault conditions.

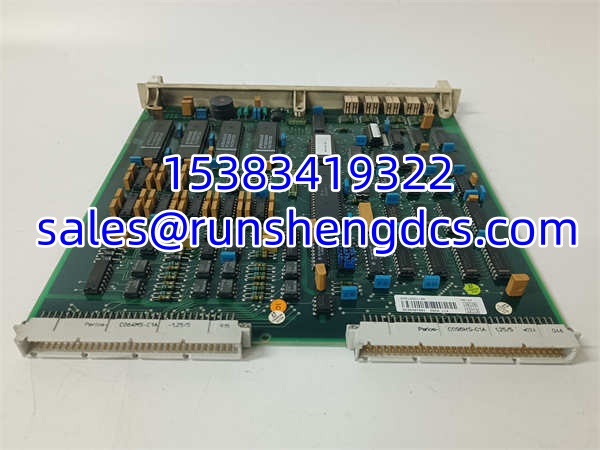

ABB DSCA114 57510001-AA

QA/QC Transparency SOP

For surplus or refurbished DSCA114 units, a competent vendor should verify:

1. Intake & Label Verification — Confirm model “DSCA114” and order code “57510001-AA” are clearly legible on the module label. Check for revision codes (e.g., “57510001-AA/5”) and date stamps. Inspect for physical damage: bent connector pins, cracked housing, burnt traces, or corrosion.
2. Visual & Mechanical Inspection — Verify all connector interfaces are intact with no pushed-back, missing, or corroded pins. Confirm DIN rail clips or panel mounting holes are undamaged. Check that the module seats properly in a compatible rack slot.
3. Power-Up Test — Apply 24V DC and measure current draw. Verify the module powers up without excessive heat. Confirm all status LEDs illuminate correctly during boot sequence.
4. Digital I/O Functional Test — Exercise all 16 input channels with known 24V DC signals and verify correct logic state reporting. Drive all 16 output channels and measure voltage/current at each output terminal to confirm proper switching.
5. Communication Protocol Test — Connect the module to a test system via PROFIBUS DP or Modbus RTU. Verify successful bus registration, data exchange, and address configuration. Confirm no packet loss or communication timeouts under sustained load.
6. Isolation Test — Using a megger or hi-pot tester, verify optical isolation integrity between input-side and output-side circuits. Any breakdown indicates a failed isolation barrier.
7. Final QC & Anti-Static Packaging — Photograph the module label, connector condition, and LED status. Log test results with date and technician ID. Package in anti-static bag with foam protection.

Field Engineer Gotchas

• Communication Board vs. I/O Module Confusion — This module is frequently mislabeled in surplus listings. Some sellers describe it purely as a “digital I/O module,” while others call it a “communication board.” In reality, it serves both functions. When ordering a replacement, confirm with your system integrator whether your application needs the communication protocol functionality, the I/O channels, or both — and verify the replacement unit matches.
• Revision Suffix Matters — The base order code is 57510001-AA, but some listings show “57510001-AA/5.” The suffix may indicate a hardware revision that affects firmware compatibility with your existing controller. Always match the full part number including any suffix against your installed unit.
• Bus Address Configuration — If used as a communication module on PROFIBUS or Modbus, the bus address must be configured to match the existing network. A replacement unit will likely ship with factory-default addressing. Failure to reconfigure the address before installation will cause bus conflicts or communication failures.
• Input Filtering Configuration — The configurable hardware filtering (0.2–32ms) must be set to match the original module’s configuration. Incorrect filter settings can either let noise through (if set too fast) or introduce unacceptable response delay (if set too slow). Document the filter settings on the failed unit before removal.
• Output Type Verification — The DSCA114 supports both transistor (NPN/PNP) and relay output variants. These are not interchangeable in the field — a transistor output cannot drive the same loads as a relay output. Verify which output type your application requires before ordering.
• ESD Sensitivity — Standard precaution: this module contains optical isolation components and sensitive communication circuitry. Use proper ESD grounding during handling and installation.

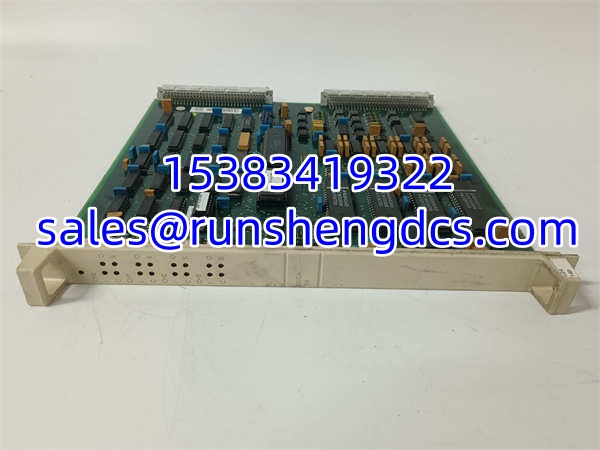

ABB DSCA114 57510001-AA

Application Scenarios

• Power Generation — Boiler Control Systems: ABB MasterPiece DCS systems in fossil fuel power plants use communication modules like the to link the central controller with field-level I/O racks monitoring boiler pressure, temperature, and feedwater flow. The module’s digital I/O channels handle alarm acknowledgment and equipment status signals.
• Chemical Processing — Batch Reactor Control: Chemical plants running ABB DCS architectures use the for inter-rack communication and digital signal switching in batch process sequences. The optical isolation protects the controller from the electrically noisy environment near large motors and variable frequency drives.
• Pulp & Paper — Machine Control: Paper mills with legacy ABB control systems use communication boards for data exchange between the machine control cabinet and distributed I/O stations along the paper machine. The PROFIBUS DP interface enables high-speed cyclic data exchange for real-time process control.
• Water Treatment — Pump Station Automation: Municipal water treatment facilities use the to interface pump station PLCs with SCADA systems via Modbus RTU, while the integrated digital I/O handles local pump start/stop commands and status feedback.

Note: No verified real-world case study specific to the 57510001-AA was found in available sources. The scenarios above reflect typical deployment contexts for ABB MasterPiece/DCS communication modules.

FAQ

An ABB asynchronous communication board / digital I/O module (order code 57510001-AA) used in ABB MasterPiece and DCS control systems for fieldbus communication and digital signal switching.

Is it a communication board or an I/O module?
Both. It integrates asynchronous communication capability (PROFIBUS DP, Modbus RTU) with 16 digital inputs and 16 digital outputs. Different surplus sellers emphasize different aspects of its functionality, which is why you’ll see conflicting descriptions.

What controllers is it compatible with?
ABB AC 800M, S800 I/O, and MasterPiece series controllers. It is not compatible with non-ABB platforms without appropriate gateway hardware.

What voltage does it need?
24V DC supply.

Is this part still manufactured?
The is a legacy product. It is available through surplus and aftermarket industrial spare parts channels. New OEM supply may be limited or unavailable — confirm with your ABB representative.

How much does it cost?
Surplus pricing varies dramatically. International suppliers list it at approximately US600–699. Chinese domestic suppliers show prices ranging from ¥666 to ¥6999 depending on condition and vendor. Get multiple quotes and verify the supplier’s testing documentation before purchasing.

What does the “/5” suffix mean in “57510001-AA/5”?
It likely indicates a hardware revision. Always match the full part number including any suffix against your existing installed unit to ensure compatibility.
