Description
Key Technical Specifications
- Brand: ABB
- Model Number: CP430T-ETH
- Material Number: 1SBP260196R1001
- Display Type: Color TFT LCD, 5.7-inch diagonal
- Resolution: 320 x 240 Pixels
- Color Depth: 64K Colors
- Communication Port: Ethernet (RJ45)
- Front Panel Protection: IP65 / NEMA 4X (Indoor Use)
- Keyboard Layout: 1 Menu Key + 5 User-Defined Function Keys (F1-F5)
- Processor: 32-bit RISC
- Memory: 4 MB Flash / 16 MB DRAM
- Operating Temperature: -20 °C to +55 °C
Product Introduction
Operators need a reliable window into the machine’s brain. The ABB CP430T-ETH (1SBP260196R1001) is a 5.7-inch TFT touchscreen panel designed to sit directly on the factory floor. With a bright 64K color display and a rugged IP65 front panel, it handles dust, oil, and washdowns without blinking. The Ethernet port allows seamless integration into modern plant networks, while the five dedicated function keys give operators tactile shortcuts for critical commands.
Bottom line—this panel is built for continuous industrial abuse. It features a 32-bit RISC processor backed by 16 MB of DRAM, ensuring smooth screen transitions even with complex graphics. The backlight is rated for 60,000 hours at 25 °C, and the function keys are tested for over 1,000,000 presses. If your current HMI is fading, cracking, or losing network connection, this exact-match replacement gets your machine back in production fast.
Troubleshooting Quick Reference
- Fault: Screen is blank / no backlight | Cause: Dead CCFL backlight or power loss | Relevancy: 80% chance of backlight end-of-life | Quick Check: Measure 24 VDC at terminal block | Fix: Replace CP430T-ETH panel
- Fault: Ethernet link LED off / Comm loss | Cause: Bad patch cable or IP conflict | Relevancy: 70% chance of physical layer issue | Quick Check: Swap Ethernet cable, ping panel IP | Fix: Verify subnet mask, replace patch cable
- Fault: Touchscreen unresponsive / ghost touches | Cause: Screen calibration drift or physical damage | Relevancy: 60% chance of calibration issue | Quick Check: Run touch calibration utility via CP400Soft | Fix: Recalibrate, replace if glass is cracked
- Fault: Intermittent rebooting | Cause: Corrupted firmware or failing RAM | Relevancy: 50% chance of memory corruption | Quick Check: Check DIP switch settings and power stability | Fix: Re-download application via CP400Soft, replace if unstable

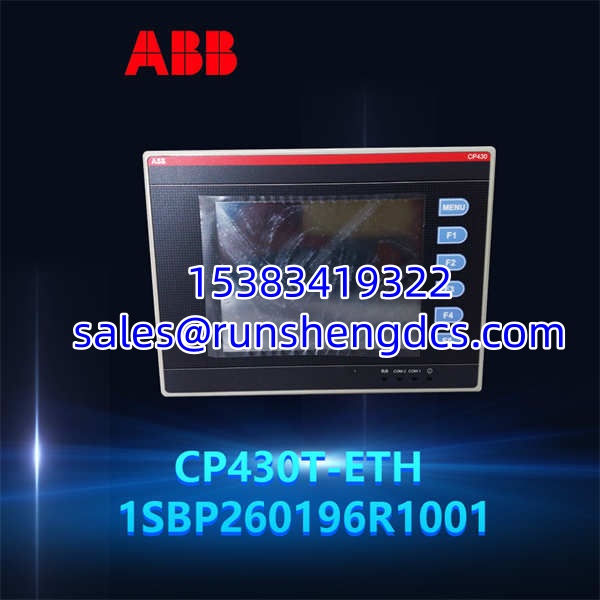

ABB-CP430T-ETH-1SBP260196R1001
Application Scenarios & Pain Points
- Water & Wastewater Plants: Washdown environments destroy standard HMIs. The IP65 front panel and sealed membrane keys survive high-pressure cleaning.
- Legacy Manufacturing Lines: Old CP400 panels are failing. Sourcing this exact 1SBP260196R1001 avoids rewriting the entire CP400Soft application.
- Power Generation Substations: Operators need fast, reliable access to breaker controls. The 5 dedicated function keys provide instant tactile access to critical safety interlocks.
Compatible Replacement Models
- ✅ Drop-in Replacement: CP430T-ETH / 1SBP260196R1001 (Exact Match). Hardware identical. Zero reprogramming required. Existing CP400Soft application downloads directly.
- ⚠️ Software Compatible: CP435T-ETH (1SBP260193R1001). Same CP400 family, but larger screen. Requires application recompilation and panel cutout modification. Budget 4-8 hours of engineering labor.
- ❌ Hardware Incompatible: CP410T (Non-Ethernet) or CP450T. Do not attempt to adapt. Missing Ethernet port, different cutout dimensions, and incompatible memory mapping. Will not fit or communicate.
