Description
Key Technical Specifications
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Model | CI854A |
| Order Number | 3BSE030221R1 |
| Product Type | PROFIBUS DP-V1 communication interface module |
| Controller Platform | ABB AC 800M via CEXbus |
| Protocol | PROFIBUS DP-V1 |
| Ports | 2 × DB9 female RS-485 |
| Transmission Rate | 9.6 kbit/s to 12 Mbit/s |
| Redundancy | Line redundancy; master redundancy with two CI854A modules |
| Power Consumption | 190 mA at 24 VDC typical |
| Operating Temperature | +5 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 5 % to 95 %, non-condensing |
| Protection Rating | IP20 |
| Lifecycle Status | Classic |
Product Introduction
PROFIBUS dropouts on an AC 800M rack almost always trace back to one of three things: bad termination, a misaddressed slave, or a worn DB9 shell. The CI854A is the module that sits between the AC 800M CPU and the fieldbus. It does not run control logic itself. It acts as the PROFIBUS DP-V1 master interface, pulling cyclic I/O data and handling non-cyclic device diagnostics over RS-485.
The CI854A is still common in brownfield 800xA systems. It supports up to 12 Mbit/s, offers dual ports for line redundancy, and can be deployed in redundant master pairs when paired with a second CI854A and proper CPU/CEXbus configuration. ABB lists it as classic lifecycle, so procurement teams should plan for CI854B migration on greenfield builds.
QA/QC Transparency SOP
- Intake & Origin Verification: Confirm label reads CI854A, 3BSE030221R1. Check for physical damage on the DB9 connectors, CEXbus pins, and module housing. Reject units with bent pins or corrosion.
- Live Functional Testing: Install into an AC 800M CEX slot on a test rack. Power up the controller and verify the module is recognized in the hardware configuration. Confirm PROFIBUS link activity with a known slave device.
- Electrical Parameter Tests: Measure 24 VDC draw at the module supply. Check RS-485 port continuity and insulation. Verify no short between DB9 pins and chassis.
- Firmware/Config Verification: Read the module firmware revision and compare it against the Control Builder M project. Mismatched firmware can cause commissioning delays even if the hardware is functional.
- Final QC & Anti-Static Packaging: Record serial number and firmware revision. Verify both DB9 ports seat properly with a test cable. Pack in ESD-safe bag with connector caps installed.
Field Engineer Gotchas
- Firmware revision mismatch. A with older firmware may not load cleanly into a newer 800xA project. Check the firmware tag before swapping into a live controller.
- Termination resistor errors. PROFIBUS requires 120 Ω termination at both ends of the segment. Leaving it off causes reflections; leaving it on at an intermediate node kills the bus.
- DB9 shell grounding. A loose DB9 shell ground creates intermittent communication faults that look like module failure. Tighten the connector screws and verify shield continuity.
- Address conflicts. Two slaves with the same PROFIBUS address will cause cyclic data corruption. This shows up as sporadic I/O faults, not a hard alarm.
- CI854B is the newer replacement. They are not always a direct drop-in without project reconfiguration. Verify the hardware definition in Control Builder M before ordering.

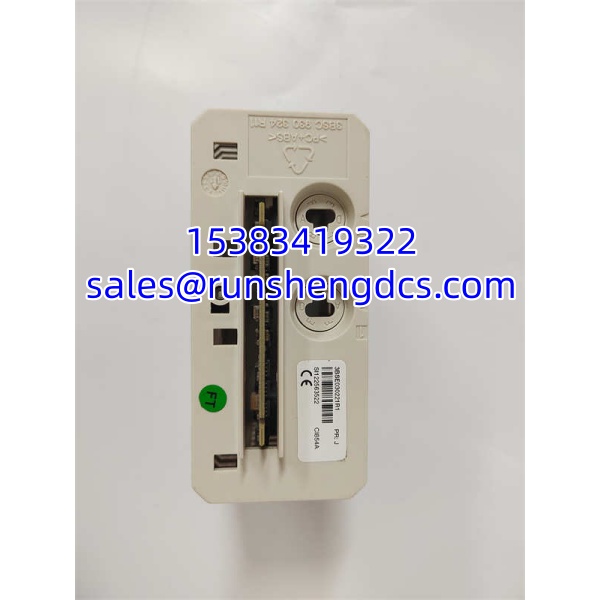

ABB CI854A 3BSE030221R1
Application Scenarios
- Remote I/O clusters: Connecting S800 I/O stations over PROFIBUS DP to extend the AC 800M beyond the local ModuleBus rack.
- Drive integration: Polling variable frequency drives for speed, torque, and fault status in conveyor or pump applications.
- Redundant PROFIBUS segments: Deploying dual modules with line redundancy for critical process loops where bus loss triggers a trip.
- Brownfield migration support: Keeping legacy PROFIBUS devices online while migrating the rest of the plant to newer communication standards.
FAQ
Is 3BSE030221R1 the same as 3BSE030220R1?
No. 3BSE030220R1 corresponds to CI854AK01, which is typically sold as a kit with a TP854 baseplate. 3BSE030221R1 is the module number. Verify the exact deliverable with the supplier.
AC 800M CEX modules support online replacement in certain configurations, but swapping a live PROFIBUS master will interrupt the bus segment. Schedule it during a maintenance window unless the segment is non-critical.
Not directly. is a DP-V1 master. PROFIBUS PA devices require a DP/PA coupler or link downstream.
What is the max baud rate?
12 Mbit/s. Actual cable length depends on baud rate and cable quality.
It is listed as classic lifecycle. Availability depends on region and stock. CI854B is the recommended replacement for new installations.
Can I use it with non-ABB PROFIBUS devices?
Yes. PROFIBUS DP is an open standard. Siemens drives, Pepperl+Fuchs I/O, and Endress+Hauser instruments are commonly integrated.
How do I confirm it is genuine?
Check the ABB label, order number, DB9 connector quality, CEXbus pin alignment, and firmware readout in Control Builder M. Cross-reference with the plant spare-parts list.
