Description
Key Technical Specifications
- Product Type: AF100 Fieldbus Communication Interface
- Supported Protocol: Profibus DP (Master or Slave)
- Max Comm Rate: 12 Mbps
- Power Supply: 24 VDC (via power connector 3BSC840098R1)
- Current Consumption: 807 mA (Typical)
- Operating Temp: -25 °C to +60 °C
- Humidity Range: 5% – 95% non-condensing
- Electrical Isolation: Built-in (prevents ground loops/noise)
- Protection Rating: IP20
- Dimensions: 102 mm (D) x 119 mm (H) x 45 mm (W)
- Weight: ~0.3 kg to 0.5 kg
- Engineering Tool: ABB ControlBuilder
Product Introduction

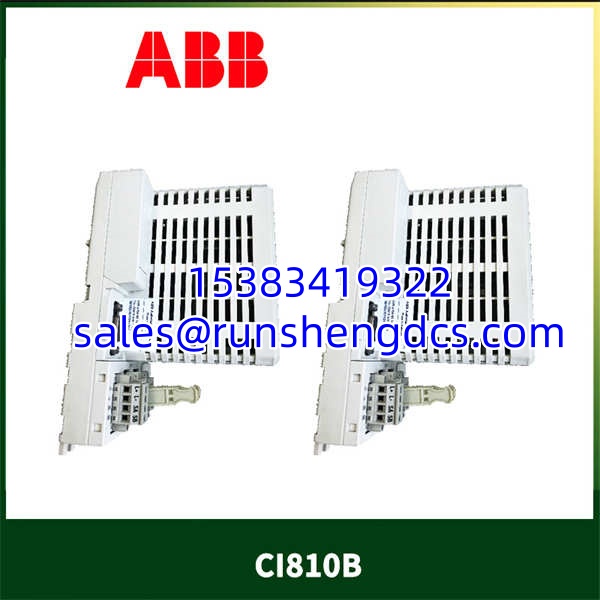

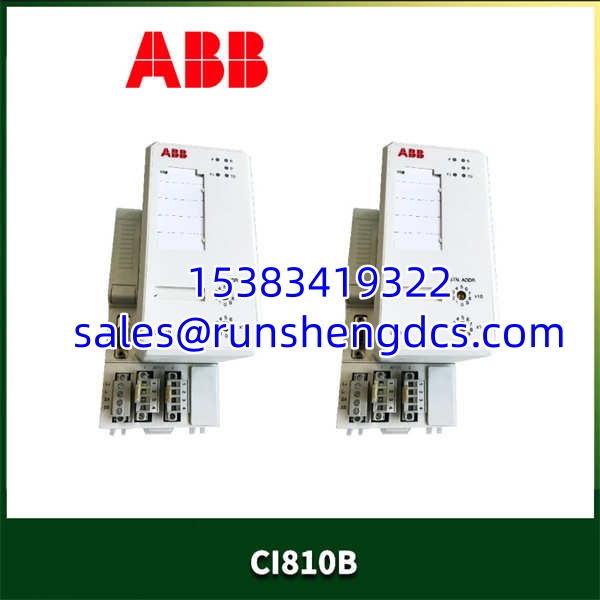

You are looking at the bridge between your ABB AC800M controller and the shop floor. The CI810B (3BSE020520R1) is a dedicated Profibus DP communication interface. It handles the high-speed 12 Mbps data traffic, letting your main CPU talk to distributed I/O, drives, and smart valves without choking. It even comes with dual AF100 twisted-pair modem connectors, meaning you get physical layer isolation right out of the box.
Why keep hunting for this specific card? Because when a Profibus DP network drops, your entire distributed I/O rack goes blind. This module is built to survive harsh industrial environments, featuring electrical isolation to kill ground loop noise. Honestly, it’s an aging workhorse. Sourcing them now means paying a premium for discontinued stock, but avoiding a full fieldbus network rewiring saves your maintenance budget from bleeding out.
Troubleshooting Quick Reference
- Profibus Comm Drops | Bus Noise / Ground Loop | 60% Probability | Check termination resistors and shield | Ensure 110-ohm termination is ON at both ends. Verify shield is grounded at one point only.
- Module Won’t Boot | Power Sag | 40% Probability | Measure 24V DC at terminal block | Module pulls 807 mA. If voltage sags below 20V under load, replace power supply.
- Intermittent Data Errors | Loose AF100 Connectors | 50% Probability | Reseat twisted-pair modem cables | Vibration loosens connections. Inspect pins for corrosion or bending.
- LEDs Show Bus Fault | Address Conflict | 30% Probability | Check DIP switch / ControlBuilder config | Duplicate Profibus address. Verify GSD file matches physical hardware.
- Overtemperature Alarm | Cabinet Cooling Failure | 20% Probability | Check cabinet fan RPM and filters | Clogged filters kill comm boards. Clean heat sinks. Verify airflow direction.

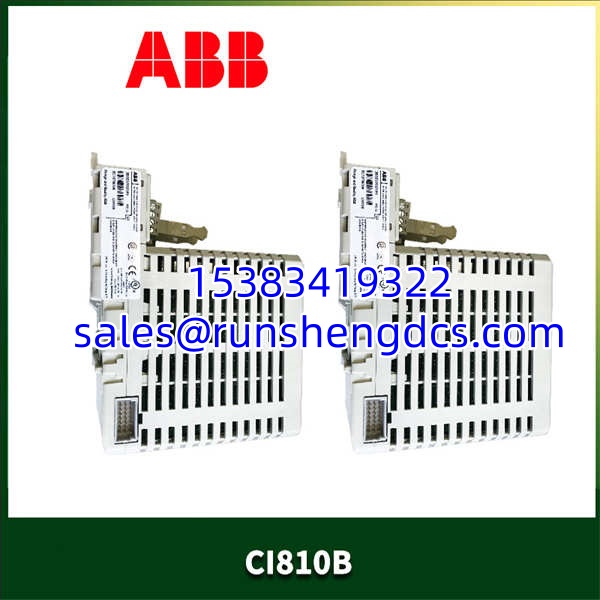

ABB-CI810B
Application Scenarios & Pain Points
- Distributed Motor Control Centers (MCCs): Fast, deterministic data is mandatory. A failing comm board causes drive faults to go unreported, leading to catastrophic mechanical failures.
- Brownfield Paper Mills: Legacy Profibus DP networks refuse to die. This module bridges 20-year-old field devices to newer AC800M controllers without adding expensive protocol gateways.
- Heavy Metallurgy Rolling Mills: Massive EMI from nearby VFDs destroys standard comm signals. The CI810B’s built-in electrical isolation keeps fieldbus data clean in brutal environments.
Compatible Replacement Models
- ✅ Drop-in Replacement: ABB CI810B (3BSE020520R1). Exact same hardware revision. Verify serial number and firmware version match your existing rack. No reprogramming needed if versions align.
- ⚠️ Software Compatible: ABB CI810A / CI810C. Same AC800M engineering tool (ControlBuilder) and Profibus DP protocol. Hardware port layout may differ slightly. Expect 2-4 hours for parameter migration and functional testing.
- ❌ Hardware Incompatible: Standard Ethernet/IP Comm Modules (e.g., CI85x series). Completely different backplane bus and protocol. Rewiring and full network redesign required. Do not attempt as a quick swap.
