Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | CI546 3BSE012545R1 |
| Manufacturer | ABB |
| Product Type | Communication interface module |
| Compatible System | ABB AC 800M / Industrial IT 800xA |
| Installation Interface | CEX-bus slot on AC 800M CPU |
| PROFIBUS DP Support | PROFIBUS DP-V0 / DP-V1, master/slave capable |
| PROFIBUS Speed | Up to 12 Mbps |
| Serial/Modbus Support | Modbus RTU/ASCII via RS-485 |
| PROFIBUS Connector | DB9, RS-485 physical layer |
| Power Supply | 24 V DC via AC 800M backplane |
| Certification | CE |
| Data Confidence | Verified from distributor and system documentation; confirm with OEM manual |
Product Introduction
Field engineers know the pain of discovering a missing communication path after the cabinet is already wired. The ABB CI546 3BSE012545R1 solves that problem for AC 800M systems by adding a dedicated PROFIBUS DP and RS-485/Modbus RTU interface directly through the controller’s CEX-bus slot. It does not replace the CPU. It extends it.
The ABB CI546 3BSE012545R1 sits inside the AC 800M controller assembly and communicates with the processor over the internal CEX bus. That keeps external wiring clean and avoids extra gateways when the controller must talk to PROFIBUS drives, remote I/O, intelligent instruments, or Modbus RTU devices. For plants running Industrial IT 800xA or standalone AC 800M racks, the ABB CI546 3BSE012545R1 provides a compact way to integrate third-party equipment without changing the core controller.
Its value shows up most during brownfield upgrades. Instead of adding a separate protocol converter, the ABB CI546 3BSE012545R1 lets the AC 800M controller exchange cyclic and acyclic data over PROFIBUS DP-V1 while still supporting serial Modbus devices on the same module. That reduces spare-part variety, shortens commissioning time, and keeps the communication map inside one engineering environment.
QA/QC Transparency SOP
- Intake & Origin Verification: Verify part number 3BSE012545R1, revision label, physical condition, and connector integrity. Reject units with bent DB9 pins, cracked housings, or corroded backplane contacts.
- Live Functional Testing: Install the into a compatible AC 800M CPU slot. Confirm CEX-bus recognition in Compact Control Builder and verify LED status indicators.
- Electrical Parameter Tests: Check 24 V DC backplane power draw, RS-485 terminal continuity, and PROFIBUS DB9 pinout. Inspect isolation between communication ports and the backplane where applicable.
- Firmware/Config Verification: Record the AC 800M CPU firmware and CEX module configuration. Download and archive the project backup before placing the module into service.
- Final QC & Anti-Static Packaging: Label the module, photograph condition, and pack in ESD-safe materials with a test summary and configuration notes.
Field Engineer Gotchas
- CEX-slot compatibility: The installs in the AC 800M CPU CEX slot, not in an S800 I/O base. Forcing it into an I/O terminal will damage the connector.
- PROFIBUS termination errors: Missing or double-enabled 120 Ω terminators cause intermittent DP faults. Enable termination only at the two physical ends of the segment.
- Address conflicts: A duplicate PROFIBUS station address will knock devices offline. Assign unique addresses and document them before loop checkout.
- Modbus baud mismatch: RS-485 communication fails quickly if baud rate, parity, or stop bits do not match. Verify serial parameters device by device.
- Firmware dependency: CEX module behavior depends on the AC 800M CPU firmware and Compact Control Builder configuration. Always back up the project before swapping modules.

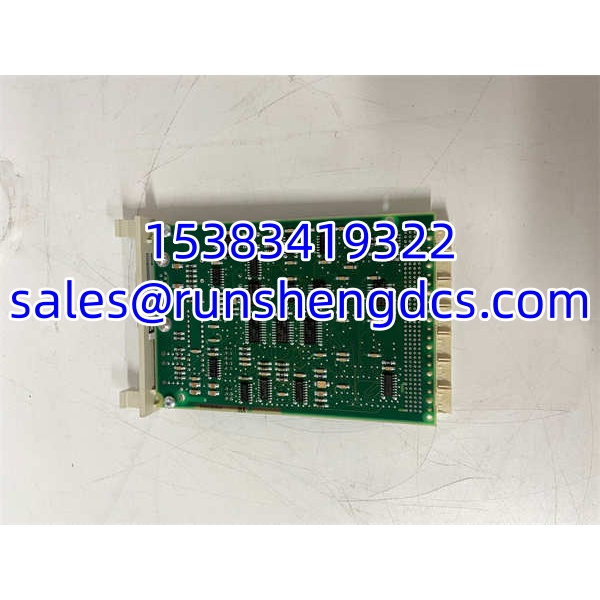

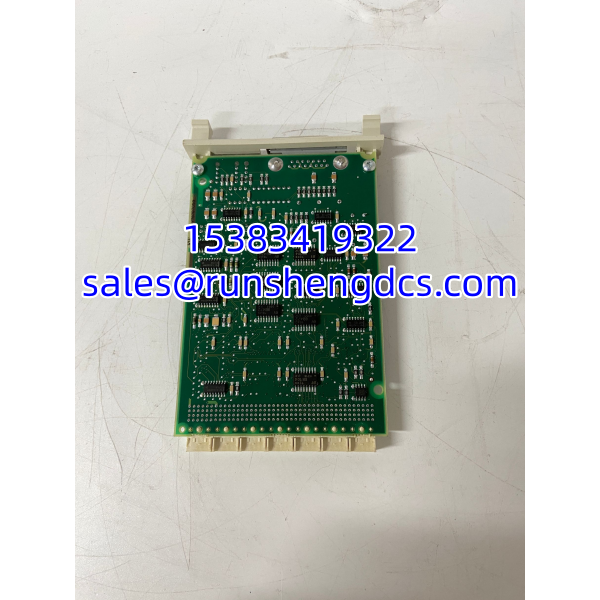

ABB CI546 3BSE012545R1
Application Scenarios
- PROFIBUS DP drive integration: Connects AC 800M controllers to variable-frequency drives, motor controllers, and intelligent motor protection relays that require cyclic process data and acyclic parameter access.
- Remote I/O expansion: Extends the controller to distributed PROFIBUS DP I/O stations when local S800 I/O slots are exhausted or physically too far from the main rack.
- Modbus RTU instrument connectivity: Interfaces with flow meters, temperature transmitters, analyzers, and legacy devices that only support RS-485 Modbus RTU/ASCII.
- Brownfield migration projects: Allows an existing AC 800M system to communicate with older serial devices and newer PROFIBUS equipment without adding external gateways.
FAQ
- Is the 3BSE012545R1 an I/O module?
No. It is a communication interface module for the AC 800M CEX bus, not a digital or analog I/O module. - Which controllers support the 3BSE012545R1?
It is designed for ABB AC 800M controllers with a CEX-bus expansion slot. Verify compatibility with your specific CPU revision. - Does it support PROFIBUS DP-V1?
Yes. The module supports PROFIBUS DP-V0/DP-V1 with speeds up to 12 Mbps. - Can it run PROFIBUS and Modbus at the same time?
Typically yes, depending on configuration and firmware. Confirm channel allocation in Compact Control Builder before commissioning. - Is this module hot-swappable?
CEX modules should not be replaced while the controller is running unless the OEM documentation explicitly permits it. Power down or follow approved maintenance procedures. - Where can I find the exact datasheet?
Check the ABB Industrial IT 800xA / AC 800M hardware documentation or contact an authorized ABB distributor. Public third-party listings vary in accuracy. - Is it still available new?
Most supply comes through surplus, unused, or refurbished channels. Always verify revision, test records, and return terms.
