Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Product Line | S800 I/O / Advant OCS |
| Module Type | SPA Server Communication Module |
| Part Number | 3BSE022162R1 |
| Protocol | SPA (Serial Peripheral Adapter) |
| Max Nodes | 50 per SPA Bus Segment |
| Interface | SPA Bus Port + S800 I/O Internal Bus |
| Baud Rate | Configurable (Typ. 9.6k – 115.2k) |
| Power | 24VDC via S800 Backplane |
| Diagnostics | Bus Fault, Node Loss, CRC Error LEDs |
| Dimensions | 120mm x 245mm x 20mm |
| Weight | ~0.15 kg |
Product Introduction
Legacy SPA buses don’t forgive bad termination or ground loops, and when the server card dies, your entire Advant OCS system goes blind. The ABB CI535V30 3BSE022162R1 is the critical translator sitting in the S800 I/O rack, responding to polls from the old Advant master and fetching field data from the modern I/O modules. It’s not a fancy gateway; it’s a protocol bridge that keeps 30-year-old control logic talking to newer field devices.
We stock the ABB CI535V30 3BSE022162R1 because ABB lead times for this legacy SPA server are often “contact factory” (read: months or never). It supports up to 50 nodes, which is usually the hard limit of the SPA bus protocol itself, not just the card. Bottom line — if you’re running Advant OCS with S800 I/O, this card is your lifeline. Just verify your bus termination; this module hates floating grounds as much as the next one.
QA/QC Transparency SOP
- Intake & Origin Verification: We trace the ABB CI535V30 3BSE022162R1 to its decommissioned site. Visual inspection checks for cracked SPA connectors, corrosion on the S800 bus pins, and physical damage to the DIN rail clips.
- Live Functional Testing: The module goes on an active SPA test rack. We verify it responds to master polls, reports correct node status, and handles bus errors without locking up. No “blink test” here; it must pass data.
- Electrical Parameter Tests: Using a Fluke 115, we check 24VDC input stability and internal 5V/3.3V rail ripple. Isolation resistance between the SPA port and bus is verified to prevent ground loop damage.
- Firmware/Config Verification: We read the onboard ID to confirm the SPA address and firmware revision match the 3BSE022162R1 label. Configuration jumpers are photographed and logged.
- Final QC & Anti-Static Packaging: After passing, it gets a test sheet, anti-static bag, and desiccant. If the SPA bus shows CRC errors under load, it’s scrapped. No “as-is” sales on comms gear.
Field Engineer Gotchas
- SPA Address Jumpers: The ABB CI535V30 3BSE022162R1 uses physical jumpers for the SPA node address. Risk: Swapping the board and having the master poll the wrong address. Fix: Photograph the jumper block on the old board before removal. I once saw a tech swap a server card and forget the address jumpers; the master kept polling address 0 while the new card was set to address 1. The whole bus faulted out for 4 hours.
- Bus Termination: SPA is a daisy-chain bus. Risk: Intermittent CRC errors or total bus failure. Fix: Verify the 120Ω terminator is installed at the last physical node. I’ve chased ghost faults for days only to find someone removed the terminator during a panel cleanup.
- Ground Loops: The SPA port isn’t magic. Risk: Blown transceiver or intermittent comms. Fix: Ensure the SPA cable shield is grounded at one end only (usually the master). I’ve fried two of these cards in one year because someone grounded both ends of a 200m cable.
- The backplane connector is fragile. Risk: Bent pins or intermittent I/O communication. Fix: Seat the module straight and even. Don’t rock it. If it doesn’t slide in with light pressure, stop and check for obstructions.

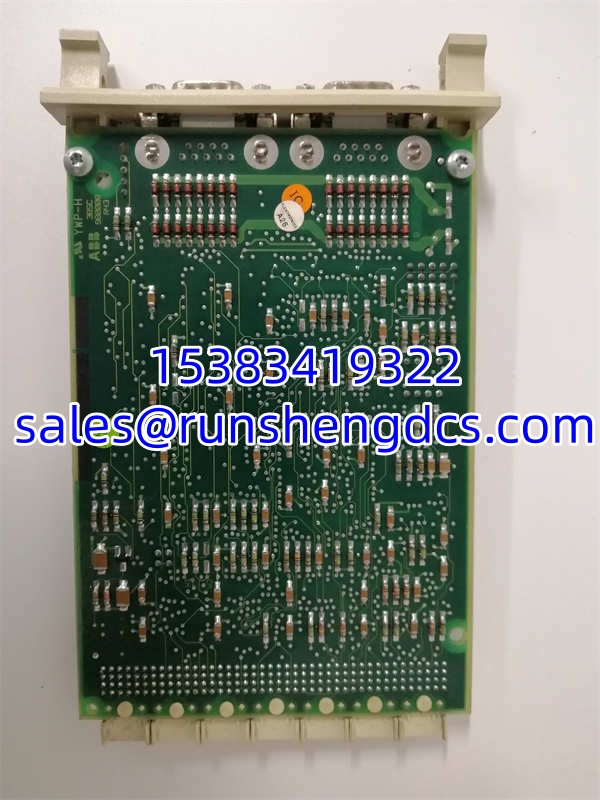

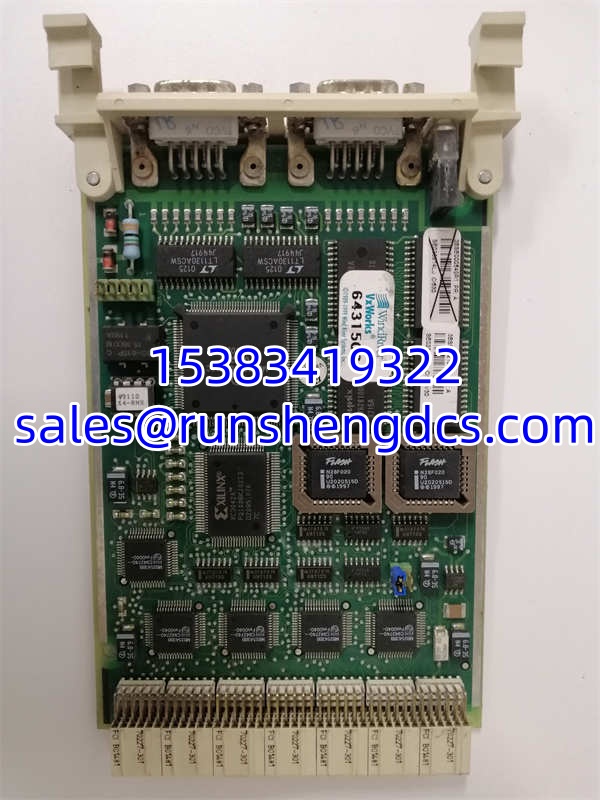

ABB CI535V30 3BSE022162R1
Application Scenarios
- Power Plant Retrofits: Bridging legacy Advant OCS turbine controllers to new I/O for balance-of-plant monitoring without ripping out the main CPU.
- Water Treatment Facilities: Extending SPA bus coverage to remote pump stations where the original copper run was replaced with fiber media converters.
- Manufacturing Lines: Keeping 20-year-old ABB DCS systems alive while gradually migrating I/O to racks during planned outages.
- Case Study: A refinery had intermittent SPA bus faults on their crude unit. They replaced the master CPU, the cabling, and the terminators. Finally, they swapped the ABB CI535V30 3BSE022162R1. The problem vanished. The old server card had a failing internal buffer that couldn’t handle the bus load during peak polling. Bottom line — when the bus acts up, suspect the server card first.
FAQ
Is the 3BSE022162R1 the SPA Server or Client?
It’s the Server. The ABB CI535V30 3BSE022162R1 sits on the I/O side and responds to the SPA Master (usually an Advant OCS controller). If you need the Client (for connecting to another SPA master), that’s a different part number.
Can I hot-swap this module?
No. The SPA bus is not hot-swappable. Pulling the while powered will corrupt the bus token and likely crash the master. Plan a shutdown window.
Why is my SPA bus faulting?
Check termination and grounding. The needs a 120Ω terminator at the end of the line. Also, verify no ground loops on the SPA shield. If those are good, the card’s transceiver might be failing.
Does this support 115.2k baud?
Yes, but verify your cable length. At 115.2k, you’re limited to ~100m. If you’re running longer, drop to 19.2k or 9.6k. The supports all standard SPA rates, but physics wins every time.
What if the Active LED is off?
Check the bus voltage. If it’s under 19V, the module won’t boot. If voltage is good and the LED is off, the internal DC-DC converter is likely dead. Send it back.
Is this compatible with AC 800M?
No. The is for legacy SPA/Advant OCS. For AC 800M, you need the CI853 or CI854. Different bus, different protocol, different universe.
How do I know if it’s truly tested?
Ask for the SPA bus test report. If the seller can’t show you a node poll log or a CRC error check, walk away. Comms modules are the nervous system. “Tested” is a marketing word; data is engineering.
