ABB 5SHY3545L0010 | Press-Pack Thyristor, 3BHB013088R0001

Description

Key Technical Specifications

Product Introduction

You don’t just order a press-pack thyristor off a shelf and bolt it in. The 5SHY3545L0010 is a high-power semiconductor that sits at the heart of phase-controlled converters, industrial drive stacks, and HVDC valve assemblies. It handles the heavy switching — rectifying, inverting, or crowbarring — in systems where failure means a production line stops or a converter stack arcs over. This isn’t a plug-and-play module. It demands precise clamping force, matched gate drive electronics, and a thermal path designed around its specific dissipation curve.

The 5SHY press-pack family has been a workhorse in ABB drive and power conversion systems for years. The “L” designation in the part number typically indicates a specific voltage/current bin within the 5SHY3545 envelope. The 5SHY3545L0010 sits alongside variants like the L0009 and L0016 — same physical package, different electrical ratings. Cross-substituting between these without checking the datasheet is a one-way ticket to a blown stack. If you’re sourcing a replacement, the order code 3BHB013088R0001 is what you match against, not just the 5SHY prefix.

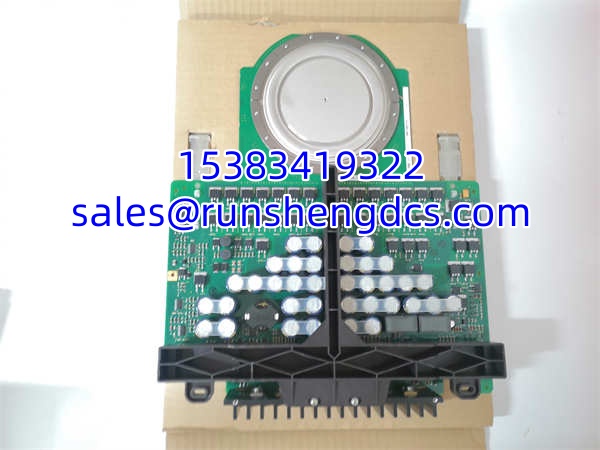

ABB 5SHY3545L0010 3BHB013088R0001

QA/QC Transparency SOP

Here’s how a credible supplier should validate a surplus or new-old-stock 5SHY3545L0010 before it ships:

1. Intake & Origin Verification: Confirm the full part number (5SHY3545L0010) and order code (3BHB013088R0001) are laser-marked on the device housing. Check for physical damage — cracked ceramic insulation, bent or corroded contact surfaces, signs of prior press-marks or thermal cycling discoloration. Verify the date code if available.
2. Visual & Mechanical Inspection: Inspect the press-pack contact faces for flatness, oxidation, or contamination. Press-pack thyristors rely on uniform clamping pressure across the entire contact surface. Any warping or pitting means uneven current distribution and localized hot spots under load.
3. Electrical Parameter Tests: Using a curve tracer or dedicated thyristor test set, verify forward blocking voltage (V_DRM), reverse blocking voltage (V_RRM), gate trigger voltage (V_GT), gate trigger current (I_GT), and latching/holding current. Compare all readings against the ABB datasheet limits. A device that fails to latch at rated gate current is dead on arrival.
4. Leakage Current Check: Measure forward and reverse leakage current at rated blocking voltage. Elevated leakage indicates junction degradation — often from prior thermal abuse or storage in humid conditions. Reject any unit exceeding datasheet leakage limits.
5. Final QC & Anti-Static Packaging: Package in anti-static shielding with contact face protectors installed. Include a test certificate documenting blocking voltage, gate trigger parameters, and leakage current readings. Press-pack devices are ESD-sensitive — treat them accordingly.

Field Engineer Gotchas

Clamping Force Must Match the Datasheet

Press-pack thyristors don’t have bolted terminals. They rely on external mechanical pressure to make electrical and thermal contact. Too little pressure = high contact resistance, localized heating, eventual failure. Too much pressure = cracked ceramic. Use a calibrated torque wrench or hydraulic press set to the OEM-specified clamping force. I’ve seen a tech use a standard bolted heat sink on a press-pack device because “it looked like it fit.” The contact resistance was high enough to cook the junction within minutes of full load.

Gate Drive Board Compatibility

The 5SHY3545L0010 needs a gate drive circuit matched to its trigger characteristics. If you’re replacing a thyristor in an existing drive stack, the gate drive board is already configured for the original device’s V_GT and I_GT. Swapping in a different 5SHY variant (say, L0016 instead of L0010) without verifying that the gate trigger specs match can result in incomplete turn-on, partial conduction, and catastrophic failure. Pull the datasheet for both the old and new part numbers. Compare gate parameters side by side.

Thermal Paste and Heat Sink Interface

The contact faces of a press-pack thyristor need a thin, uniform thermal interface material between the device and the heat sink. Using too much thermal compound creates an insulating layer. Using none creates air gaps. Apply per ABB application notes — typically a thin, even film, no pooling.

Storage and Shelf Life

Press-pack thyristors can degrade if stored improperly. Moisture ingress can affect the ceramic insulation and contact surfaces. Units sitting in uncontrolled warehouse conditions for years may show elevated leakage current on first power-up. Request a unit that has been tested under power within the last 12 months, not just visually inspected.

Polarity and Orientation

The anode, cathode, and gate connections on press-pack devices have a specific orientation. Installing one backwards won’t just fail to work — it can destroy the gate structure instantly. Verify the pinout diagram against the physical device markings before applying any clamping pressure.

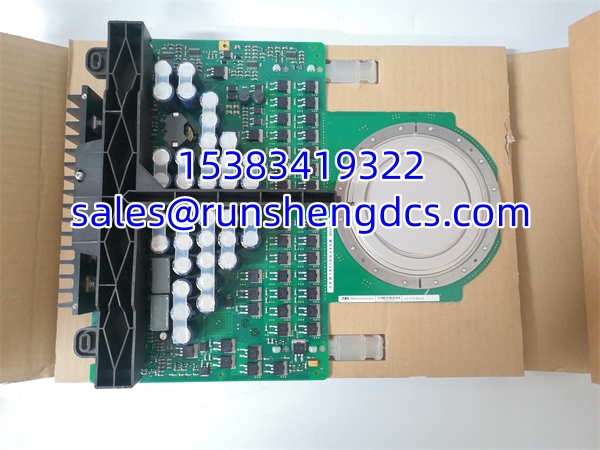

ABB 5SHY3545L0010 3BHB013088R0001

Application Scenarios

• Industrial variable-frequency drives: Large AC drives in steel mills, cement plants, and mining operations use press-pack thyristors in their front-end rectifier stages. The 5SHY3545L0010 handles the phase-controlled conversion from AC line to DC bus.
• HVDC converter valves: High-voltage DC transmission systems stack multiple press-pack thyristors in series to handle the voltage and current demands of power conversion at the grid level.
• Crowbar protection circuits: In excitation systems and large motor drives, a thyristor crowbar dumps stored energy safely when a fault is detected, protecting downstream equipment from overvoltage.
• Static switches and soft starters: High-power motor soft starters use anti-parallel thyristor pairs to ramp voltage during motor startup, reducing mechanical shock and inrush current.

Field Case (Anonymized): A pulp and paper mill in Scandinavia had a 10 MW DC drive on their recovery boiler fan. One of the thyristors in the rectifier stack failed short-circuit during a routine production run, tripping the entire drive. The maintenance team identified the failed device as a 5SHY3545L0010 (3BHB013088R0001). ABB’s standard lead time for a new unit was several weeks. The mill sourced a verified surplus unit from a specialist power semiconductor supplier, confirmed the blocking voltage and gate trigger parameters matched the original datasheet specs, and installed it with the original clamping hardware and thermal interface. The drive was back online within 48 hours. Post-installation, the team ran a full stack balance test to confirm equal voltage sharing across all series-connected thyristors before returning to full load.

FAQ

Is the 5SHY3545L0010 interchangeable with the 5SHY3545L0016?

Not without verification. Same physical package, potentially different voltage and current ratings. The suffix (L0010 vs. L0016) typically denotes a different electrical bin. Cross-reference both datasheets before substituting. Installing a lower-rated device in a higher-rated application will result in failure under load.

What gate drive board do I need for this thyristor?

That depends entirely on your drive or converter system. ABB’s own drive platforms (e.g., DCS 800, ACS 6000) use specific gate drive boards matched to the thyristor type installed. Check your drive’s hardware manual for the gate drive part number. Don’t guess — the gate trigger requirements vary between thyristor bins.

Can I test this thyristor with a standard multimeter?

A multimeter can give you a rough go/no-go on junction integrity (forward diode drop between gate and cathode, open-circuit reverse blocking). But it cannot verify blocking voltage at rated levels, dynamic switching behavior, or surge current capability. For a power semiconductor destined for a high-value drive system, use a proper curve tracer or thyristor test set.

How do I know if a surplus 5SHY3545L0010 is still good?

Request a test certificate with blocking voltage, leakage current, and gate trigger measurements. A reputable supplier will have tested the device under power. If the seller can only offer “visual inspection” or “pulled from working equipment” as their quality assurance, walk away.

What’s the difference between 3BHB013088R0001 and the 5SHY3545L0010 designation?

The 5SHY3545L0010 is the product type designation. The 3BHB013088R0001 is the ABB order code used for procurement and inventory tracking. They refer to the same device. Always confirm both numbers match on the physical device and your purchase order.

Is this device still in active production?

Verify directly with ABB Semiconductors or their authorized distribution network. The 5SHY press-pack family has been in production for years, but specific bins and variants may be subject to end-of-life notices. If you’re designing a new system, confirm availability and lifecycle status before committing to this part number.
