ABB 5SHY3545L0010 | High-Power IGCT for Medium-Voltage Drives

Description

Key Technical Specifications

Product Introduction

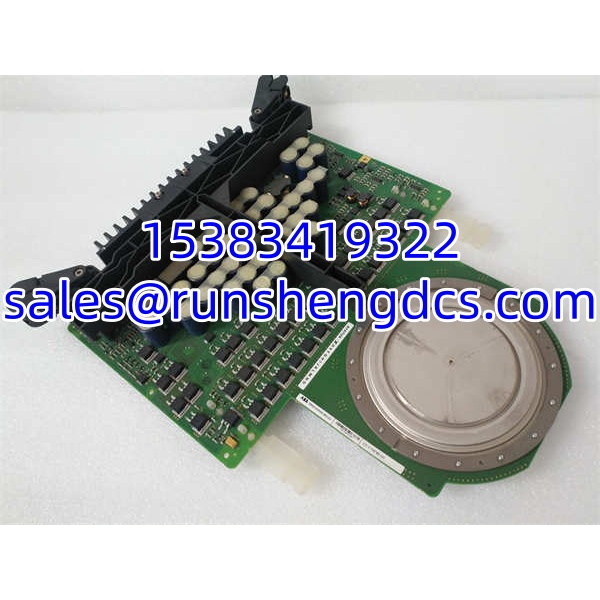

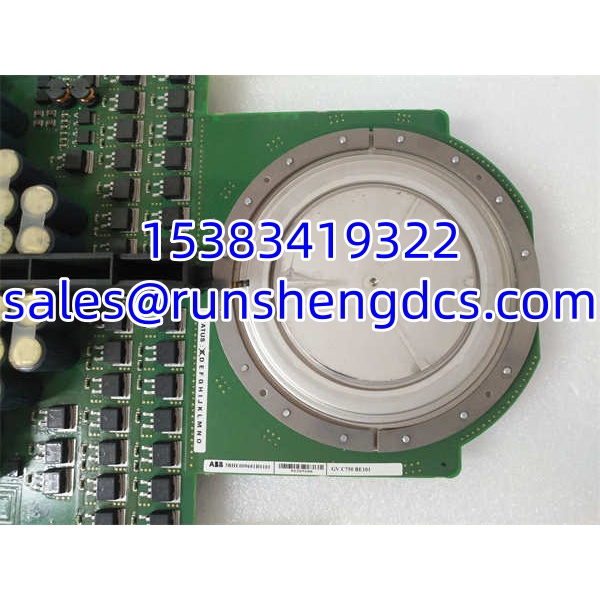

Medium-voltage drives do not fail quietly. When an IGCT or its gate unit goes bad, the converter either trips repeatedly or refuses to hold DC-link voltage under load. The 5SHY3545L0010 is the power-switching element — an IGCT capable of blocking several kilovolts and carrying thousands of amperes during conduction. The companion identifiers 3BHB013088R0001, 3BHE009681R0101, and GVC750BE101 point to the gate driver / control unit that fires, monitors, and protects that IGCT.

This pairing matters because an IGCT cannot be treated like a generic thyristor or IGBT. It depends on a tightly matched gate unit for turn-off current, timing, and fault detection. The 5SHY3545 family is built for medium-voltage, high-power conversion where low conduction loss and robust series/parallel behavior are required. Bottom line — if you are maintaining an ABB medium-voltage drive, you are buying a matched power device and gate assembly, not just a semiconductor.

ABB 5SHY3545L0010 3BHB013088R0001 3BHE009681R0101 GVC750BE101

QA/QC Transparency SOP

1. Intake & Origin Verification: Record all four identifiers — 5SHY3545L0010, 3BHB013088R0001, 3BHE009681R0101, and GVC750BE101. Photograph the IGCT nameplate, gate unit label, lot codes, and clamping hardware. Reject units with cracked ceramic bodies, burnt gate contacts, or corroded fiber-optic ports.
2. Visual & Mechanical Inspection: Check IGCT disc surfaces for pitting, oxidation, or uneven wear. Inspect gate unit connectors, fiber ports, and mounting hardware. Verify that the clamping assembly and thermal interface are complete.
3. Electrical Parameter Tests: Measure IGCT anode-cathode and gate-cathode resistance. Check for shorted or open junctions. Verify gate unit auxiliary supply rails, fiber link integrity, and protection signal outputs where test fixtures allow.
4. Functional Verification: Where a compatible test rack is available, confirm gate pulse output, fault signaling, and interlock behavior. Do not apply full DC-link voltage unless the test setup is rated for medium-voltage IGCT validation.
5. Final QC & Packaging: Document nameplate data, measured values, and visual condition. Pack the IGCT in anti-static, moisture-controlled packaging. Keep the gate unit separately protected. Include a test report and clear part identification.

ABB 5SHY3545L0010 3BHB013088R0001 3BHE009681R0101 GVC750BE101

Field Engineer Gotchas

• Bundled part numbers are not always interchangeable. Listings often group 5SHY3545L0010, 3BHB013088R0001, 3BHE009681R0101, and GVC750BE101 as one item. In practice, one may be the IGCT, another the gate unit, and another an assembly revision. Verify each label before issuing a PO.
• Gate unit mismatch kills IGCTs. A GVC750-series gate unit must match the IGCT type, gate energy requirement, and drive firmware. A visually similar gate board can produce incorrect turn-off current and cause catastrophic failure.
• Clamping force matters. IGCT press-pack devices require specified mechanical force. Too little force increases thermal resistance; too much can damage the ceramic. Always follow OEM torque/pressure procedures.
• Fiber-optic link contamination. Dust or damaged fibers between the controller and gate unit cause intermittent firing faults. Clean fiber ends and inspect connectors before blaming the IGCT.
• Cooling path failure. A replaced IGCT with dried thermal compound, warped heat sink, or blocked coolant will overheat even if electrical tests pass. Check the entire thermal path, not just the semiconductor.

Application Scenarios

• Medium-voltage VFDs for rolling mills, where high current and fast switching are required under heavy mechanical load.
• Static VAR compensators and reactive power systems that rely on IGCTs for rapid power modulation.
• Large compressor and fan drives in oil and gas, mining, or power generation plants.
• Legacy ABB medium-voltage drive maintenance where OEM spares are limited and tested surplus is the practical route.

FAQ

• Is 5SHY3545L0010 an IGBT or IGCT?
  It is an IGCT — Integrated Gate-Commutated Thyristor. IGCTs combine thyristor-like conduction with transistor-like turn-off through a hard-driven gate.
• What do 3BHB013088R0001, 3BHE009681R0101, and GVC750BE101 mean?
  They refer to the gate driver / control unit assembly associated with the IGCT. Exact roles vary by drive family, so confirm each number against the OEM documentation.
• Can I replace only the IGCT and keep the old gate unit?
  Only if the gate unit is confirmed healthy and matched to the IGCT type. A marginal gate unit is a common root cause of repeated IGCT failures.
• What is the current rating?
  Public sources describe the 5SHY3545 family in the thousands of amperes, but the exact rating for 5SHY3545L0010 must be confirmed from the nameplate or ABB datasheet. Do not assume it matches other 5SHY variants.
• Does it require fiber-optic control?
  Typically yes. ABB IGCT gate units commonly use fiber-optic isolation between the controller and gate driver. Verify the connector type and fiber length for your cabinet.
• Is new stock available?
  Uncertain. Most market availability comes from surplus, refurbished, or unused old stock. Require nameplate photos, revision data, and test reports before purchase.
• Can I substitute a different 5SHY3545 suffix?
  Not without OEM confirmation. Suffix changes can affect voltage class, current rating, switching characteristics, gate requirements, and mechanical dimensions.
