ABB 5SHY3545L0009 | IGCT Power Semiconductor Module, Press-Pack

Description

Key Technical Specifications

Product Introduction

Replacing a blown IGCT in a medium-voltage drive is not a “swap and go” job. These press-pack devices require precise mechanical clamping force, matched gate driver electronics, and correct snubber circuit values. Install it wrong, and you will destroy the replacement within seconds of energizing the DC bus.

The 5SHY3545L0009 is an IGCT (Integrated Gate-Commutated Thyristor) from ABB’s high-power semiconductor product line. It serves as the primary switching element inside medium-voltage AC drives and power converters. The associated order codes — 3BHB013085R0001 and 3BHE009681R0101 (type designation GVC750BE101) — are cross-referenced to this device across multiple surplus channels, though whether they refer to the bare semiconductor, the gate driver assembly, or a matched set varies by supplier. The 5SHY series uses a press-pack package, meaning the device is held between two heatsinks under controlled mechanical pressure rather than soldered. This construction gives it excellent thermal cycling capability and fail-safe short-circuit behavior, which is why ABB specifies it for drives running on 380–480 VAC three-phase input systems.

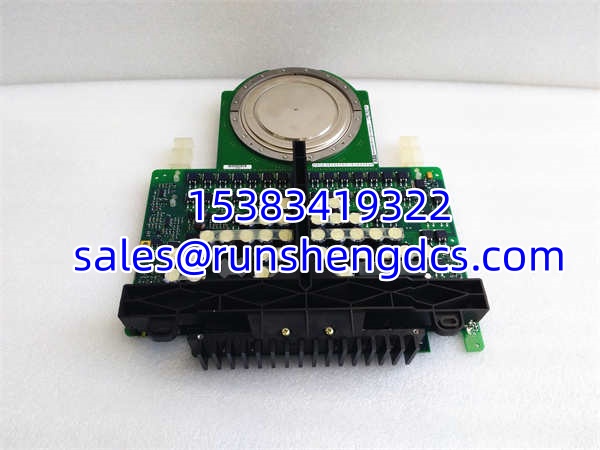

ABB 5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 GVC750BE101

QA/QC Transparency SOP

IGCT modules are unforgiving of latent defects. A thorough incoming inspection is mandatory.

1. Intake & Origin Verification — Confirm the device marking reads 5SHY3545L0009. Cross-check the order code (3BHB013085R0001 or 3BHE009681R0101) against the purchase order. Inspect the press-pack surfaces for scratches, pitting, or oxidation that would compromise thermal contact. Check the gate terminal pins for bending or corrosion.
2. Visual & Mechanical Inspection — Measure the device thickness with a micrometer and compare against the ABB datasheet tolerance. A device that has been previously clamped beyond spec will show permanent deformation. Check the conformal coating for cracks or delamination.
3. Semiconductor Junction Tests — Using a curve tracer or high-voltage ohmmeter, verify the forward and reverse blocking characteristics of the main anode-cathode junction. Confirm the gate-cathode junction reads within spec (typically a low-resistance diode drop). Any shorted or open junction means the device is scrap.
4. Gate Driver Verification (if applicable) — If the order includes the GVC750BE101 gate driver board, power it on a bench supply and verify that gate turn-on and turn-off pulses are present with correct amplitude and timing. Compare against the OEM gate drive specification.
5. Final QC & Packaging — Clean the contact surfaces with isopropyl alcohol. Package the device in anti-static foam with protective caps on the gate terminals. Include the test report with junction test results and gate driver waveform captures.

Field Engineer Gotchas

• Clamping Force Is Not Optional — The press-pack IGCT requires a specific, uniform clamping force across both contact surfaces. Too little pressure causes uneven current distribution and localized hot spots. Too much pressure cracks the silicon. Use a calibrated torque wrench on the stack bolts and follow the ABB stack assembly procedure to the letter. I have seen a drive tech hand-tighten the clamping bolts because he “did not have the right tool.” The IGCT failed during the first load test.
• Gate Driver Mismatch — The 5SHY3545L0009 will not switch correctly with just any gate driver board. The gate driver must match the device’s gate charge requirements and turn-off timing. If you are replacing both the IGCT and the gate driver, confirm they are a matched set from the same ABB drive platform.
• Snubber Circuit Values — When replacing an IGCT, do not assume the existing snubber capacitors and resistors are still good. A degraded snubber capacitor will cause voltage overshoot during turn-off, which can exceed the device’s V_DRM rating and destroy it instantly. Measure the snubber components before energizing.
• DC Bus Pre-Charge Ignored — Closing the main breaker on a drive with freshly installed IGCTs without pre-charging the DC bus capacitors sends a massive inrush current through the new devices. Follow the drive commissioning procedure for pre-charge before applying full bus voltage.
• Cross-Reference Trap — Multiple surplus suppliers list 5SHY3545L0009, 3BHB013085R0001, 3BHE009681R0101, and GVC750BE101 as if they are all the same item. They are not necessarily interchangeable. One might be the bare IGCT, another the gate driver board, another the complete power stack assembly. Confirm exactly what you are buying.

ABB 5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 GVC750BE101

Application Scenarios

• Medium-Voltage AC Drives on Large Induction Motors — The 5SHY series IGCT is the switching heart of ABB’s medium-voltage drive platforms, used on fans, pumps, and compressors rated from several hundred kW to multi-MW. The press-pack construction handles the thermal cycling of repeated starts and stops without solder joint fatigue.
• Industrial Power Converters and Inverters — Deployed in active front-end converters, regenerative drives, and DC link inverters where precise, high-speed switching at high voltage and current is required.
• Excitation and Power Factor Correction Systems — Used in synchronous motor excitation control and static VAR compensation where the IGCT switches reactive power at line frequency.

Field Case (Anonymized): A cement plant’s kiln drive — a multi-MW medium-voltage VFD — tripped on an overcurrent fault during a routine production ramp. The drive fault log pointed to one phase leg. The maintenance team pulled the IGCT stack and found one 5SHY device with a visible crack across the press-pack surface, indicating it had failed short-circuit. The replacement IGCT arrived from a surplus supplier, but the gate driver board showed signs of thermal stress on two output resistors. The team replaced both the IGCT and the gate driver as a matched set, re-measured the snubber capacitors (one was 15% below nominal capacitance), and replaced it. After reassembly with correct clamping torque and a full pre-charge cycle, the drive returned to service with no further faults.

FAQ

Are 5SHY3545L0009, 3BHB013085R0001, 3BHE009681R0101, and GVC750BE101 all the same part?
Not necessarily. Surplus distributors frequently list them together, but they may represent different components — the bare IGCT device, a gate driver board, or a complete assembly. Verify with the supplier exactly which component each part number refers to before purchasing.

Can I substitute a 5SHY3545L0010 for the L0009 variant?
Do not assume interchangeability without checking the datasheet. Different suffixes in the 5SHY family can indicate different voltage ratings, current ratings, or gate sensitivity. The L0009 and L0010 may have different blocking voltage or turn-off characteristics. Confirm with the ABB semiconductor documentation.

What clamping force does this press-pack IGCT require?
The exact clamping force is specified in the ABB semiconductor application note for the 5SHY series. It varies by device size. Using incorrect force — too high or too low — will cause premature failure. Obtain the stack assembly procedure from ABB before installation.

How do I know if the IGCT has failed short-circuit or open-circuit?
A short-circuit failure (anode-to-cathode reads near zero ohms) is the most common failure mode and typically results from overvoltage or excessive di/dt during turn-off. An open-circuit failure is less common but can occur from mechanical damage or excessive clamping pressure. Test with a curve tracer or high-voltage ohmmeter.

Is this device ESD-sensitive?
Yes. The gate terminal is sensitive to electrostatic discharge. Handle the device with proper ESD precautions — grounded wrist strap, anti-static mat, and anti-static packaging at all times.

What is the typical lead time for a replacement?
Availability varies. Some surplus distributors ship within 1–3 days from stock. Others quote 3–4 weeks for high-power or special-order variants. Confirm stock status and condition (new sealed, surplus, or refurbished) with your supplier before planning a drive outage around it.
