Description
Key Technical Specifications

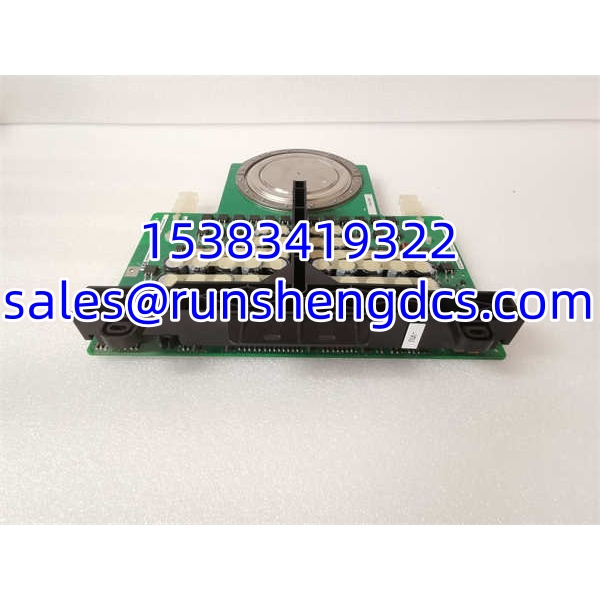

- Product Type: IGCT power semiconductor module
- Primary Model: 5SHX2645L0004
- Related Number: 3BHL000389P0104
- Brand: ABB
- Device Family: IGCT / gate-commutated thyristor-type switching device
- Function: Power switching / power conversion
- Typical Use: Drives, converters, inverters, industrial power electronics
- Voltage/Current Rating: Not fully confirmed from available data — must be read from the physical nameplate
- Package/Form Factor: Power semiconductor module family; confirm mechanical dimensions and stack fit
- Gate/Driver Compatibility: Must match the existing IGCT gate driver, trigger interface, and power stack
- Replacement Rule: Do not substitute based on “5SHX” prefix alone; confirm full part number, ratings, and mechanical compatibility
Product Introduction
A converter trips on a power-stack fault, and the failed part turns out to be a high-power switching device buried inside the stack. That is where ABB 5SHX2645L0004 belongs. It is an IGCT-type power semiconductor, meaning it handles serious switching duty in power conversion equipment rather than reading field signals like a normal automation I/O card.
The practical value is restoring a failed power stack without rebuilding the entire drive or converter. IGCT modules are chosen for high-power switching performance, but they are unforgiving: wrong voltage class, wrong current rating, wrong gate-driver match, or wrong mechanical stack can destroy the replacement during first power-up. Treat 5SHX2645L0004 as a power-electronics spare, not a plug-and-play control module.
Troubleshooting Quick Reference
| Fault | Likely Cause | Quick Check | Fix |
|---|---|---|---|
| Converter/drive reports power-stack fault | Failed IGCT, gate-driver fault, snubber issue | Check fault log and DC-link voltage | Measure DC bus, gate signals, snubber components |
| Device fails after replacement | Wrong type, wrong rating, poor mounting | Compare old and new nameplates | Use exact 5SHX2645L0004 match; verify ratings and package |
| Overcurrent or short-circuit trip | Load fault, cable fault, device failure | Isolate load and measure stack | Check motor cables, rectifier, inverter bridge |
| Overvoltage fault | Snubber, DC-link capacitor, braking circuit | Measure DC bus during fault | Inspect snubbers, capacitors, braking resistors |
| Gate-driver alarm | Gate cable, driver board, IGCT interface | Check gate wiring and driver status | Verify gate signals; do not energize if gate circuit is suspect |
| Overheating | Poor thermal contact, cooling failure, high load | Check heatsink, fan, airflow, thermal interface | Clean heatsink; verify cooling system and mounting pressure |

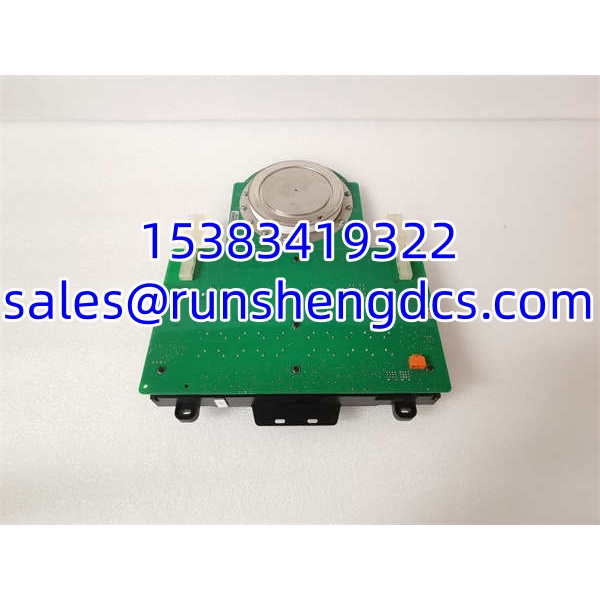

5SHX2645L0004 3BHL000389P0104
Application Scenarios & Pain Points
- Medium-voltage drives: A single IGCT failure can stop a fan, pump, mill, or process line. The pain is usually finding a replacement with the correct voltage/current rating and gate-driver compatibility.
- Industrial converters/inverters: Surplus listings often mix IGCT modules with PLC/DCS parts. That is a major procurement red flag.
- Power generation / grid equipment: IGCT modules are used in high-power conversion stacks. The real risk is installing a device that fits mechanically but has the wrong switching or voltage class.
- Renewable / energy storage converters: Replacement parts must match the original stack design. A wrong IGCT can fail during the first power-up.
- Spare-parts confusion: Some listings describe this family as a “controller,” “PLC module,” or “low-voltage power chip.” Those descriptions are not reliable for an IGCT power device.
