Description
Key Technical Specifications
- Part Number 1: 5SHX08F4502
- Part Number 2: 3BHB003387R0101
- Part Number 3: 5SXE05-0151
- Part Number 4: GVC703AE01
- Device Type: IGCT (Integrated Gate-Commutated Thyristor)
- Application: High-power AC/DC converters and VSDs
- Switching Frequency: Up to 50 kHz (system dependent)
- Cooling Method: Press-pack, typically water or forced air
- Gate Drive Interface: Integrated gate unit connection
- Mounting Type: Press-pack / Heat sink assembly
- System Compatibility: ABB ACS1000, ACS6000, or custom industrial drives
Product Introduction

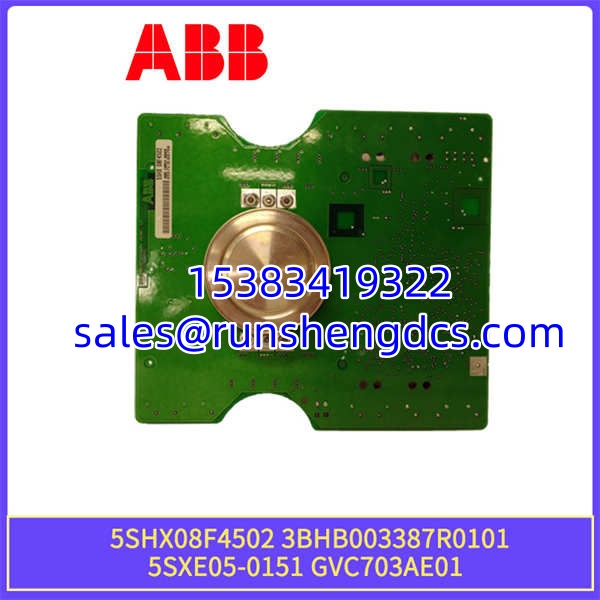

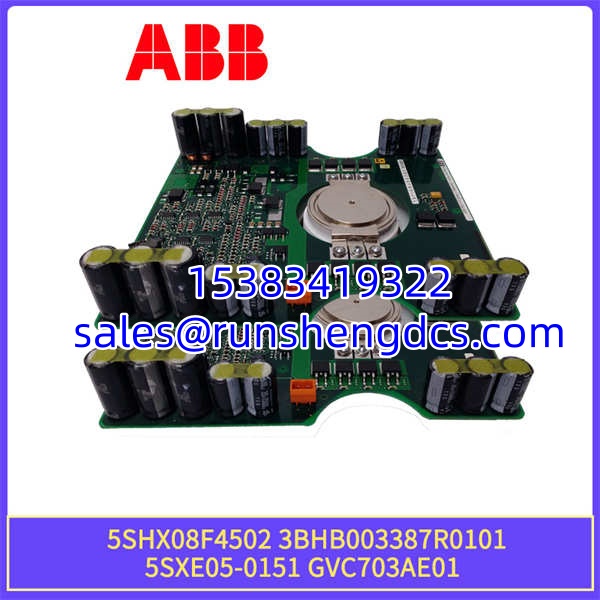

When a massive industrial drive trips and takes down your main process line, standard IGBTs often aren’t enough. You need heavy-duty switching, which is exactly where the ABB 5SHX08F4502 (also referenced as 3BHB003387R0101, 5SXE05-0151, or GVC703AE01) comes into play. This is an IGCT power module. It acts as the high-power muscle in heavy-duty variable speed drives, static VAR compensators, and industrial excitation systems, handling massive currents with incredibly low conduction losses.
Why source this specific press-pack module? Efficiency and thermal management. IGCTs handle higher power densities than standard IGBTs without needing complex parallel wiring. The low semiconductor losses translate directly to less heat generation and smaller cooling requirements. Bottom line—having the exact OEM power module on the shelf prevents extended downtime when a high-power converter fails.
Troubleshooting Quick Reference
- Fault: Drive trips on Overcurrent / Short Circuit | Cause: Failed IGCT or gate drive fault | Relevancy: High (90%) | Quick Check: Inspect gate drive board LEDs, measure IGCT resistance | Fix: Replace gate unit first, then IGCT if shorted
- Fault: Overtemperature Trip | Cause: Coolant flow restriction or degraded thermal paste | Relevancy: High (85%) | Quick Check: Verify coolant pressure/temp, check pump status | Fix: Flush cooling loop, re-press module with new thermal compound
- Fault: Gate Drive Comm Error | Cause: Fiber optic cable damage or dirty connector | Relevancy: Medium (70%) | Quick Check: Inspect fiber optics for sharp bends, clean ends | Fix: Replace fiber cable, verify optical power levels
- Fault: DC Bus Overvoltage | Cause: Braking resistor failure or regen overload | Relevancy: Medium (60%) | Quick Check: Measure braking resistor continuity | Fix: Replace braking resistor, check decel ramp times
ABB-5SHX08F4502-3BHB003387R0101-5SXE05-0151-GVC703AE01
Application Scenarios & Pain Points
- Mining & Metals: Massive mill drives demand continuous torque under extreme mechanical shock. The IGCT’s rugged press-pack design survives vibration that would crack standard soldered IGBT modules.
- Power Generation: Excitation systems require precise, reliable switching to maintain grid stability. Fast switching speeds and low losses keep the generator synchronized during severe grid faults.
- Marine Propulsion: Ship propulsion drives operate in high-vibration, salt-laden environments. The robust packaging of this ABB power module withstands harsh marine conditions without derating.
Compatible Replacement Models
- ✅ Drop-in Replacement: Exact match for 5SHX08F4502 or GVC703AE01. Verify the physical dimensions and gate drive interface match your existing press-pack housing.
- ⚠️ Software Compatible: Newer ABB IGCT revisions (e.g., 5SHY series). May require gate drive parameter adjustments and firmware updates in the drive controller. Budget engineering time for tuning.
- ❌ Hardware Incompatible: Standard IGBT modules or non-ABB power semiconductors. Completely different gate drive requirements and thermal interfaces. Do not attempt to adapt without a full converter redesign.
