ABB 3BSE038415R1 AO810V2 | S800 I/O Analog Output Module | 8 Channel

Description

Product Introduction

If you’re maintaining an ABB AC 800M or AC 800F controller, the AO810V2 is likely sitting in your rack right now. It’s the standard-bearer for analog outputs in the S800 I/O family. This module takes your digital control logic and turns it into the 4-20 mA signals that actually move your control valves and variable frequency drives.

What makes the “V2” version worth paying attention to is the built-in HART communication. You can pull diagnostic data from your smart valves without running extra wiring. It also features 1500V galvanic isolation, which is a lifesaver in plants with messy grounding. Just keep in mind: this is mature technology. If you’re buying it today, you’re probably looking at a refurbished unit. Ask for the test report. A module that passes a 24-hour burn-in is worth the extra 50 bucks over one that was just “powered on and checked.”

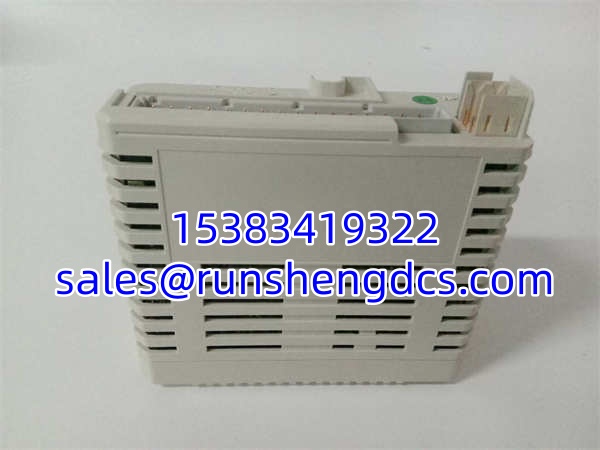

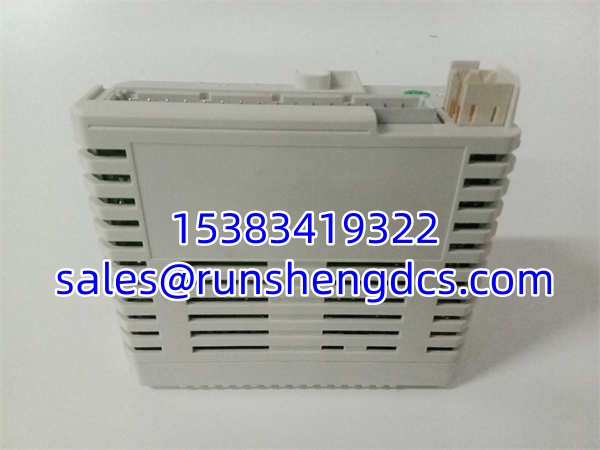

ABB 3BSE038415R1 AO810V2

Key Technical Specifications

Compatibility & Replacement Matrix

Quality Inspection & SOP Transparency

When sourcing reconditioned AO810V2 units, here is what a proper bench test should include:

1. Visual Inspection: Check the S800 bus connector pins for bending or corrosion. Inspect the HART communication traces for physical damage.
2. Power-On Self-Test: Install on an S800 rack. Verify the module LED shows green (no red fault). Check the controller hardware configuration for “Module OK” status.
3. Channel Sweep: Using a precision current source or multimeter, command 0%, 25%, 50%, 75%, 100% output on each channel. Verify the measured current is within ±0.1% of setpoint.
4. HART Communication Test: Connect a HART communicator or AMS device. Poll each channel. Verify you can read the device tag, range, and diagnostic status. A failed HART poll on even one channel is a reject.
5. Diagnostic Trigger Test: Disconnect a field wire. The module should report “Open Circuit” within 5 seconds. Short the output; verify “Short Circuit” alarm and 26mA current limiting.
6. Burn-In: Run all channels at 50% output for 4 hours at elevated temperature (45°C minimum). Monitor for thermal drift or intermittent faults.

Common Replacement Pitfalls

• Terminal Unit Mismatch: The works with TU810, TU812, TU814, TU830, or TU833. If your old module was on a TU810 and you buy a replacement without checking, you might get a module that’s fine but won’t mate with your existing terminal. Always verify the TU part number.
• HART Polling Address: Each channel on the has a unique HART polling address (usually 0-15). If you swap modules and your HART devices disappear, the new module’s polling addresses might be set to default. Reconfigure them to match the old module’s settings.
• Safe State (OSP) Configuration: When a channel fails, does it go to 0 mA, 22 mA, or hold last value? This is configured in the controller logic. If you replace a module and your valves slam shut, check the OSP (Output Safe State) parameter in your control builder.
• Bus Connector Seating: The S800 bus connector is a common failure point. When installing, apply even pressure. A cocked module will show “Module Fail” or intermittent communication. Listen for the click.
• Firmware Revision: While rare for analog modules, firmware mismatches can occur. If your AC 800M controller is running a very old firmware, a newer might not be recognized. Check the ABB compatibility matrix.

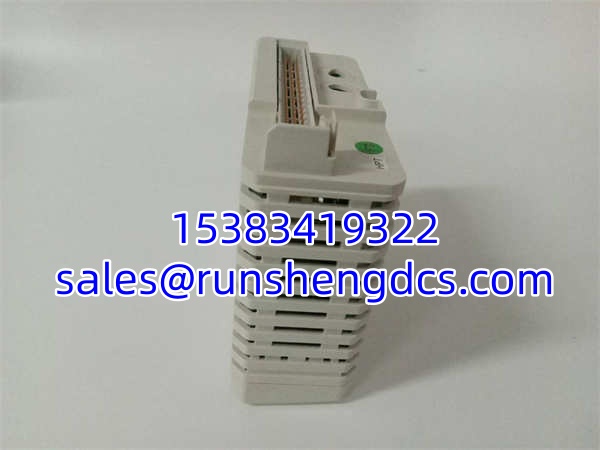

ABB 3BSE038415R1 AO810V2

Frequently Asked Questions

A: Yes. The S800 I/O supports hot-swapping. The controller will detect the module removal and re-insertion. However, always put the affected channels into a safe state (manual mode or forced output) before pulling the module to prevent valve movement.

Q: My HART devices aren’t responding. Is the module bad?
A: Not necessarily. Check these first:

1. Is the HART polling address set correctly in the controller config?
2. Is there at least 250Ω of resistance in the loop? HART needs minimum load.
3. Are you using shielded twisted pair? HART is sensitive to noise.
4. Try a handheld HART communicator directly at the terminal unit. If it works there but not via the controller, it’s a configuration issue, not a hardware fault.

Q: What does “OSP” mean in the diagnostics?
A: Output Safe State. This is the configured behavior when a channel fails. Options are typically: 0 mA, 22 mA (over-range), Hold Last Value, or Custom Value. Check your control strategy to see what your process requires.

Q: Can I use this module for voltage output?
A: No. The is strictly a current output module (0-20 mA / 4-20 mA). If you need voltage output, you need the AO820 module. Do not try to add external resistors to convert; the compliance voltage won’t support it.

Q: How do I interpret the “Channel Error” LED?
A: The module has individual channel status in the controller software. Common causes:

• Open Circuit: Field wire broken or disconnected.
• Short Circuit: Output wired to ground or another channel.
• Power Supply Low: The 24V field supply to the terminal unit is below threshold.
• Calibration Fail: Internal D/A converter out of spec (module needs replacement).

Q: Is the 3BSE038415R1 part number critical?
A: Yes. That is the exact ordering code. You might see “” listed without the full number, but always verify the 3BSE038415R1 matches. Earlier revisions (like AO810 without V2) have different HART capabilities and may not be drop-in replacements.
