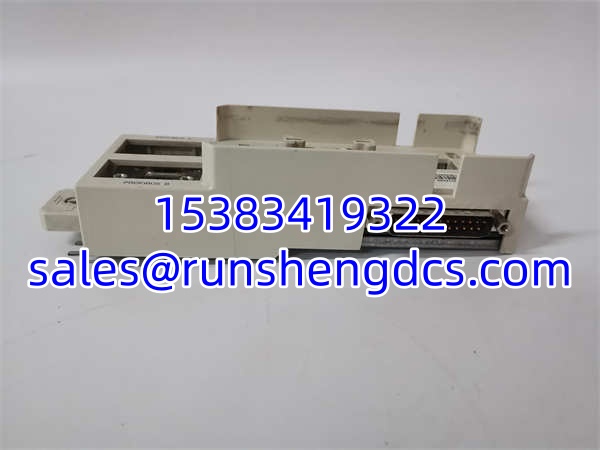

ABB 3BSE025349R1 TP854 | Baseplate for CI854‑Series Communication Modules

Description

Product Introduction

ABB 3BSE025349R1 TP854 forms the physical termination layer for CI854, CI854A and CI854B Profibus DP‑V1 communication modules within AC800M hardware racksABB Group. It mounts on standard DIN rail and carries two independent Profibus D‑Sub connectors for field bus wiring.

In field deployments we found this baseplate accepts 24 V backplane power and imposes 1.2 W typical load on the rack power supply. It works within −20 °C to +60 °C ambient range, though enclosure airflow matters here. Well, technically it carries bus signals only; it contains no active processing electronics.

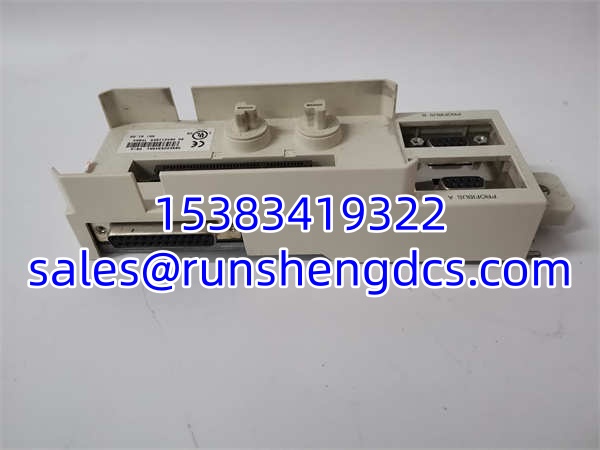

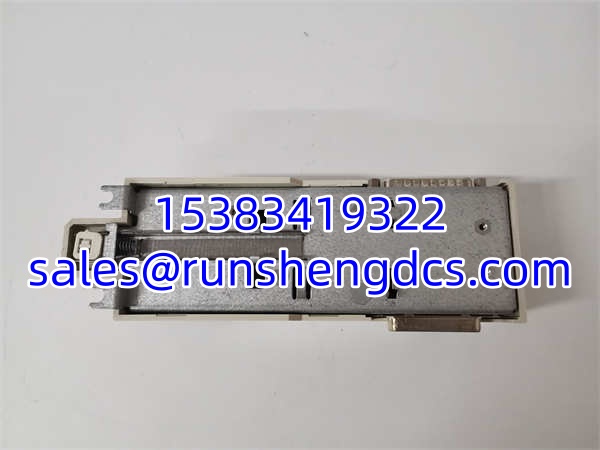

ABB 3BSE025349R1 TP854

Key Technical Specifications

Compatibility & Replacement Matrix

plaintext

3BSE025349R1 TP854 → 3BSE025349R1 TP854 : Direct — exact OEM spare, no wiring changes
TP854 (3BSE025349R1) → TP851 : Incompatible — different backplane connector and port layout
TP854 (3BSE025349R1) → TP830 : Needs Adaptation — mechanical footprint mismatch; cannot reuse Profibus cabling
CI854+ assembly → CI854A+ : Direct — baseplate supports both revisions; verify CI854A firmware matches AC800M controller version

Quality Inspection & SOP Transparency

1. Incoming InspectionWe cross‑reference packing list and source documentation against the printed part number 3BSE025349R1. Serial number lookup validates OEM label authenticity. Visual check searches for PCB corrosion, scratch marks, or prior repair solder traces. We inspect D‑Sub connector pins for bending and confirm locking latches operate smoothly. Any accompanying accessories get logged.
2. Live Functional TestTested on an ABB AC800M test rack with PM866 CPU and Control Builder M v6.1. We seat a known‑good CI854A onto the baseplate. Power‑on validates backplane handshake; we cycle Profibus A and B bus handshakes against a Profibus DP slave simulator. 24‑hour load run logs temperature rise at D‑Sub connectors. A full test report gets generated. Test photos and video available on request.
3. Electrical Parameter TestWe use a Fluke 115 multimeter and 500 V megger. Insulation resistance measures >10 MΩ across signal‑to‑ground paths. Ground continuity checks verify DIN‑rail earthing path. No hi‑pot test applies for this passive baseplate unit.
4. Firmware VerificationThis baseplate holds no firmware itself. We record the firmware revision of the paired CI854 communication module during bench testing. D‑Sub termination resistor switch positions are photographed for customer reference.
5. Final QC & PackagingQC technician signs off against the checklist. Unit goes into anti‑static bag, sealed, then bubble‑wrapped and boxed. A QC‑Passed label prints with inspection date.

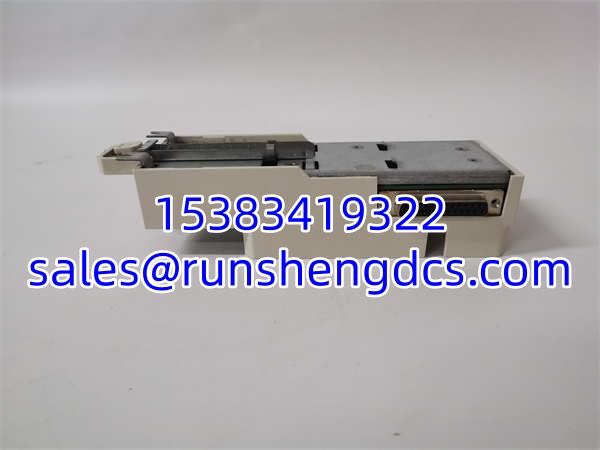

ABB 3BSE025349R1 TP854

Common Replacement Pitfalls

1. Firmware Revision MismatchThe baseplate itself has no firmware, but the CI854 / CI854A plugged into it does. Case: A site swapped only the CI854 module while re‑using existing ; the new ran firmware v4.1 while the AC800M PM866 ran old v3.0. Profibus timeouts persisted until controller firmware got aligned. Always record existing CI‑module firmware before ordering parts.
2. DIP Switch / Jumper Misconfiguration❗ Two physical termination resistor switches sit on front face. Factory defaults rarely match field bus settings. Take a photo. Then take another. This catches 80% of config errors before they happen. Many technicians forget these switches and see intermittent bus drops.
3. Connector / Terminal IncompatibilityBoth D‑Sub A and B ports use standard Profibus pin‑out, but pin assignment differs from some third‑party adapters. Cross‑check ABB 3BSE027941‑R301 hardware manual before re‑terminating field cables. Shield grounding should use single‑end grounding for this assembly.
4. Power Budget ShortfallThough draws only ~1.2 W, the family module adds up to 4.5 W extra load. Calculate full rack consumption with 20 % headroom. Example: Adding three ‑on‑ assemblies can push a lightly‑sized 24 V PSU past its sustained rating.
5. ESD DamageThis baseplate is passive, but the module seated upon it is ESD‑sensitive. Watched an engineer grab a bare‑handed once. It smoked on power‑up. $2,000 gone. Use wrist strap and anti‑static mat when handling the plugged‑in communication electronics.

FAQ

Depends on your situation:

• If you reuse your existing / / CI854B module: yes, mechanical fit is direct. Reset the termination resistors to match your bus layout.
• If you also replace the CI‑module: confirm CI‑module firmware matches your AC800M controller revision.

No. The reason is TP851 uses a different backplane edge connector and physical port arrangement. You cannot drop‑in replace TP851 with without mechanical and wiring rework.

Honestly, we’ve run into this. The hardware itself is neutral to system software versions. The constraint lives on the plug‑in card. AC800M V5.0 supports firmware up to v3.5. If your CI card runs newer firmware, you will need to downgrade it or upgrade your controller. Verify with OEM datasheet.

Q: Is this baseplate hot‑swappable?Only the upper communication module is hot‑swappable. The baseplate stays latched onto the DIN rail and backplane. Do not remove while rack power remains active; this will drop the CEX‑bus for that slot.

We provide 12‑month parts warranty from shipment date. Returns are accepted only for units that fail our documented acceptance test; physical damage from field installation voids coverage.

Q: What documents ship with the unit?Three steps:

1. Packing slip with full part‑number and serial number
2. Our internal QC test report
3. Link reference to ABB public hardware manual 3BSE027941‑R301.Original OEM printed manuals are not included with surplus stock.
