Description
Key Technical Specifications
- Brand: ABB
- Model Number: 216NG63A-HESG441635R1
- Alternative Part Number: HESG216877K
- Input Voltage Range: 36 VDC to 312 VDC
- Output Voltage: 24 VDC
- Output Power Rating: 150 Watts
- Protection Features: Short-circuit and overload protection
- Redundancy Support: Parallel connection for redundant output
- Physical Footprint: 3 Rack Partitions (Standard 19-inch Rack)
- System Compatibility: REG216 Protection Framework
- Function: Auxiliary DC Power Conversion & Distribution
Product Introduction
Generator protection relays are the last line of defense for million-dollar turbines, and they absolutely cannot lose power during a grid fault. The ABB 216NG63A (HESG441635R1 / HESG216877K) is an auxiliary DC power supply unit built specifically for the REG216 digital generator protection framework. Sitting in a standard 19-inch rack, it takes wide-ranging DC station battery inputs (36 to 312 VDC) and converts it to a rock-solid 24 VDC output to keep the protection logic alive.
Bottom line—this module is engineered for fault tolerance in critical infrastructure. It delivers 150 Watts of continuous power and features built-in short-circuit and overload protection to prevent cascading failures. For maximum reliability, these units can be paralleled to provide redundant 24 VDC outputs. If your REG216 system is experiencing brownouts or tripping due to power supply degradation, this exact-match board restores your generator’s safety margins instantly.
Troubleshooting Quick Reference
- Fault: Protection relay dropping offline / brownout | Cause: Power supply failing under load | Relevancy: 80% chance of degraded PSU | Quick Check: Measure 24 VDC output under load | Fix: Replace 216NG63A module, verify load draw
- Fault: Redundancy alarm triggered | Cause: Parallel connection failure or dead unit | Relevancy: 70% chance of redundant link issue | Quick Check: Check parallel bus connections and LED status | Fix: Reseat module, verify redundant wiring
- Fault: Input fuse blown / no output | Cause: Station battery surge or internal short | Relevancy: 60% chance of external overvoltage | Quick Check: Measure station battery voltage (must be < 312 VDC) | Fix: Replace fuse/PSU, investigate station battery charger
- Fault: Intermittent relay resets | Cause: Overload protection tripping | Relevancy: 50% chance of downstream short | Quick Check: Megger test downstream 24 VDC wiring | Fix: Isolate short circuit, replace PSU if internal fault

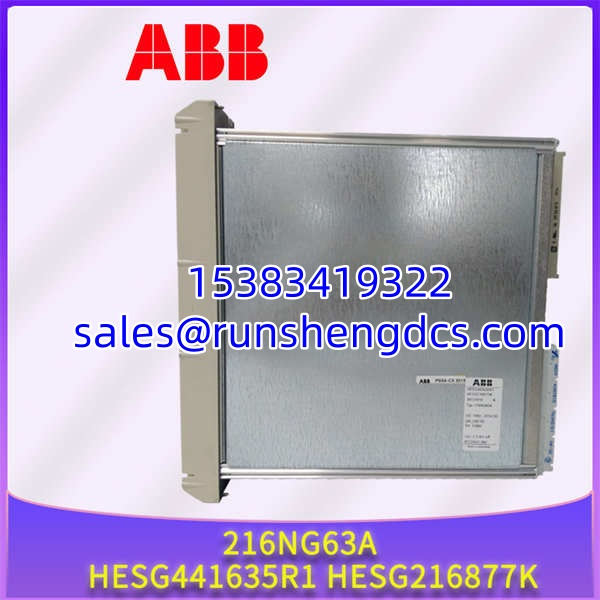

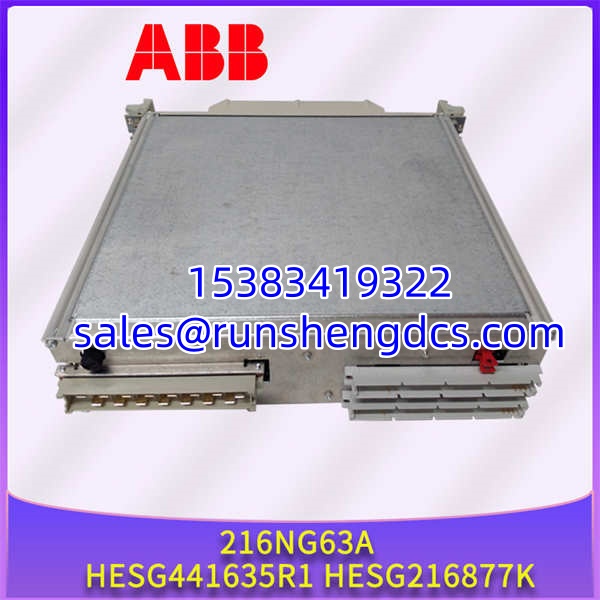

ABB-216NG63A-HESG441635R1-HESG216877K
Application Scenarios & Pain Points
- Hydro & Thermal Power Plants: Generator protection must survive severe grid transients. The 36-312 VDC wide input range handles massive station battery fluctuations during faults.
- Substation Upgrades: Legacy REG216 panels need reliable power. Sourcing this exact HESG441635R1 avoids replacing the entire protection rack.
- Heavy Industrial Cogeneration: Plant turbines require redundant 24 VDC. Paralleling these modules guarantees zero downtime during power supply maintenance.
Compatible Replacement Models
- ✅ Drop-in Replacement: 216NG63A-HESG441635R1 / HESG216877K (Exact Match). Hardware identical. Zero reprogramming required. Verify parallel wiring if redundancy is used.
- ⚠️ Software Compatible: 216NG62A (HESG441634R1). Same 216 series power family, but requires physical rack space and wiring verification. Budget 2-4 hours of engineering labor to ensure backplane compatibility.
- ❌ Hardware Incompatible: Generic 24 VDC DIN-rail power supplies. Do not attempt to adapt these. Missing REG216 backplane connectors, no redundant parallel capability, and zero fault-tolerance for protection relays. Will compromise grid safety.
