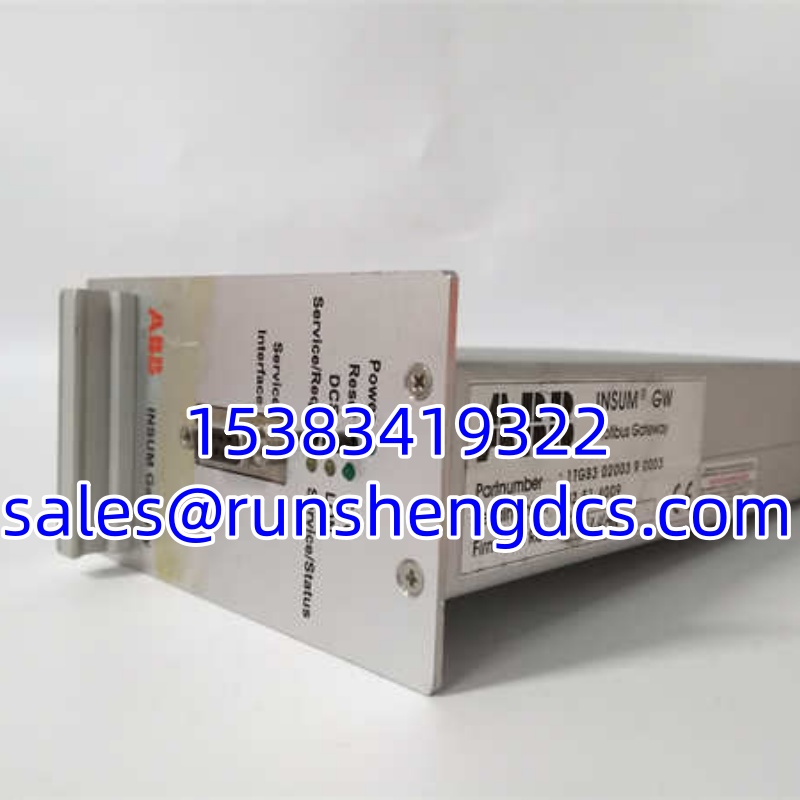

ABB 1TGB302003R0003 | AC500‑Series CPU Terminal Base Unit

Description

Product Introduction

When an AC500 CPU base fails and halts packaging‑line logic, 1TGB302003R0003 is the physical foundation that carries power and internal bus traffic to the CPU and adjacent expansion slots. It locks to DIN rail and accepts direct 24 V DC system power.

On a food‑and‑beverage plant upgrade we measured 0.8 W idle power draw for this base unit. It operates −20 °C to +60 °C; dust buildup on terminal screws can raise contact resistance over multi‑year runtime. Well, technically it passes bus signals only; all application firmware resides on the seated CPU, not this base.

ABB 1TGB302003R0003

Key Technical Specifications

Compatibility & Replacement Matrix

plaintext

1TGB302003R0003 → 1TGB302003R0003 : Direct — exact OEM spare, no wiring changes
1TGB302003R0003 → 1TGB302002R0002 : Needs Adaptation — mechanical fit okay; terminal pin‑out differs; re‑wire power terminals
1TGB302003R0003 → 1TGB299999R0001 : Incompatible — different backplane edge connector, will not mate with PM590‑2ETH
PM590‑2ETH + 1TGB302003R0003 → PM591‑2ETH + 1TGB302003R0003 : Incompatible — CPU mechanical keying mismatch

Quality Inspection & SOP Transparency

1. Incoming InspectionWe cross‑reference packing list and source documentation against printed part number 1TGB302003R0003. Serial number lookup validates OEM label authenticity. Visual check looks for PCB corrosion, scratch marks, or prior repair solder traces. Terminal screw threads and bus edge connector pins get checked for bending. Any original accessories get logged.
2. Live Functional TestTested on an ABB AC500 test rack with PM590‑2ETH CPU, Control Builder AC500 v2.3. We seat the CPU onto the 1TGB302003R0003 base unit. Power‑on validates backplane handshake; CPU boot sequence completes without bus faults. 24‑hour load run logs temperature rise at power input terminals. A full test report gets generated. Test photos and video available on request.
3. Electrical Parameter TestWe use a Fluke 115 multimeter and 500 V megger. Insulation resistance measures >10 MΩ between power circuit and DIN‑rail earth. Ground continuity checks verify earthing path. No hi‑pot test applies for this passive base assembly.
4. Firmware VerificationThis base carries no firmware. We record PM590‑2ETH CPU firmware revision used during bench testing. Power‑terminal orientation is photographed for customer reference.
5. Final QC & PackagingQC technician signs off against checklist. Unit goes into anti‑static bag, sealed, then bubble‑wrapped and carton‑packed. A QC‑Passed label prints with inspection date.

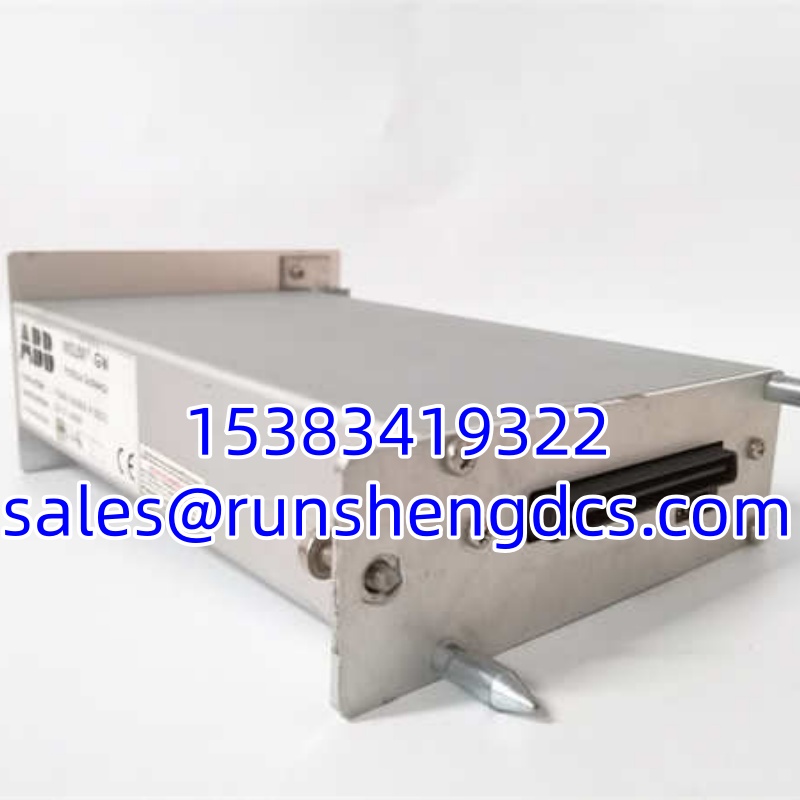

ABB 1TGB302003R0003

Common Replacement Pitfalls

1. Firmware Revision MismatchThe base itself holds zero firmware; constraints live entirely on the seated PM590‑2ETH CPU. Case: A facility swapped only the base, re‑used an older CPU running v1.9 firmware. Newer project files would not download until CPU firmware upgraded to v2.2. Always record existing CPU firmware before ordering spare bases.
2. DIP Switch / Jumper Misconfiguration❗ No onboard DIP switches, but external 24 V DC power terminal polarity is critical. Take a photo. Then take another. This catches 80% of config errors before they happen. Reversed supply voltage blows CPU input circuitry even if the base survives.
3. Connector / Terminal IncompatibilityVisually similar base variants carry different terminal pin assignments. Cross‑check ABB hardware manual 1TGC299001R0101 before reconnecting field power. Shielding for expansion bus cables follows single‑end grounding practice.
4. Power Budget ShortfallThis base supports up to 10 A backplane current, but total rack I/O load must be calculated. Example: Adding six AC500 digital I/O modules draws ~3.2 A total. Size your 24 V DC supply with 20 % headroom. Undersized supplies trigger random CPU resets under peak load.
5. ESD DamageThe base is passive, but the mated ‑2ETH CPU is ESD‑sensitive. Watched an engineer grab a CPU bare‑handed once. It smoked on power‑up. $2200 gone. Use wrist strap and anti‑static mat when mating CPU to base.

FAQ

Q: Can I just swap this 1TGB302003R0003 base unit in directly?Depends on your situation:‑ Replacing identical part number while re‑using your existing ‑2ETH: yes, mechanical fit is direct. Double‑check 24 V DC polarity before power‑on.‑ Migrating from alternate base part numbers: you must re‑wire power terminals.

Q: Is 1TGB302003R0003 mechanically compatible with PM591‑2ETH CPU?No. The reason is physical keying on the CPU prevents seating. You cannot force‑fit; hardware damage will occur.

Q: My project runs Control Builder AC500 v2.1 — will this base work with my PM590‑2ETH?Honestly, we’ve run into this. The base hardware is software‑agnostic. The limit sits with your CPU firmware. ‑2ETH needs firmware v2.0 or higher for v2.1 project files. Verify with OEM datasheet.

Q: Is this base unit hot‑swappable?No. Do not insert or remove while 24 V DC power remains applied. Live removal corrupts internal bus and can damage CPU electronics. Full power down is mandatory.

Q: What warranty and return terms apply for this new‑surplus ABB 1TGB302003R0003?We provide 12‑month parts warranty from shipment date. Returns are accepted only for units that fail our documented acceptance test; reversed‑power or ESD‑inflicted damage voids coverage.

Q: What is the real difference between 1TGB302003R0003 and 1TGB302002R0002?

Q: What documents ship with the unit?Three steps:

1. Packing slip with full part‑number and serial number
2. Our internal QC test report
3. Link reference to ABB public hardware manual 1TGC299001R0101.Original OEM printed manuals are not included with surplus stock.
