ABB 07AC91H GJR5252300R3101 | Advant Controller 31 Analog I/O Module

Description

Key Technical Specifications

Product Introduction

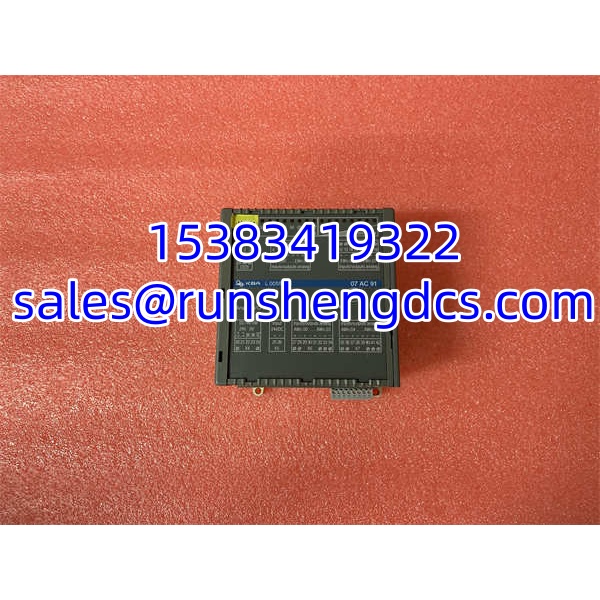

The ABB 07AC91H (GJR5252300R3101) is an analog I/O module for the Advant Controller 31 family. It provides eight analog inputs and eight analog outputs, typically handling ±10 V or 0–20 mA process signals at 12-bit + sign resolution. In an AC31 rack, this module sits between field instruments and controller logic — reading transmitters, potentiometers, or sensor signals on the input side, and driving setpoints, valve positioners, or analog actuators on the output side.

This is a legacy module. AC31 has been phased out in favor of AC500, and ABB has offered AC31 adapter modules based on AC500 hardware for selected migration scenarios. For existing systems, the 07AC91H is primarily a sparing item. For new projects, it should not be selected unless you are maintaining an installed AC31 base.

ABB GJR5252300R3101 07AC91H

QA/QC Transparency SOP

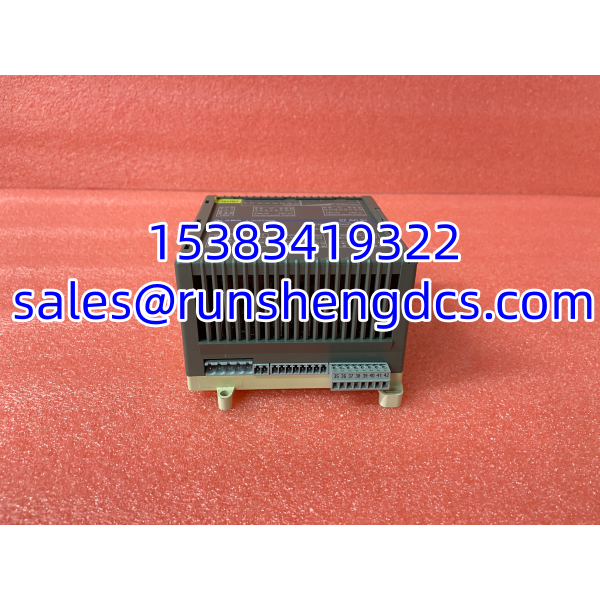

1. Intake & Origin Verification: Record both identifiers — 07AC91H and GJR5252300R3101. Photograph the front label, revision markings, terminal blocks, and node-address settings.
2. Visual & Mechanical Inspection: Check DIN-rail mounting, connector pins, screw terminals, and PCB condition. Reject units with cracked housings, burnt terminals, corroded contacts, or swollen capacitors.
3. Power-Up Check: Apply 24 V DC and verify normal LED indications. Measure supply current against expected behavior for a healthy AC31 analog unit.
4. Channel Verification: Inject known ±10 V and 0–20 mA test signals into AI channels and compare controller readbacks. Drive AO channels with fixed values and measure outputs with a calibrated meter. Check for channel drift, crosstalk, and out-of-range flags.
5. Final QC & Packaging: Document channel-by-channel results, label the unit with test date and revision, and pack in anti-static, moisture-controlled packaging. Include a test report referencing both part numbers.

Field Engineer Gotchas

• Suffix matters. 07AC91, 07AC91F, and 07AC91H may differ in firmware, calibration, or diagnostic behavior. Do not assume drop-in interchangeability.
• is not AC800M or S800. This module belongs to the Advant Controller 31 family and cannot be installed in AC800M or S800 racks.
• Signal range mismatches cause phantom faults. A loop wired for 4–20 mA may read incorrectly if the module or controller scaling assumes 0–20 mA or ±10 V.
• Node address and configuration must match. analog modules often depend on node numbering and channel scaling. A replacement that powers up but has wrong parameters will look like a field wiring fault.
• Beware inflated third-party specs. Some listings add Ethernet, Profibus, DeviceNet, DI/DO channels, or 16-bit resolution to the 07AC91 family. Those claims are not confirmed for 07AC91H and should not be used for procurement.
• Terminal wear is common on legacy racks. Loose or oxidized terminals can mimic failed channels.

ABB GJR5252300R3101 07AC91H

Application Scenarios

• Legacy Series 90 control systems requiring mixed analog inputs and outputs.
• Process monitoring for temperature, pressure, flow, level, or position signals using ±10 V or 0–20 mA instruments.
• Analog setpoint output to drives, valve positioners, actuators, or recorders.
• Spare-part replacement where OEM-new stock is no longer available and tested surplus is the practical option.
• Migration assessment projects where an existing rack must be evaluated for AC500 adapter replacement.

FAQ

• Is 07AC91H the same as GJR5252300R3101?
  Yes. 07AC91H is the module designation, and GJR5252300R3101 is the associated order/assembly number. Confirm both on the physical label.
• Can I use this module in an AC800M or S800 system?
  No. It belongs to the Advant Controller 31 family, which is legacy and separate from AC800M/S800 I/O.
• How many channels does it have?
  Listed specifications show 8 analog inputs and 8 analog outputs.
• What signal ranges does it support?
  Published data indicates ±10 V and 0–20 mA. Do not assume 4–20 mA unless the controller scaling and wiring confirm it.
• Does it have digital I/O or Ethernet?
  Not reliably for the 07AC91H variant. Claims of DI/DO channels, Ethernet, Profibus, or DeviceNet appear in third-party listings but are not confirmed by OEM-level documentation for this part.
• Is new stock available?
  Unlikely. is discontinued. Most availability comes from surplus, refurbished, or unused old stock.
• Can 07AC91F be replaced with 07AC91H?
  Only after verification. Suffix differences may affect calibration, diagnostics, or configuration. Treat each suffix as a separate part until the OEM documentation confirms compatibility.
