Description
Key Technical Specifications
- Model Number: PSCCM22AAN-16418-5314
- Manufacturer: Yokogawa. Series: Quadlog / ProSafe-PLC CCM+
- Supply Voltage: 24 VDC
- Max Current Draw: 0.6 A
- Communication Signals: ±15 Vdc system backplane interface
- Ambient Operating Temp: 0 °C to +70 °C
- Hazardous Area Rating: Class I, Div.2, Groups A,B,C,D; Temp Code T4A
- Function: Safety logic processor, fault-diagnostic execution, system communication
- Form Factor: Rack-mount critical control module
- Certification Basis: Designed for SIL 3 safety loop applications under IEC 61508/61511
- Compatibility: ProSafe-PLC / Quadlog system racks; not a Centum DCS FCS controller
Functional Role & Application Analysis
The PSCCM22AAN CCM+ is not a general-purpose DCS controller. It is the core safety processor for Quadlog/ProSafe-PLC safety systems. It executes user safety logic, continuously diagnoses its own hardware and backplane communications, and drives trip logic for emergency shutdown and fire & gas systems. Any unplanned fault can force the process to a safe state, which is the whole point of the platform.
Many site mistakes come from treating it like a regular PLC card. This module must be matched to the exact rack firmware, backplane, and I/O family. Mismatched revisions can cause silent misdiagnostics or commissioning lockups. It also cannot be mixed with standard Centum CS3000/VP control processors.
- Use Case 1: ESD safety logic replacement in refinery, petrochemical, and LNG legacy Quadlog installations
- Use Case 2: Fire & gas system controller replacement for offshore and onshore safety racks
- Use Case 3: Planned spare inventory for SIL 3 protection loops where OEM support has contracted
- Use Case 4: Unit retrofit during turnaround; direct drop-in only when rack and firmware are validated
- Use Case 5: System migration planning; temporary spare while evaluating modern ProSafe-RS migration
Our Quality Standard & Testing Process
We understand that the cost of an unreliable safety part is far greater than its purchase price. A misdiagnosing CCM+ can hide dangerous field faults or initiate unnecessary plant trips. We do not rely only on visual inspection for safety modules.
- Visual & Component Inspection: Enclosure, edge connectors, board traces, and LEDs are checked for corrosion, bent pins, or prior rework. Any sign of overheating or connector damage rejects the unit.
- Power Cycle & Rail Stability Test: Apply 24 VDC supply and verify inrush and steady-state current stay within published limits; monitor for intermittent dropout.
- Backplane Communication Simulation: Interface with compatible test rack hardware to confirm handshake, status LED behavior, and fault reporting.
- Diagnostic Coverage Check: Force known fault conditions to verify the module detects and reports them per system specifications.
- Firmware & Label Validation: Match part suffix, revision, and ROM version against the customer’s installed base before shipping.
- Warranty Backing: Only modules passing all safety-focused tests ship with our 12-month warranty. Test records are retained for traceability.

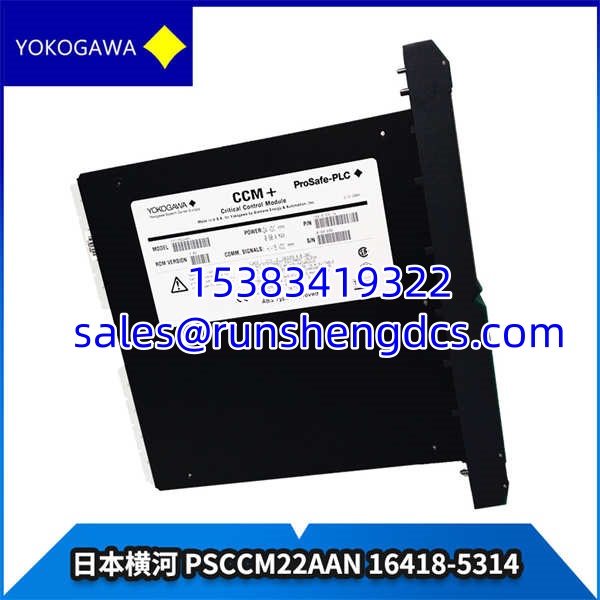

YOKOGAWA PSCCM22AAN-16418-5314
Compatibility & Migration Paths
To deploy this PSCCM22AAN safely, you must verify several non-negotiable items. This is a SIL-rated legacy safety component; “it fits the slot” is not enough. Skipping revision checks creates process safety risk.
- Firmware/Hardware Revisions: ROM version and module hardware revision must align with your rack backplane and system software. Older rack firmware may not recognize later module revisions.
- Required Components: It requires the matching Quadlog/ProSafe-PLC backplane and associated power supply. It will not operate in Centum DCS racks.
- Safety Validation: Spare replacement alone does not satisfy site SIL proof-test requirements. You must complete site loop testing after swap.
- Replacement & Alternatives: This exact part number is the direct replacement for existing 16418-531/4 units. If your site is long-term, do not keep stocking legacy CCM+; plan migration to ProSafe-RS or modern SIL 3 safety PLC.
- Get Expert Help: Send photos of your existing module label, rack model, and software revision. Our team can flag incompatibilities before you remove the working unit.
