Description
Key Technical Specifications
- Model Number: CP-9200SHSVA
- Manufacturer: YASKAWA (安川)
- Product Type: Machine Controller / PLC Module
- Structure Form: Modular Type
- Power Supply: 24 VDC Power Group
- Operating Temperature: 0°C to 60°C
- Environmental Humidity: 5% to 95% (Non-condensing)
- Installation Method: Control Room Rack Mount
- Certifications: CE Marked
- Protection Features: Short-circuit, Long-term Overload, and Open-phase Protection
Functional Role & Application Analysis
The YASKAWA CP-9200SHSVA is a critical machine controller module engineered to manage and coordinate power-driven equipment within industrial automation systems. It serves as the central logic processor for PLC-controlled processes, executing complex sequential control and system simulation experiments. This module solves vital operational challenges by ensuring that electrical drag equipment operates safely, such as preventing unintended motor rotation during power-up and managing precise interlocking sequences.
- Sequential Control Execution: Processes logic to control relays, contactors, and actuators, ensuring equipment operates strictly according to designed工艺流程 (process flows).
- System Simulation & Debugging: Facilitates empty-load and simulated linkage tests by allowing manual overrides and internal forcing of I/O nodes to validate system logic before full deployment.
- Motor Protection & Safety: Integrates critical protection logic, utilizing thermal relays and circuit breakers to prevent motor damage from long-term overloads, short circuits, or open-phase operation.
- Legacy System Maintenance: Replaces obsolete controller boards in aging YASKAWA infrastructure, preventing costly system-wide retrofits and minimizing production downtime.
Our Quality Standard & Testing Process
We understand that the cost of an unreliable part is far greater than its purchase price. A failed controller module can halt an entire production line or cause severe mechanical damage. We have established a rigorous, multi-stage testing process to ensure every CP-9200SHSVA we ship is 100% functional.
- Visual & Component Inspection: All parts undergo professional cleaning and high-magnification visual inspection to ensure no physical damage, corrosion, or compromised solder joints on the PCB.
- Live System Test: The module is installed in a live YASKAWA test rack and run for 24 hours to verify continuous operation, 24 VDC power stability, and thermal performance.
- Full-Function Diagnostics: We simulate digital and analog inputs to test the module’s logic execution, verifying output node switching, interlock sequencing, and protection relay functionality.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment and backed by our full 12-month warranty.

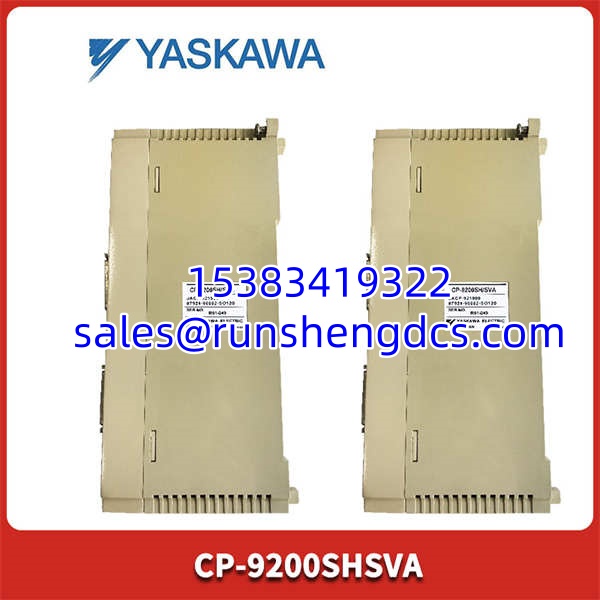

YASKAWA CP-9200SHSVA
Compatibility & Migration Paths
To ensure this CP-9200SHSVA is 100% compatible with your system, you must check these key compatibility points. Failure to verify this is a common project risk that leads to costly downtime.
- Exact Model Match: Confirm your system requires the exact CP-9200SHSVA (or CP-9200SH/SVA) designation. Even minor suffix variations in YASKAWA modules can indicate different firmware or I/O configurations.
- Power Supply Verification: Verify your control panel provides a stable 24 VDC power group capable of supporting this controller module alongside your existing I/O and motor drives.
- Protection Logic Alignment: Ensure your existing motor protection hardware (thermal relays, breakers) aligns with the protection parameters expected by this controller to prevent nuisance tripping.
- Get Expert Help: Unsure about your system? Contact our technical team today for a free compatibility check.
