Description
Product Introduction

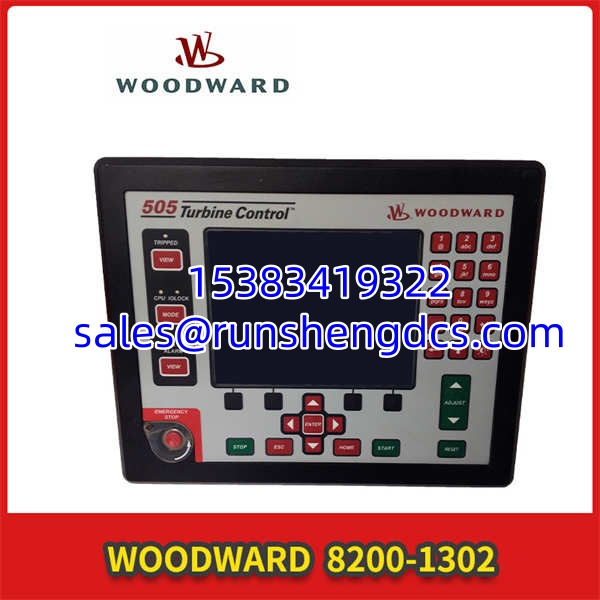

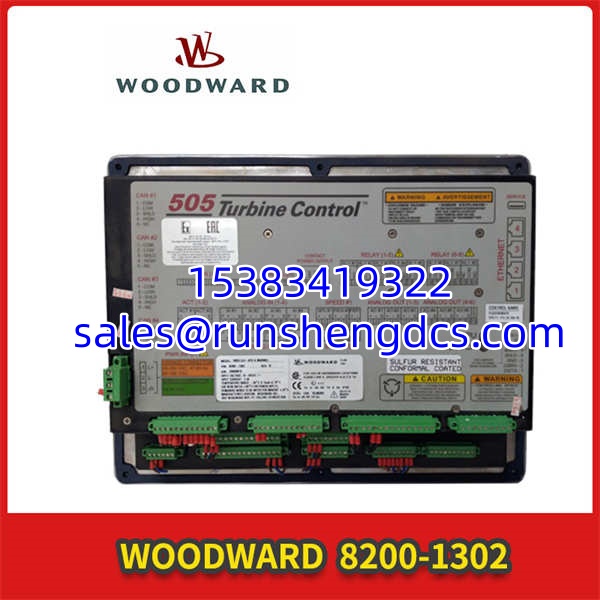

The Woodward 8200-1302 is the control heart of the 505 Digital Governor, a unit you’ll find on countless steam turbines driving pumps, fans, and small generators. It handles the entire startup sequence, from turning gear speed to synchronous speed, and then manages the load once the generator breaker closes.
What makes this controller a workhorse is its ability to handle the full range of turbine control with a single, integrated package. It accepts a 100-240 VAC power input, making it flexible for different plant electrical systems, and provides a robust 24 VDC output to drive the steam valve actuator directly. The front panel gives you a clear view of speed, load, and any active alarms, which is invaluable when you’re trying to diagnose a trip at 2 AM.
WOODWARD 8200-1302
Key Technical Specifications
| Specification | Detail |
|---|---|
| Product Model | 8200-1302 |
| Manufacturer | Woodward |
| Product Series | 505 Digital Governor |
| Control Type | Single-Valve Steam Turbine Control |
| Power Supply Input | 100-240 VAC, 50/60 Hz |
| Power Consumption | 50 VA maximum |
| Actuator Driver Output | 24 VDC, 2.0 A maximum |
| Speed Input | Magnetic Pickup (MPU), 2-30 VAC |
| Speed Range | 0 to 20,000 Hz |
| Analog Inputs | 4 isolated, 4-20 mA |
| Analog Outputs | 2 isolated, 4-20 mA |
| Contact Inputs | 8 isolated, dry contact |
| Contact Outputs | 6 Form-C relays |
| Communication | Modbus RTU (RS-485) |
| Operating Temperature | -30 to +65 °C |
| Enclosure Rating | NEMA 4X / IP66 (front panel) |
Compatibility & Replacement Matrix
- 505-61302 → 8200-1302 : Direct Replacement — The 8200-1302 is the current part number for what was previously ordered as 505-61302. It is a direct hardware and software replacement.
- 8200-1301 → 8200-1302 : Needs Adaptation — The -1301 model is for a different actuator driver configuration (often high-current). While it may physically fit, the output stage is different. You must verify your actuator’s current draw and reconfigure the governor setup before using it as a replacement.
- 8200-1302 (Firmware v3.x) → 8200-1302 (Firmware v4.x) : Needs Adaptation — A newer firmware version might have different default logic or communication parameters. You should always back up the configuration from the old unit and restore it to the new one, but be prepared to re-verify the setup, especially if there were firmware-specific bugs that have since been fixed.
Quality Inspection & SOP Transparency
We know a faulty governor can mean a turbine won’t start, or worse, won’t shut down correctly. Our inspection process is designed to verify the logic and outputs before it ships.
- Incoming Inspection: We verify the part number 8200-1302 and the serial number against the packing list. Every unit gets a visual check for physical damage, especially to the front panel keypad and the terminal block connectors. We look for any signs of heat damage or corrosion.
- Live Functional Test: The 8200-1302 is mounted in a test jig that simulates a turbine setup. We power it up with a 120 VAC supply and monitor the boot sequence. We then connect a signal generator to the MPU input to simulate speed feedback, ramping it from 0 to 4000 Hz to verify the speed PID loop responds correctly. We check that the 24 VDC actuator output changes proportionally.
- Electrical Parameter Test: Using a calibrated multimeter, we check the continuity of all contact inputs and the operation of all Form-C relay outputs. We also inject a 12 mA signal into an analog input and measure the controller’s reading to verify the 4-20 mA scaling is accurate.
- Firmware Verification: We enter the service level password and read the firmware version from the controller’s memory. We document this version number, as it’s critical for compatibility with your existing configuration files and communication protocols.
- Final QC & Packaging: After passing all tests, the module is cleared by QC. We seal it in an anti-static bag, pack it with bubble wrap in a sturdy box, and apply a “QC Passed” label with the test date.
WOODWARD 8200-1302
Common Replacement Pitfalls
These are the mistakes we see time and again in the field. Paying attention to these details will save you from a lot of trouble.
- Configuration Upload Failure: This is the most common headache. You install the new 8200-1302, power it up, and it’s running factory default settings. ❗ Always have a backup of your configuration on a laptop or memory card before you swap the unit. Restoring the setup is straightforward, but re-programming all your setpoints and logic from scratch is a nightmare you can easily avoid.
- MPU Wiring Polarity: The magnetic pickup wires can be swapped. The 505 can be configured for either polarity, but if you just drop in a new unit, it might be set to the opposite of your old one. If the governor shows speed but won’t control, check the MPU polarity setting in the I/O configuration menu before you start rewiring the terminals.
- Actuator Current Mismatch: The 8200-1302 provides a 24 VDC output rated for 2.0 A. If your steam valve actuator draws more than this, you need an external amplifier. Trying to drive a high-current actuator directly from the governor will overload the output stage and can cause a shutdown. Check your actuator’s nameplate.
- Contact Input Logic: The contact inputs can be configured as normally open or normally closed. If your emergency stop circuit is wired as normally closed but the new governor is configured for normally open, the turbine will see a continuous stop command. ❗ Take a photo of the I/O configuration screen on the old unit before you remove it. This simple step catches 80% of logic-related startup issues.
- Ignoring the Event Recorder: The 505 has a built-in event recorder that logs the last 50 alarms and status changes. If the turbine tripped and you don’t know why, the answer is almost always in there. It’s the first place you should look before blaming the new hardware.
FAQ
Can I just swap this in directly for my old 505 governor?
Physically and electrically, yes. The 8200-1302 is a direct replacement for older 505 models with the same I/O configuration. However, it will come with a default factory configuration. You must upload your saved configuration file to the new unit for it to work with your specific turbine setup. If you don’t have a backup, you’ll need to reprogram all your parameters manually.
My old unit is a 505-61302. Is this the same thing?
Yes, it is. Woodward updated their part numbering system a while back. The 8200-1302 is the current part number for the 505-61302. It’s the exact same hardware, just with a new label. You can swap them directly.
Does this come with the programming software?
No, the 8200-1302 module itself does not include the Woodward 505 Configuration Software. You need to source that separately. However, you can perform basic setup and monitoring directly from the keypad on the front of the unit.
What’s the first thing I should check if the turbine won’t start after installation?
Check the event recorder. It will tell you exactly why the start sequence was aborted. It’s usually something simple like a contact input (e.g., “Lube Oil Pressure OK”) not being satisfied. The event log will point you right to the problem.
Is this a new or used part?
This is a New Original (New Surplus) part. It is a genuine Woodward 8200-1302 that was never installed in an operating turbine. It is not a used or refurbished unit. It comes in its original or approved anti-static packaging.
