Product Introduction
The WOODWARD 5466-409-70653-70070653-09 is the central processing unit for the NetCon 5000 control platform. It’s the brain responsible for executing control logic, managing I/O, and ensuring the stable operation of turbines and generators. When this module fails, the entire control system goes down.
This control module is built for deterministic, real-time performance. It features a 100 MHz processor and a dedicated I/O structure with 32 digital inputs and 16 digital outputs. This hardware foundation allows it to handle complex control algorithms with a scan time fast enough to protect sensitive rotating equipment from damage.
Key Technical Specifications
| Specification | Detail |
|---|---|
| Product Model | 5466-409-70653-70070653-09 |
| Manufacturer | WOODWARD |
| Product Type | Control Module |
| Compatible System | NetCon 5000 |
| Processor Speed | 100 MHz |
| Digital Inputs | 32 channels |
| Digital Outputs | 16 channels |
| Analog Inputs | 0 (requires separate I/O modules) |
| Analog Outputs | 0 (requires separate I/O modules) |
| Communication | RS-232, RS-485, Ethernet (system dependent) |
| Mounting | DIN rail or panel mount (system dependent) |
Compatibility & Replacement Matrix
- NetCon 5000 Base Unit → 5466-409-70653-70070653-09 : Direct — This specific part number is a configured version of the NetCon 5000 control module. It is the direct replacement for other NetCon 5000 CPU modules, but the I/O configuration is fixed by the part number.
Quality Inspection & SOP Transparency
We don’t just check if the LEDs light up. We verify the module can execute logic, which is its entire purpose.
- Incoming Inspection: We verify the Woodward part number and serial number against our database to flag any known counterfeits. The unit is then visually inspected for physical damage, with special attention to the I/O connectors and any signs of overheating.
- Live Functional Test: The module is installed in a NetCon 5000 test rack. We power it up and monitor the boot sequence, confirming the status LEDs follow the correct pattern. A solid green ‘RUN’ LED is what we’re looking for, not a flashing amber fault code.
- I/O Simulation: We use a signal generator to simulate field inputs on all 32 digital input channels. We then monitor the module’s logic solver to ensure it reads each input state change correctly. Next, we force the 16 digital outputs on and off, measuring the voltage at the terminals with a Fluke 115 multimeter to confirm they can source/sink current as specified.
- Firmware Verification: The firmware version is read directly from the module. For the NetCon 5000 platform, we ensure it’s compatible with the major software revisions used in the field. A mismatch here can prevent the control program from downloading.
- Final QC & Packaging: After passing all tests, the module is logged, sealed in an anti-static bag, and packaged for shipping. A QC Passed label with the test date is included.

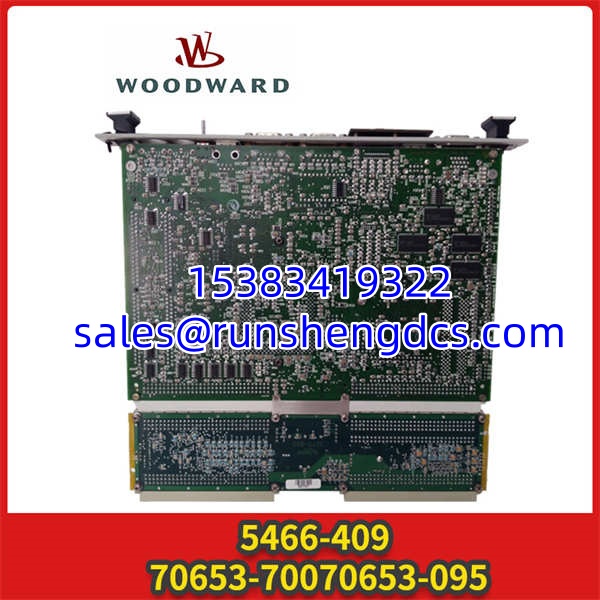

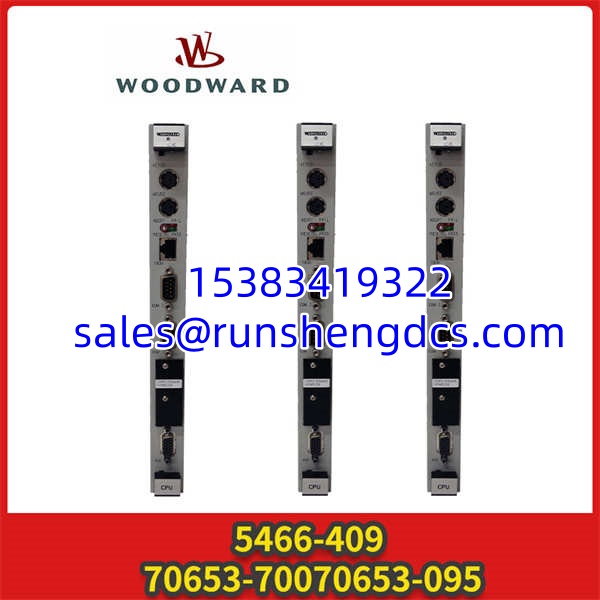

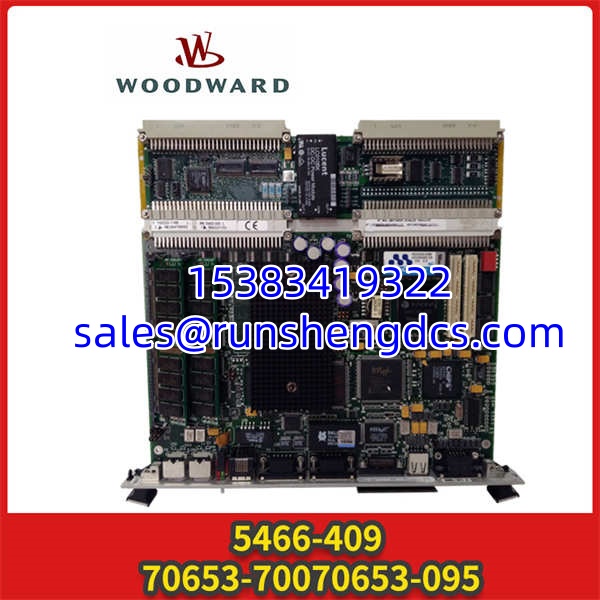

WOODWARD 5466-409-70653-70070653-09
Common Replacement Pitfalls
- Firmware Revision Mismatch: This is the most common headache. A new 5466-409-70653-70070653-09 might ship with a newer firmware version than your existing NetCon system expects. The programmer software may fail to connect, or the control logic might not download. Always check your system’s firmware level before ordering.
- I/O Configuration Lock: This module’s part number defines its I/O configuration. You can’t just swap it with any other NetCon 5000 CPU. The replacement must have the exact same I/O count (32 DI, 16 DO). A different configuration will cause an I/O mismatch fault on startup. ❗ Double-check the full part number on the label before you order.
- Control Program Download: It’s not plug-and-play. After the physical swap, the control program must be downloaded from your engineering workstation to the new module. If you don’t have a current backup of the logic, you’re in for a very long day of reprogramming.
- Battery-Backed Memory: The module uses a battery to maintain its RAM during a power outage. If the replacement has been sitting on a shelf for years, that battery could be dead. This means the module will power up with a blank memory, requiring a full program download.
FAQ
Can I just swap this in directly?
Physically, yes. Logically, no. You can pull the old one and plug the new one in, but it will be a blank slate. You must download the control program from your engineering workstation for the turbine to operate. It’s a hardware replacement that requires a software step.
What’s the actual difference between this and other NetCon 5000 modules?
The NetCon 5000 is a platform. The base hardware is similar, but the specific part number, like 5466-409-70653-70070653-09, defines the I/O configuration. This one has 32 digital inputs and 16 digital outputs. Another part number might have analog inputs instead. They are not interchangeable.
My NetCon controller is showing a CPU fault. Could it be this module?
It could be, but don’t assume it’s the card. Here is the order I check things:
- Power: Is the 24VDC supply stable and within tolerance?
- Program: Was there a recent change to the logic that caused a runtime error?
- I/O: Is a shorted field device causing the CPU to fault? Disconnect the I/O wiring and see if the fault clears.
- Module: If all else checks out, then suspect the 5466-409-70653-70070653-09 itself.
Does this module come with the terminal blocks?
No. The 5466-409-70653-70070653-09 is just the control module. The terminal blocks for wiring field signals are part of the NetCon 5000 base or an adjacent I/O module and are not supplied with this spare part.
What is the lead time if you don’t have it in stock?
We typically hold stock of these, but if we are out, the lead time for a new original unit from Woodward can be 10-14 weeks. It’s always best to check availability with us directly before your scheduled maintenance window.
