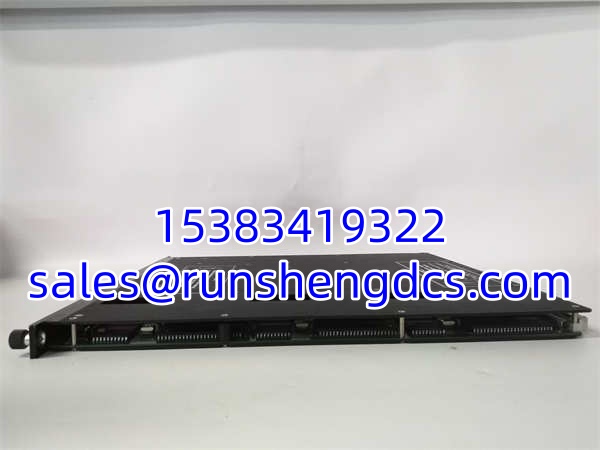

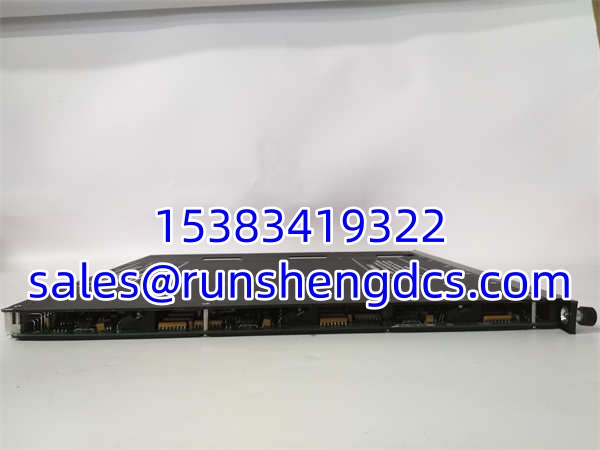

Triconex 3805E | Tricon 8‑Channel TMR Analog Output Module, Discontinued SIS Spare

Description

Key Technical Specifications

• Channel count: 8 analog output points
• Signal range: 4–20 mA, +6% overrange (0–21.2 mA)
• Resolution: 12 bits
• Typical accuracy: <0.25% FSR across 0–60 °C
• Architecture: Triple Modular Redundant, per‑channel 2oo3 voting
• Loop power: External 24 VDC nominal; max continuous withstand +42.5 VDC
• Maximum load: 750 Ω at 20 mA
• Operating temperature: 0 °C to +60 °C
• Storage temperature: −40 °C to +85 °C
• Humidity: 5–95% non‑condensing
• Backplane bus: Tricon proprietary TriBus
• Safety compliance: IEC 61508 SIL 3
• Typical MTBF: 287,000 hours at 40 °C ambient
• Weight: 2.14 kg

Product Introduction

Plants running older Tricon SIS hate this failure mode. One AO channel drifts mid‑run, shifting a control valve and forcing operators into manual intervention. No new factory builds exist, and migration timelines often stretch over multiple outages. This TMR analog output module receives digital setpoints from Tricon main processors, runs three independent signal paths, and outputs a single voted 4–20 mA value to valve positioners and dampers. It does not execute safety logic locally; voting happens across its three internal slices synchronized over TriBus.

Shelf‑aged surplus units commonly show calibration shift from dry electrolytic capacitors. Built‑in diagnostics flag open loops and shorted outputs before they create unplanned trips. Within rated temperature limits, channel settling time sits below 2 ms. Bottom line — it works, but run multi‑point calibration after rack installation.

TRICONEX 3805E

QA/QC Transparency SOP

1. Intake & Origin Verification. Cross‑reference serial number against source documentation. Inspect PCB for bulging capacitors, burn marks, or corroded edge connector pins. Save label and board photos for traceability. Reject units showing liquid contamination.
2. Live Functional Testing (Comms, I/O, Load). Seat module in Tricon test rack with matched processor triplet. Apply backplane power. Step each channel through 4 mA, 12 mA, 20 mA setpoints into calibrated resistive loads. Confirm fault flags trigger on simulated short‑circuit and open‑loop conditions. Maintain test run for minimum 4 hours.
3. Electrical Parameter Tests (Megger, Continuity). De‑energize rack. Run 500 V Megger between field wiring terminals and chassis ground. Insulation resistance must exceed 100 MΩ. Verify each signal path continuity with a Fluke 87V.
4. Firmware/Config Verification (Readout & Backup). Read onboard slice firmware over TriBus. Archive binary firmware offline. Flag revisions known to cause voting desync; cross‑check against site’s system firmware matrix.
5. Final QC & Anti‑Static Packaging. Recheck LED status indicators and connector retention. Place module inside conductive ESD bag, add foam edge protection, pack into rigid carton. Attach unique test report ID to outer packaging.

Field Engineer Gotchas

• Firmware Rev Mismatch. Risk: Mismatched firmware across the three internal slices breaks voting. Outputs freeze or jump randomly without high‑priority alarms. Solution: All three slices on the same 3805E must carry identical firmware. One maintenance crew swapped a module and skipped revision check; they spent four hours chasing erratic valve movement.
• Common‑return wiring trap. Risk: All 8 channels share a single return. Cross‑talk and ground noise spread across every output if return wire resistance rises. Solution: Run dedicated heavy‑gauge return conductor, avoid daisy‑chaining returns between field devices.
• ESD during hot‑swap. Risk: Tricon permits hot replacement, but static discharge can damage one slice silently. The module keeps running on the other two slices, leaving a single‑fault condition hidden until a second failure hits. Solution: Ground wrist strap to rack chassis before touching the module.
• Excessive loop resistance. Risk: Loop resistance over 750 Ω prevents the module from reaching 20 mA. Valve never hits full stroke, and diagnostics sometimes miss the condition. Solution: Measure total loop resistance before energizing each channel.

TRICONEX 3805E

Application Scenarios

Refinery hydrotreater reactor pressure control requires voted 4–20mA outputs for pressure‑letdown valves. This module delivers SIL3 compliant modulation while isolating safety action from DCS commands. Offshore platform ESD‑linked fuel gas valves use 3805E outputs. TMR voting prevents spurious valve movement from single internal hardware faults. Coal‑fired boiler burner management systems deploy these AO modules for air‑fuel ratio dampers, where drift creates unsafe combustion conditions.

Case study: A 90,000 bpd refinery had one channel drifting slowly upward over 2–3 days. Technicians replaced the valve positioner twice with no improvement. Bench testing found partial degradation on one slice’s reference voltage circuit. Module replacement resolved drift; no loop wiring changes needed.

FAQ

Q: Does Triconex 3805E support hot‑swap? A: Hot insertion and removal are allowed by Tricon chassis design. The remaining slices maintain output voting during swap. ESD risk remains high; use proper grounding and plan swaps during low‑risk operating windows.

Q: My Tricon system runs Tricon V10.1. Will this drop in? A: Compatibility depends on the module’s slice firmware. Some older 3805E firmware builds fail to sync with V10.1 hosts. Request firmware revision before purchase. Verify with OEM datasheet before installation.

Q: Are channels galvanically isolated from each other? A: No. This is common‑return, DC‑coupled design. All 8 outputs share one return path. Do not mix loops powered from separate isolated supplies.

Q: What lead time applies for tested surplus stock? A: Pre‑calibrated, burn‑in tested units ship 2–5 business days. Units needing capacitor rework and full recalibration take 10–14 days. No new factory production exists.

Q: Do refurbished units come with calibration certificates? A: Every unit passes multi‑point 4–20mA calibration during QC, and a test record ships with each module. Site functional safety testing is still mandatory per plant SIS procedures.

Q: Can 3805E be used as a digital output module? A: No. It is an analog‑only AO card. It cannot switch discrete digital field circuits.

Q: What happens if one internal slice fails? A: The remaining two slices continue voting, and the module logs a fault. The system stays in SIL3 mode, but you must schedule replacement before a second fault occurs.
