Description
Key Technical Specifications
- Architecture: Triple Modular Redundancy (TMR)
- Input Channels: 32 Differential, DC-Coupled
- Input Voltage: 0-5V DC (+6%) / 24V DC Nominal
- Resolution: 12-bit or 14-bit Programmable
- Update Rate: 10 ms
- Accuracy: < 0.15% Full Scale Range (0°C to 60°C)
- Isolation: 1500Vrms (Field to Logic), 3000Vrms Current
- Input Overrange Protection: 150 VDC / 115 VAC Continuous
- Diagnostics: PASS, FAULT, ACTIVE, FIELD LEDs
- Safety Integrity: SIL 3 (IEC 61508)
- Mounting: Tricon Backplane Slot
- Hot-Swap: Yes (Without System Shutdown)
Product Introduction
Safety system trips are usually blamed on the CPU, but 80% of the time, the fault originates at the field input card. The TRICONEX 3721 is a 32-channel digital input module that uses Triple Modular Redundancy to ensure a single component failure never causes a false plant shutdown. It belongs in the heart of your Emergency Shutdown (ESD) or Fire & Gas system.
This module’s 10 ms update rate and <0.15% accuracy mean you get deterministic, high-fidelity signal processing even in electrically noisy environments. Honestly, the real value here is the TMR voting logic; two channels can fail, and the system still operates safely. If your current inputs are showing intermittent field faults, don’t just blame the wiring—check the 3721’s diagnostic LEDs first.
Troubleshooting Quick Reference
| Fault | Probable Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| FAULT LED Solid | Internal Hardware Failure | 90% | Check event log in TriStation | Replace module; do not attempt field repair |
| FIELD LED Off | No Field Power or Wire Break | 85% | Measure 24V at terminal block | Verify field power supply; check fuse |
| Intermittent ACTIVE | Loose Terminal or EMI | 70% | Retorque screws; check shielding | Verify ground continuity; inspect cable |
| Channel Stuck ON | Short to 24V in Field | 60% | Disconnect field wire; measure | Isolate field wiring; check junction box |
| TMR Mismatch | One Channel Failed | 50% | Review TMR diagnostic status | Module will auto-vote; schedule replacement |
| Comm Error | Backplane Connection | 40% | Reseat module firmly | Inspect backplane pins for corrosion |
Application Scenarios & Pain Points
- Offshore Oil Rigs: Salt spray and humidity corrode terminal blocks, causing high-resistance connections that mimic failing field devices.
- Refinery ESD Systems: High EMI from nearby VFDs couples into unshielded input wiring, triggering false safety trips.
- LNG Plants: Extreme cold (-40°C) can cause plastic connectors to become brittle and crack during maintenance.
Real-World Case: Engineer at a Gulf Coast refinery faced nuisance compressor trips. The SCADA showed the pressure switch opening, but the field tech swore the switch was fine. Swapped the 3721 module. Trips stopped. Turns out, moisture had breached the module’s conformal coating, causing an internal intermittent short. The TMR logic was masking the degradation until two channels drifted out of tolerance.

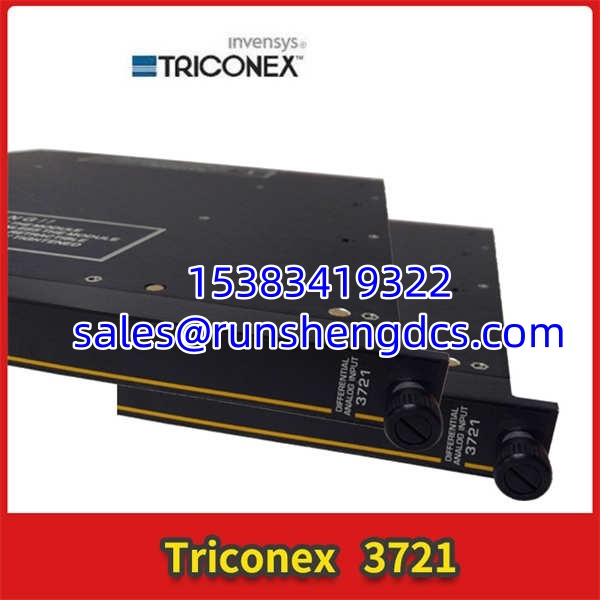

TRICONEX 3721
Compatible Replacement Models
- ✅ Drop-in Replacement: TRICONEX 3721 (Exact Match). The 3721 is the standard 32-ch differential input. Cost:
(Safety premium applies).
- ⚠️ Software Compatible: TRICONEX 3720 (64-ch Single-Ended). Requires re-mapping I/O in TriStation 1131. Labor: +4 hours for reconfiguration and loop testing.
- ❌ Hardware Incompatible: TRICONEX 3704E (Analog Input). Different signal type, different slot keying. DO NOT FORCE. Will not fit and will damage backplane.
