Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product ID | 3481 |
| System Family | Triconex Tricon SIS |
| Module Type | Tricon Communication Module (TCM) |
| Ethernet Ports | 2 × copper 10/100 Mbps (NET 1 / NET 2) |
| Serial Ports | 4 × RS-232/RS-422/RS-485 type, up to 115.2 kbps each |
| Debug Port | 1 × Triconex service/debug port |
| Port Isolation | 500 VDC port isolation |
| Supported Protocols | TriStation, Modbus RTU/TCP, TCP/IP, UDP/IP, ICMP, SNTP, TSAA, Trimble GPS, Jet Direct |
| Modbus Capacity | Up to 32 Modbus masters/slaves per Tricon system |
| TCM Limit | Up to 4 TCMs per Tricon system; occupies 2 logical slots; different TCM types should not be mixed in the same logical slot |
| Compatibility | Tricon v10.0 and above; integrates with 3008 CPU and standard Tricon I/O |
| Hot-Swap | TCM modules do not support hot-standby; faulty units can be replaced online per OEM procedures |
Product Introduction
In a Tricon SIS rack, the CPU handles the safety logic, but the 3481 TCM is what lets that logic talk to the outside world. Without it, the Tricon can still trip safely, but it becomes difficult to integrate with DCS historians, operator stations, Modbus devices, or network time servers.
The 3481 is a Tricon Communication Module designed for copper Ethernet and serial connectivity. It supports TriStation engineering access, Modbus master/sl communication, TCP/IP peer-to-peer links, SNTP time synchronization, and Trimble GPS input through serial port 1. It is commonly used in ESD, F&G, BMS, HIPPS, and turbine/compressor protection systems where the Tricon must exchange data with a DCS, SCADA, or third-party serial devices.

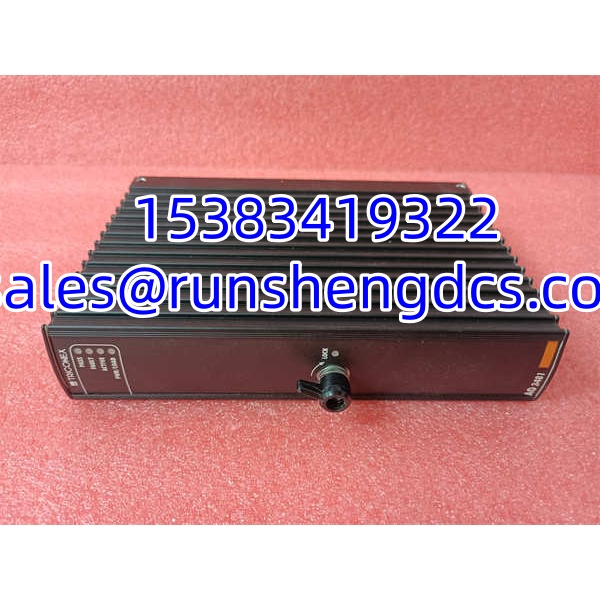

Triconex 3481
QA/QC Transparency SOP
- Intake & Label Verification: Confirm full part number 3481, serial number, and hardware revision. Reject units with bent backplane pins, damaged Ethernet/serial connectors, corrosion, or mismatched labels.
- Mechanical Inspection: Verify backplane connector integrity, module latching mechanism, port condition, and PCB coating.
- Power-Up & Diagnostics: Install in a Tricon-compatible test rack. Confirm module recognition, LED status, and absence of internal fault codes.
- Communication Testing: Test Ethernet link on NET 1/NET 2. Verify serial port communication with a known device or loopback. Confirm TriStation connectivity if licensed.
- Protocol Validation: Test Modbus TCP/RTU response, TCP/IP ping, and SNTP/GPS time sync as configured. Compare against the target Tricon system communication map.
- Configuration Verification: Review TriStation project for TCM slot assignment, IP addressing, serial port mapping, and protocol enablement. Back up the project before changes.
- Final QC & Packaging: Record firmware revision, IP/serial configuration, and test results. Pack in ESD-safe, anti-static packaging with rigid protection.
Field Engineer Gotchas
- TCM slot rules: A Tricon system supports up to 4 TCMs, but each occupies 2 logical slots. Mixing different TCM models in the same logical slot can cause configuration faults.
- 3481 vs. 4351/4352/4353: The 3481 is a TCM with copper 10/100 Mbps Ethernet and serial ports. Other Tricon communication modules have different port types, speeds, or protocol capabilities. Do not substitute by form factor alone.
- IP address conflicts: If the replacement 3481 is loaded with a different IP configuration, DCS/SCADA Modbus TCP links may fail even though the module appears healthy. Always verify IP, subnet, and gateway settings.
- Serial port assignment matters: Serial port 1 supports Modbus or Trimble GPS; serial port 4 supports Modbus or TriStation. Misassigning these in TriStation will break communication without generating an obvious hardware fault.
- Online replacement is not risk-free: Although Tricon supports online module replacement, removing a TCM can interrupt Modbus, TriStation, or time-sync sessions. Coordinate with operations and confirm redundancy before swapping.
- Legacy platform risk: The 3481 belongs to the classic Tricon generation. For new systems or major upgrades, evaluate Tricon CX or current Schneider Triconex offerings instead of expanding legacy TCM deployments.
Triconex 3481
Application Scenarios
- ESD-to-DCS data exchange: Sends trip status, permissive signals, and process alarms from Tricon to a DCS via Modbus TCP.
- Serial device integration: Connects legacy Modbus RTU analyzers, gas detectors, or serial HMIs through the 3481 serial ports.
- System-wide time synchronization: Receives Trimble GPS time on serial port 1 or SNTP over Ethernet to keep Tricon event records aligned with plant historians.
- TriStation engineering access: Provides a network path for engineers to monitor, troubleshoot, and download Tricon logic without direct serial connection.
- F&G system communications: Uploads fire and gas alarm states to operator stations while maintaining independent safety logic execution.
FAQ
What is the Triconex 3481?
It is a Tricon Communication Module (TCM) that provides Ethernet and serial connectivity for the Tricon SIS controller.
Does it support Modbus?
Yes. It supports Modbus RTU over serial and Modbus TCP over Ethernet.
Can it replace a 4351 or 4353 TCM?
Not automatically. All are Tricon TCMs, but port types, speeds, and supported features differ. Verify the TriStation configuration and slot rules before substitution.
Is hot-swap supported?
The TCM can be replaced online in a running Tricon system, but it does not provide hot-standby redundancy. Communication sessions may be interrupted during replacement.
What software is used to configure it?
TriStation is used for Tricon system configuration, including TCM communication settings.
Is the 3481 still in production?
The 3481 is a legacy Tricon module. Availability is typically through surplus or refurbished channels. Confirm current status with Schneider Electric or an authorized distributor before planning long-term spares.
