Description
Key Technical Specifications
- Model Number: 3481 (AO3481)
- Manufacturer: TRICONEX (Schneider Electric)
- Series/System: Tricon Safety Instrumented System (SIS)
- Module Type: 4-Channel Analog Output Module
- Output Signal: 4-20 mA (Sourcing)
- Architecture: Triple Modular Redundant (TMR)
- Safety Certification: IEC 61508 SIL 3 (System Level)
- Loopback Circuit: Yes, per channel for independent validation
- Power Supply: Powered via Tricon chassis backplane
- Termination: Dedicated External Termination Panel (ETP)
- Hot Swap: Fully supported for online replacement
Functional Role & Application Analysis
The TRICONEX 3481 is the analog output workhorse for the Tricon safety platform. In safety instrumented systems, sending a single analog signal to a final control element like an ESD valve is unacceptable. The 3481 solves this by providing TMR-protected 4-20mA outputs that drive safety-critical actuators with deterministic response times. Each output channel includes a loopback circuit that independently validates the relay switching operation regardless of whether a load is present.
Engineers deploy this module in high-integrity safety applications:
- Emergency Shutdown (ESD) Valves: Driving final control elements that must close reliably during process upsets, with fail-safe behavior configured in TriStation.
- Burner Management Systems: Controlling fuel flow valves in combustion systems where precise analog positioning is critical for safe operation.
- Compressor Anti-Surge Control: Providing analog outputs to anti-surge valves that protect rotating equipment from catastrophic damage.
- Fire & Gas Damper Control: Actuating ventilation dampers and flare controls in petrochemical facilities where validated analog output is required.
Our Quality Standard & Testing Process
An analog output module with a marginal channel can cause a safety valve to fail to close when it matters most. We test every 3481 to verify all four TMR-protected output channels operate correctly under load.
- Visual & Component Inspection: We inspect the backplane connector, ETP interface pins, and internal circuitry for physical damage, corrosion, or thermal stress on output drivers.
- Live System Test: The module is installed in a Tricon test chassis and powered via backplane. We run a continuous burn-in to verify stable operation and diagnostic LED functionality.
- Full-Function Diagnostics: We source 4-20mA signals on all four channels, verify loopback circuit validation, and confirm fail-safe output behavior. We test hot-swap capability and check for ground loop susceptibility.
- Warranty Backing: Only modules that pass all TMR output and loopback diagnostics ship with our 12-month warranty. Any module with a single marginal channel is rejected.

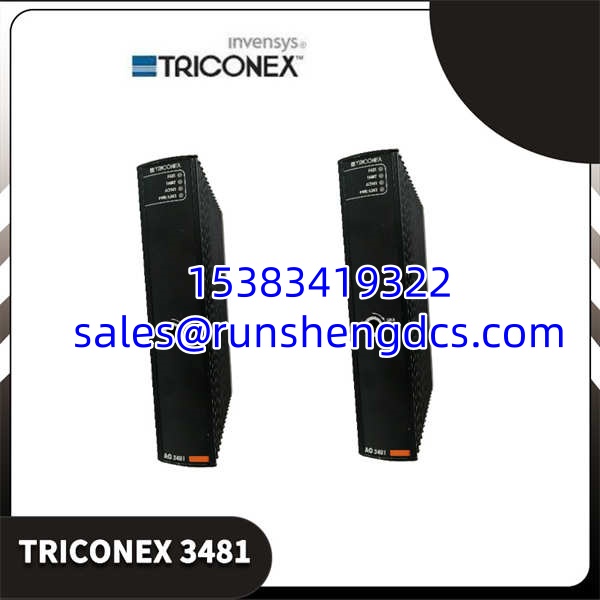

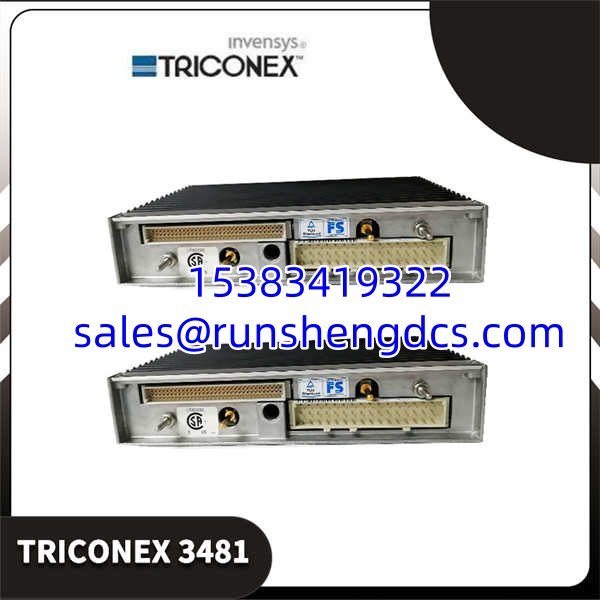

TRICONEX 3481
Compatibility & Migration Paths
The 3481 has specific termination and wiring requirements. Getting this wrong can cause signal distortion or module damage. Verify these points before ordering:
- Termination Assembly: The 3481 requires a dedicated AO termination assembly and I/O cables. Do not use generic wiring. Verify your existing ETP matches this module’s pinout.
- Shielded Twisted Pair: You must use shielded twisted-pair cabling for all 4-20mA current loops. Route these cables separately from high-voltage runs to prevent noise injection.
- Grounding: Maintain single-point grounding for cable shields. Ground loops will distort current measurements and cause erratic output behavior.
- TriStation Configuration: Verify fail-safe output behavior is correctly configured in TriStation 1131. Confirm load resistance and loop power budget before commissioning.
- Get Expert Help: Unsure about your termination assembly or loop power requirements? Contact our technical team with your chassis layout for a free compatibility check.
