Description
Key Technical Specifications
- Brand: TRICONEX / Schneider Electric
- Model: 3401
- Module Type: Analog Input Module
- System Family: Tricon TMR Safety System
- Signal Type: 4–20 mA analog input
- HART Support: HART over 4–20 mA, where supported by the installed module revision
- Channel Count: 16 channels
- Accuracy: Approximately ±0.1%
- Power Supply: 24 V DC ±10%
- Power Consumption: Max approx. 15 W per module
- Operating Temperature: -20°C to +70°C
- Dimensions / Weight: Approx. 140 mm H × 70 mm W × 180 mm D / 0.8 kg
- Installation: Tricon chassis / backplane-compatible I/O module
- Safety Context: Used in SIL 3-class Tricon safety systems; module-level certification depends on system configuration and OEM documentation
Product Introduction
TRICONEX 3401 is a Tricon analog input module used to bring 4–20 mA field signals into a Tricon TMR safety system. It is not a general-purpose PLC card. It belongs in Safety Instrumented Systems, ESD systems, fire-and-gas monitoring, burner management, and other applications where analog process variables must be read reliably and voted by the safety controller.
The practical value is field diagnostics plus safety-grade signal handling. With HART over 4–20 mA, maintenance teams can often pull transmitter diagnostics without breaking the process loop. That matters when a pressure, temperature, level, or flow transmitter starts drifting and you need to know whether the fault is in the field device, the wiring, or the safety I/O channel.
Troubleshooting Quick Reference
| Fault | Likely Cause | Quick Check |
|---|---|---|
| Channel reads 0 mA or under-range | Field wiring open, transmitter fault, or fuse issue | Measure current at the transmitter and at the module terminal |
| Channel reads over-range | Sensor wiring fault, short, or bad transmitter output | Check for shorts, loop supply, and transmitter health |
| Intermittent values | Loose terminal, shield/ground issue, or EMI | Tighten terminals; verify shield grounding; separate analog cables from power cables |
| HART not responding | Non-HART transmitter, wiring polarity, or module revision limit | Confirm transmitter is HART-enabled and loop current is above ~4 mA |
| Module fault LED active | Module, backplane contact, or configuration mismatch | Reseat module after lockout; check Tricon diagnostics |
| Wrong engineering units | Scaling, range, or HART mapping mismatch | Compare module config to the safety system project backup |

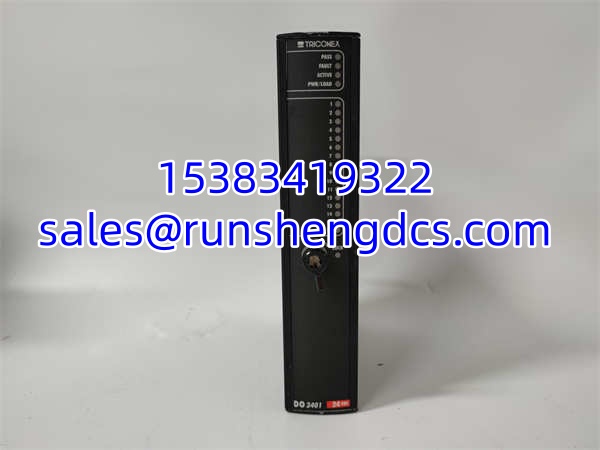

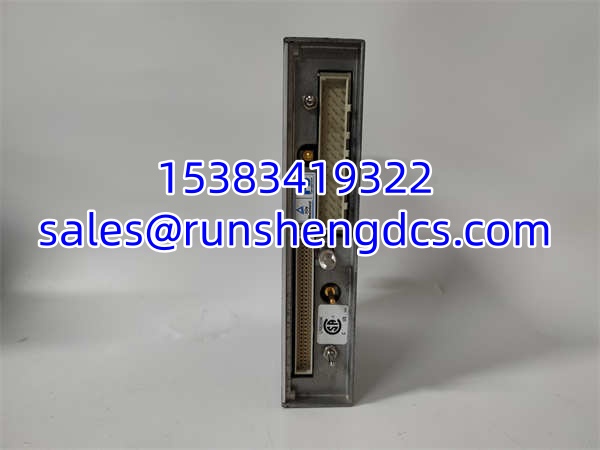

TRICONEX 3401
Application Scenarios & Pain Points
- Hydrocracker pressure monitoring
High vibration and temperature cycling can damage transmitter wiring and terminal connections. The pain point is intermittent analog faults that look like transmitter failures but may be module-side contact issues. - LNG tank level safety interlocks
Level transmitters must be trusted. The challenge is separating a real process alarm from a bad 4–20 mA loop, a failed HART response, or a misconfigured input range. - Flare gas recovery systems
Corrosive atmospheres attack terminal blocks and cable shields. Unstable analog inputs can force unnecessary shutdowns or mask real safety conditions. - Refinery ESD / SIS analog monitoring
Downtime windows are short. Replacing an analog input module is not just a physical swap; the replacement must match the Tricon chassis, firmware expectations, and safety system configuration.
